ST162L-BCPVFW (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 3SGEL
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

Click highlighted areas on diagram

diagram 55905A 55905A 55905A 55906A 55907A 55908A 55909A 55910 5593320040 87284 9048013015 9356715020 9356814512
Part # Description Qty Price
Common parts
55933-20040
90480-13015
93567-15020
93568-14512

(8508- )

Click highlighted areas on diagram

diagram 55910 55910B 55910B 9356715020
Part # Description Qty Price
Common parts
93567-15020

(8508- )

Click highlighted areas on diagram

diagram 87201 87201B 87211 87212 87214 87215 87215B 9015960125 9356855014 9356855014
Part # Description Qty Price
Common parts
90159-60125
93568-55014

(8508- )

Click highlighted areas on diagram

diagram 88625C 88625C 88625C 88894F 9017906032
Part # Description Qty Price
Common parts
90179-06032

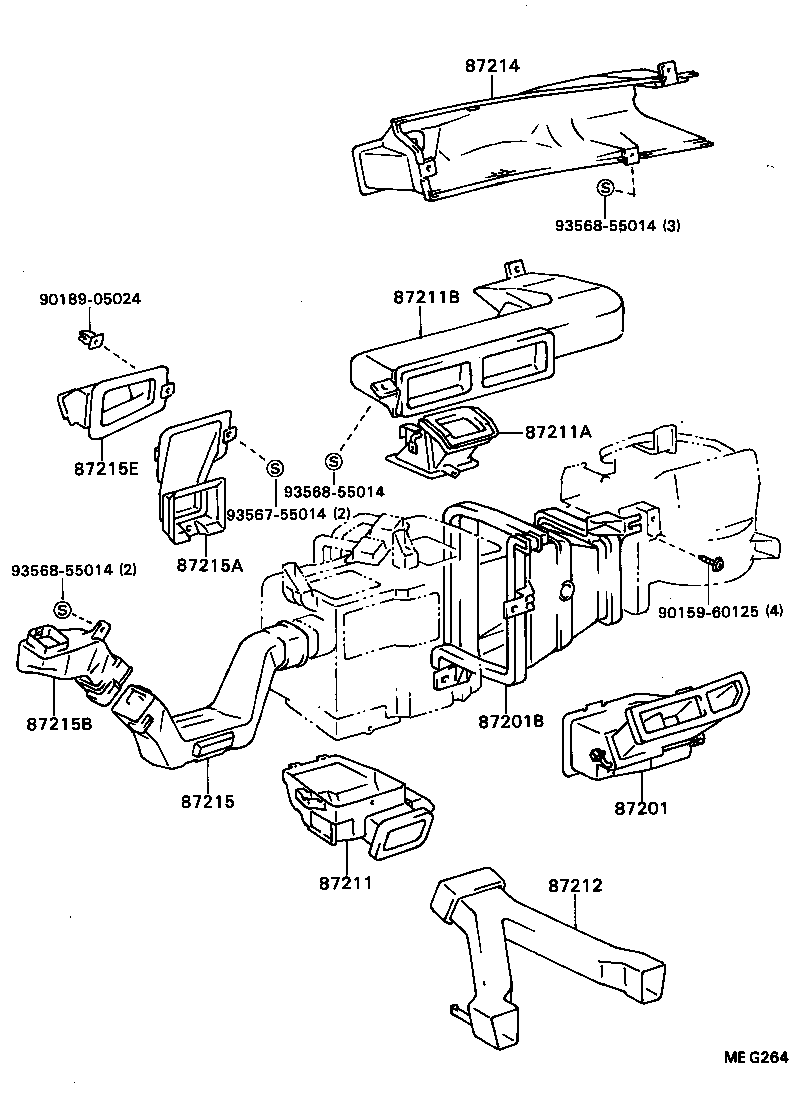

(8508- )LHD

Click highlighted areas on diagram

diagram 87201 87201B 87211 87211A 87211B 87212 87214 87215 87215A 87215B 87215E 9015960125 9018905024 9356755014 9356855014 9356855014 9356855014
Part # Description Qty Price
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-20170

AT160,ST162..LHD

 1
87201B - DUCT SUB-ASSY, AIR, NO.2
87220-20020

AT160,ST162..LHD

 1
87211 - DUCT, AIR, NO.1
87211-20100

AT160,ST162..LHD

 1
87211A - DUCT, AIR, NO.2
87201-20190

AT160,ST162..LHD

 1
87211B - DUCT, AIR, NO.3
55087-20070

AT160,ST162..LHD

 1
87212 - DUCT, AIR, REAR NO.1
87202-20020

AT160,ST162

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55086-20060

AT160,ST162..LHD

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55085-20070

ST162..LHD..(EUG,FRG)

W/COOLER

 1
55085-20080

AT160,ST162..LHD

 1
87215A - DUCT, AIR, SIDE NO.2 LH
55841-20060

AT160,ST162..LHD

 1
87215B - DUCT, AIR, SIDE NO.3 LH
55084-20120

AT160,ST162..LHD

 1
87215E - BOOT, SIDE VENTILATOR DUCT, LH
55863-20050

AT160,ST162..LHD

 1
Common parts
90159-60125
90189-05024
93567-55014
93568-55014

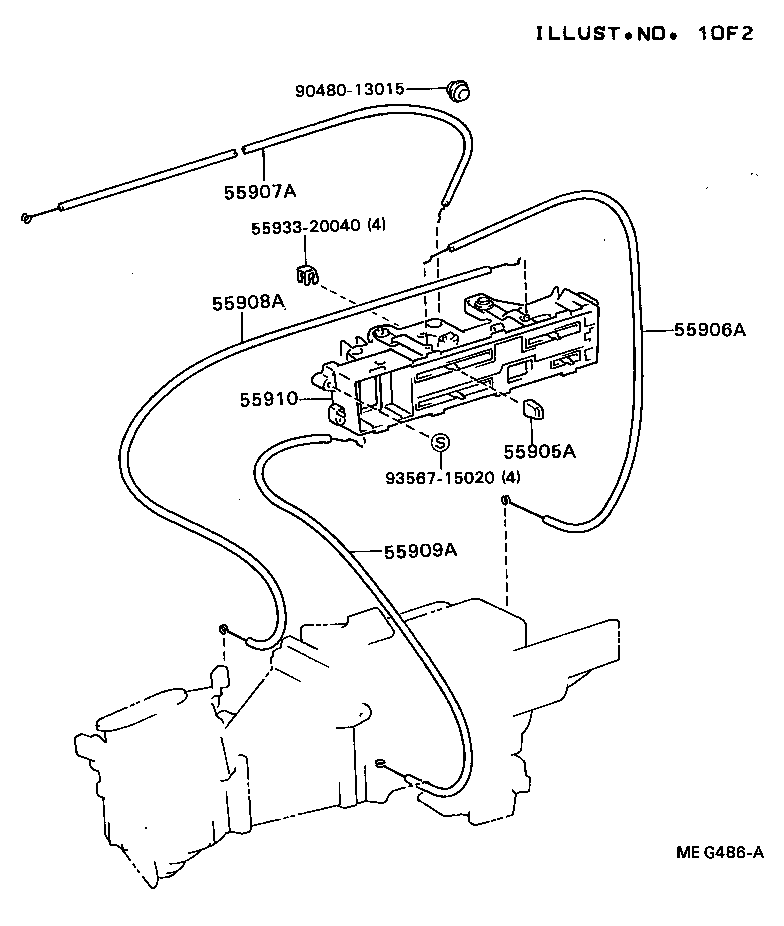

(8508- )

Click highlighted areas on diagram

diagram 55905A 55906A 55907A 55908A 55909A 55910 5593320040 9048013015 9356715020
Part # Description Qty Price
55905A - KNOB, HEATER CONTROL
55905-12070

AT160,ST162

 4
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-20230

AT160,ST162..LHD

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-20190

AT160,ST162..LHD

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-20110

AT160,ST162..LHD

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-20060

AT160,ST162..LHD

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-20390

AT160,ST162..LHD

 1
Common parts
55933-20040
90480-13015
93567-15020
