ST162L-BCPVFW (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 3SGEL
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

Click highlighted areas on diagram

diagram 85110 85160 85178 85178 85190 85190 85220 85220 85221 85221 9009900913 9009900913 9011906187 9011906187
Part # Description Qty Price
Common parts
90099-00913
90119-06187

(8508- )

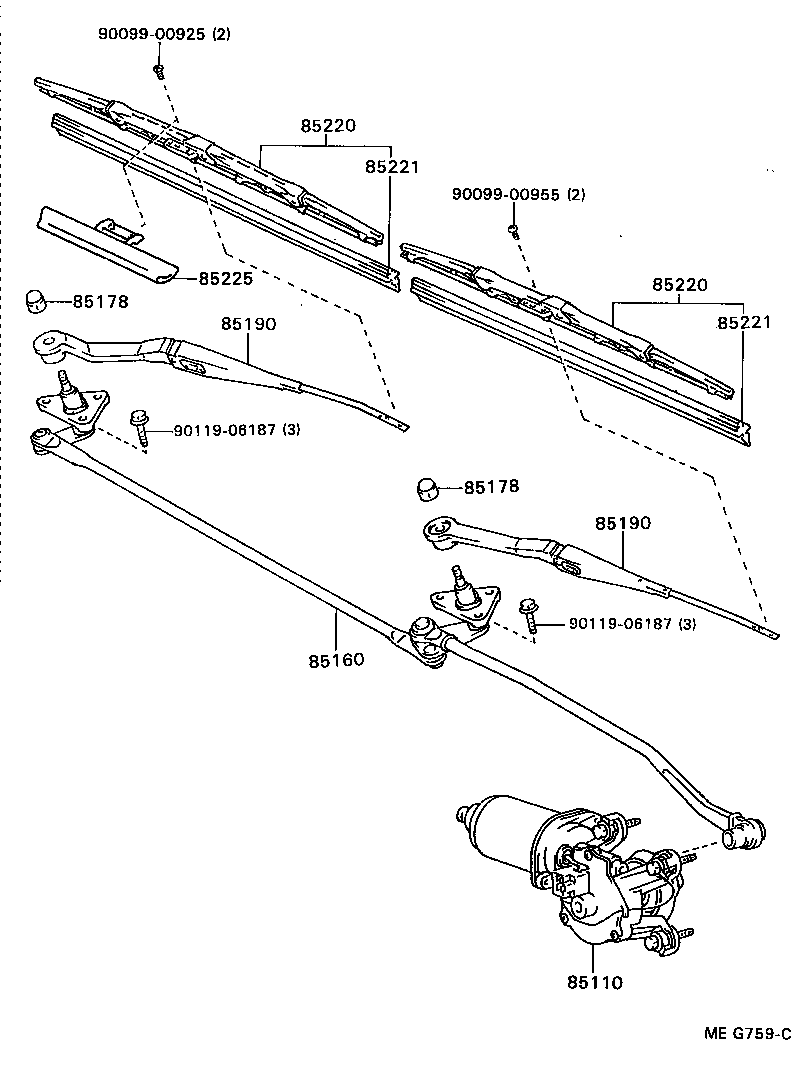

Click highlighted areas on diagram

diagram 85110 85160 85178 85178 85190 85190 85220 85220 85221 85221 85225 9009900925 9009900955 9011906187 9011906187
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-20240

AT160,ST162..LHD

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-20171

AT160,ST162..LHD

 1
85160-20170

AT160,ST162..LHD

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08033

AT160,ST162

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08033

AT160,ST162

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85210-20140

AT160,ST162..LHD

RH

 1
85190-20420

AT160,ST162..LHD

LH

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85210-20140

AT160,ST162..LHD

RH

 1
85190-20420

AT160,ST162..LHD

LH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-16340

AT160,ST162..LHD

RH

 1
85220-32460

AT160,ST162..LHD

LH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-16340

AT160,ST162..LHD

RH

 1
85220-32460

AT160,ST162..LHD

LH

 1
85221 - BLADE, WINDSHIELD WIPER
85221-30100

AT160,ST162..LHD

RH

 1
85221-32060

AT160,ST162..LHD

LH

 1
85221 - BLADE, WINDSHIELD WIPER
85221-30100

AT160,ST162..LHD

RH

 1
85221-32060

AT160,ST162..LHD

LH

 1
85225 - WING, WIPER BLADE
85225-20420

AT160,ST162..LHD

 1
Common parts
90099-00925
90099-00955
90119-06187
