ST162L-BCPVFW (1985)
Toyota Celica
(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 90099-00941 | ||||
| 90099-00953 | ||||
| 90099-00963 | ||||
| 93540-13014 | ||||
| 93567-55016 | ||||
(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90463-13003 | ||||
| Linked diagrams | ||||
| 8408 | ||||
(8508- )

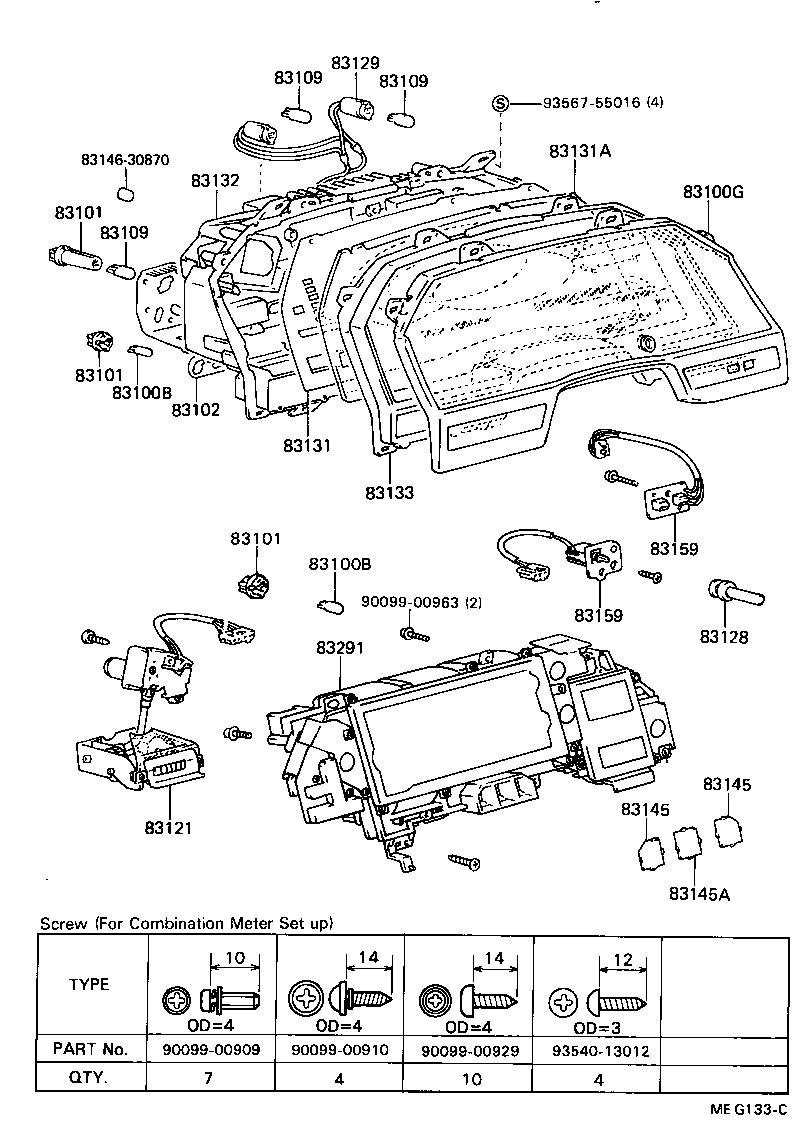

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 83146-30870 | ||||
| 90099-00910 | ||||
| 90099-00929 | ||||
| 93540-13012 | ||||
| 93567-55016 | ||||
(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AT160,ST162 12V 1.2W W/O SOCKET |
12 | ||
| 90981-11038 |
ST162..CP,LB 12V 5W,W/*DS |
4 | ||
| 99132-12034 |
AT160,ST162 12V 3.4W |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AT160,ST162 12V 1.2W W/O SOCKET |
12 | ||
| 90981-11038 |
ST162..CP,LB 12V 5W,W/*DS |
4 | ||
| 99132-12034 |
AT160,ST162 12V 3.4W |
4 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-1B150 |
AT160,ST162..LHD |
1 | ||
| 83138-1B050 |
ST162..(CP,LB)..LHD W/*DS |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AT160,ST162 BULB;12V 3.4W |
8 | ||
| 83101-12020 |
ST162..CP,LB BULB;12V 3.4W,W/*DS |
1 | ||
| 83101-20090 |
ST162..CP,LB BULB;12V 5W,W/*DS |
4 | ||
| 83101-14040 |
AT160,ST162 BULB;12V 1.4W |
12 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AT160,ST162 BULB;12V 3.4W |
8 | ||
| 83101-12020 |
ST162..CP,LB BULB;12V 3.4W,W/*DS |
1 | ||
| 83101-20090 |
ST162..CP,LB BULB;12V 5W,W/*DS |
4 | ||
| 83101-14040 |
AT160,ST162 BULB;12V 1.4W |
12 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AT160,ST162 BULB;12V 3.4W |
8 | ||
| 83101-12020 |
ST162..CP,LB BULB;12V 3.4W,W/*DS |
1 | ||
| 83101-20090 |
ST162..CP,LB BULB;12V 5W,W/*DS |
4 | ||
| 83101-14040 |
AT160,ST162 BULB;12V 1.4W |
12 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1J250 |
ST162..LHD..4FC |
1 | ||
| 83247-1D830 |
ST162..(CP,LB)..LHD W/*DS |
1 | ||
| 83247-1J700 |
ST162..LHD..4FC |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24040 |
ST162..CP,LB 12V1.4W W(GREEN CAP),W/*DS |
2 | ||
| 83109-24030 |
ST162..CP,LB 12V3.4W W(GREEN CAP),W/*DS |
1 | ||
| 83109-24030 |
AT160,ST162 12V3.4W W(GREEN CAP) |
4 | ||
| 83109-24020 |
AT160,ST162 12V3.4W W(GREEN CAP),W/O *DS |
4 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24040 |
ST162..CP,LB 12V1.4W W(GREEN CAP),W/*DS |
2 | ||
| 83109-24030 |
ST162..CP,LB 12V3.4W W(GREEN CAP),W/*DS |
1 | ||
| 83109-24030 |
AT160,ST162 12V3.4W W(GREEN CAP) |
4 | ||
| 83109-24020 |
AT160,ST162 12V3.4W W(GREEN CAP),W/O *DS |
4 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24040 |
ST162..CP,LB 12V1.4W W(GREEN CAP),W/*DS |
2 | ||
| 83109-24030 |
ST162..CP,LB 12V3.4W W(GREEN CAP),W/*DS |
1 | ||
| 83109-24030 |
AT160,ST162 12V3.4W W(GREEN CAP) |
4 | ||
| 83109-24020 |
AT160,ST162 12V3.4W W(GREEN CAP),W/O *DS |
4 | ||
| 83121 - COUNTER, TOTAL | ||||
| 83121-14190 |
ST162..(CP,LB)..LHD |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-14670 |
AT160,ST162 |
1 | ||
| 83128-14610 |
ST162..CP,LB W/*DS |
1 | ||
| 83129 - WIRE, METER | ||||
| 83129-14170 |
ST162..(CP,LB)..LHD |
1 | ||
| 83131 - DIAL, METER, NO.1 | ||||
| 83131-1J430 |
ST162..LHD..4FC |
1 | ||
| 83131A - DIAL, METER, NO.2 | ||||
| 83131-1J250 |
ST162..LHD..4FC |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1J270 |
ST162..LHD |
1 | ||
| 83132-1D340 |
ST162..LHD..4FC |
1 | ||
| 83132-1J290 |
ST162..LHD..4FC |
1 | ||
| 83132-1D200 |
ST162..LHD |
1 | ||
| 83132-1D890 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/*DS |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-1B490 |
AT160,ST162..LHD |
1 | ||
| 83133-1B310 |
ST162..(CP,LB)..LHD W/*DS |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-14170 |
ST162..CP,LB |
2 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-14170 |
ST162..CP,LB |
2 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-14190 |
ST162..CP,LB |
1 | ||
| 83159 - SWITCH, METER, NO.1 | ||||
| 83159-14130 |
ST162..CP,LB MILE/KM |
1 | ||
| 83159 - SWITCH, METER, NO.1 | ||||
| 83159-14130 |
ST162..CP,LB MILE/KM |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-20120 |
ST162..LHD..4FC |
1 | ||
| Common parts | ||||
| 83146-30870 | ||||
| 90099-00909 | ||||
| 90099-00910 | ||||
| 90099-00929 | ||||
| 90099-00963 | ||||
| 93540-13012 | ||||
| 93567-55016 | ||||
(8508- )

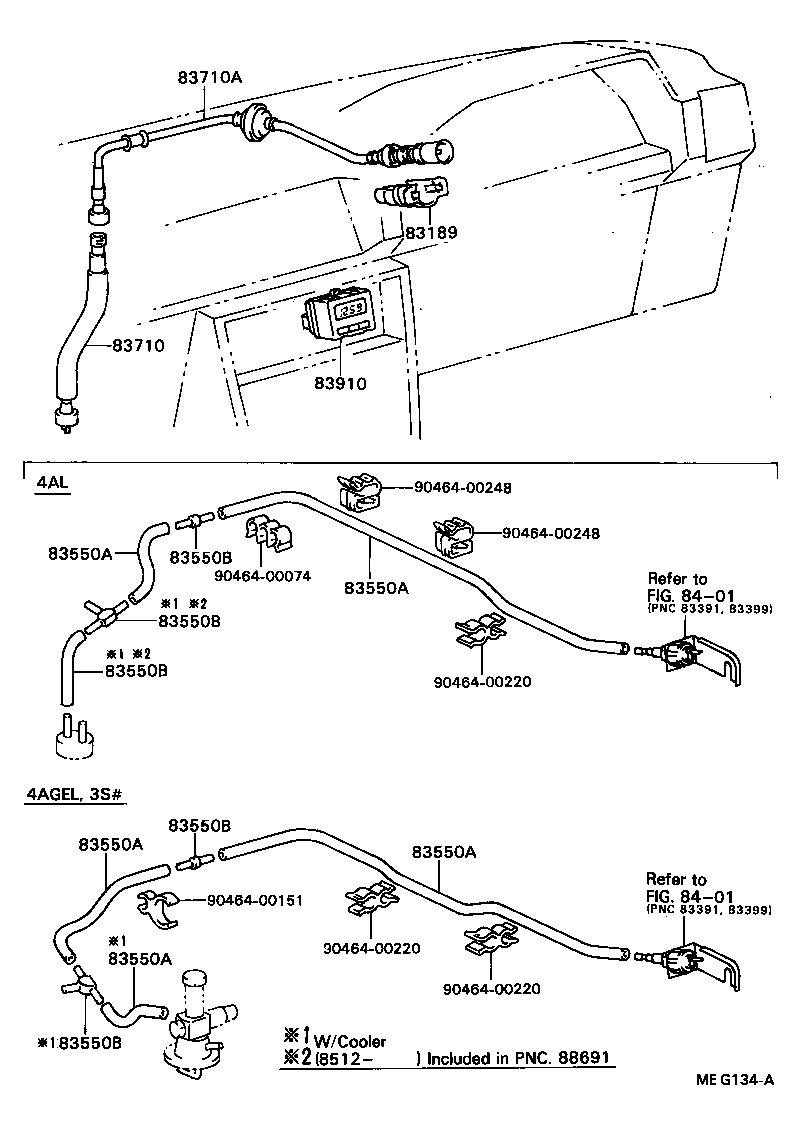

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
AT160,ST162 |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 95411-10030 |
ST162..LHD..(EUG,FRG) *H,L=170,MARK=#0 |
1 | ||
| 95411-10030 |
ST162..LHD *H,L=240,MARK=#0 |
1 | ||
| 95411-10060 |
ST162..LHD *H,L=600,MARK=#0 |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 95411-10030 |
ST162..LHD..(EUG,FRG) *H,L=170,MARK=#0 |
1 | ||
| 95411-10030 |
ST162..LHD *H,L=240,MARK=#0 |
1 | ||
| 95411-10060 |
ST162..LHD *H,L=600,MARK=#0 |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 95411-10030 |
ST162..LHD..(EUG,FRG) *H,L=170,MARK=#0 |
1 | ||
| 95411-10030 |
ST162..LHD *H,L=240,MARK=#0 |
1 | ||
| 95411-10060 |
ST162..LHD *H,L=600,MARK=#0 |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 95411-10030 |
ST162..LHD..(EUG,FRG) *H,L=170,MARK=#0 |
1 | ||
| 95411-10030 |
ST162..LHD *H,L=240,MARK=#0 |
1 | ||
| 95411-10060 |
ST162..LHD *H,L=600,MARK=#0 |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 95411-10030 |
ST162..LHD..(EUG,FRG) *H,L=170,MARK=#0 |
1 | ||
| 95411-10030 |
ST162..LHD *H,L=240,MARK=#0 |
1 | ||
| 95411-10060 |
ST162..LHD *H,L=600,MARK=#0 |
1 | ||
| 83550B - UNION OR WAY, ED MONITOR GAGE | ||||
| 90412-05001 |
AT160,ST162..LHD 2 WAY |
1 | ||
| 90413-04001 |
ST162..LHD..(EUG,FRG) 3 WAY |
1 | ||
| 83550B - UNION OR WAY, ED MONITOR GAGE | ||||
| 90412-05001 |
AT160,ST162..LHD 2 WAY |
1 | ||
| 90413-04001 |
ST162..LHD..(EUG,FRG) 3 WAY |
1 | ||
| 83550B - UNION OR WAY, ED MONITOR GAGE | ||||
| 90412-05001 |
AT160,ST162..LHD 2 WAY |
1 | ||
| 90413-04001 |
ST162..LHD..(EUG,FRG) 3 WAY |
1 | ||
| 83550B - UNION OR WAY, ED MONITOR GAGE | ||||
| 90412-05001 |
AT160,ST162..LHD 2 WAY |
1 | ||
| 90413-04001 |
ST162..LHD..(EUG,FRG) 3 WAY |
1 | ||
| 83550B - UNION OR WAY, ED MONITOR GAGE | ||||
| 90412-05001 |
AT160,ST162..LHD 2 WAY |
1 | ||
| 90413-04001 |
ST162..LHD..(EUG,FRG) 3 WAY |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-20510 |
AT160,ST162..LHD |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 83710-20530 |
AT160,ST162..LHD |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-20580 |
AT160,ST162 |
1 | ||
| Common parts | ||||
| 90464-00074 | ||||
| 90464-00151 | ||||
| 90464-00220 | ||||
| 90464-00248 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(8508- )

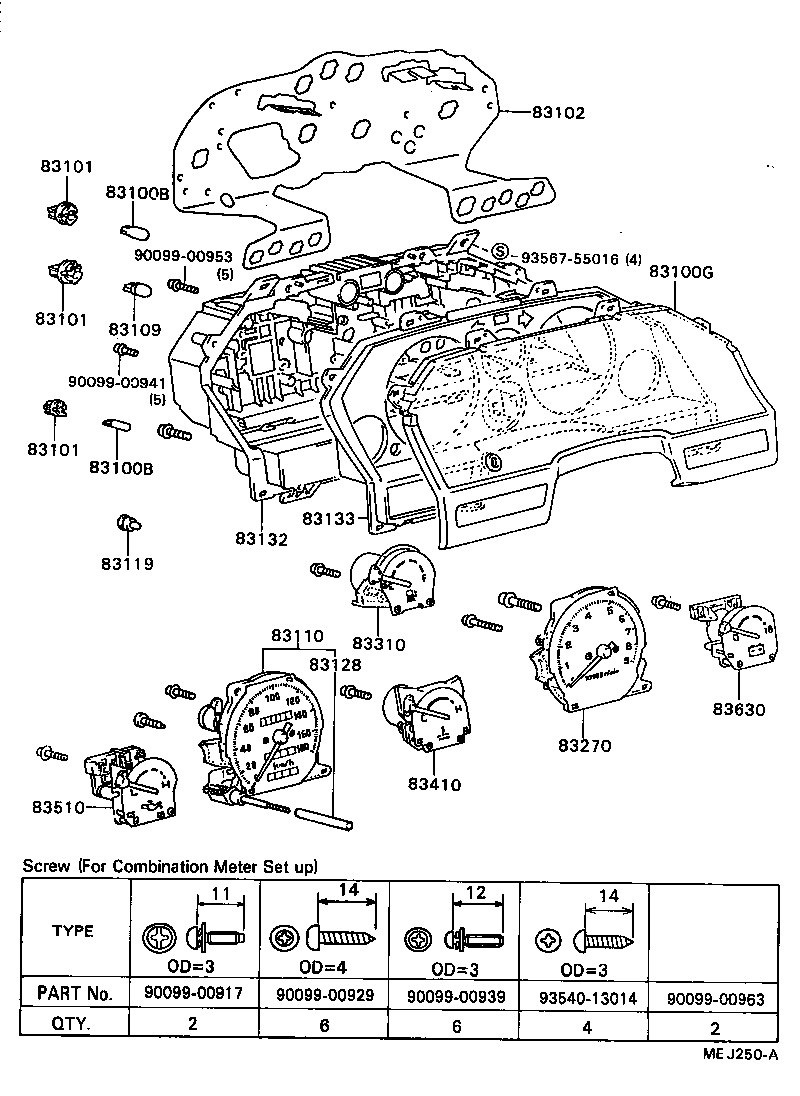

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AT160,ST162 12V 1.2W W/O SOCKET |
12 | ||
| 90981-11038 |
ST162..CP,LB 12V 5W,W/*DS |
4 | ||
| 99132-12034 |
AT160,ST162 12V 3.4W |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AT160,ST162 12V 1.2W W/O SOCKET |
12 | ||
| 90981-11038 |
ST162..CP,LB 12V 5W,W/*DS |
4 | ||
| 99132-12034 |
AT160,ST162 12V 3.4W |
4 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-1B150 |
AT160,ST162..LHD |
1 | ||
| 83138-1B050 |
ST162..(CP,LB)..LHD W/*DS |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AT160,ST162 BULB;12V 3.4W |
8 | ||
| 83101-12020 |
ST162..CP,LB BULB;12V 3.4W,W/*DS |
1 | ||
| 83101-20090 |
ST162..CP,LB BULB;12V 5W,W/*DS |
4 | ||
| 83101-14040 |
AT160,ST162 BULB;12V 1.4W |
12 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AT160,ST162 BULB;12V 3.4W |
8 | ||
| 83101-12020 |
ST162..CP,LB BULB;12V 3.4W,W/*DS |
1 | ||
| 83101-20090 |
ST162..CP,LB BULB;12V 5W,W/*DS |
4 | ||
| 83101-14040 |
AT160,ST162 BULB;12V 1.4W |
12 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AT160,ST162 BULB;12V 3.4W |
8 | ||
| 83101-12020 |
ST162..CP,LB BULB;12V 3.4W,W/*DS |
1 | ||
| 83101-20090 |
ST162..CP,LB BULB;12V 5W,W/*DS |
4 | ||
| 83101-14040 |
AT160,ST162 BULB;12V 1.4W |
12 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1J250 |
ST162..LHD..4FC |
1 | ||
| 83247-1D830 |
ST162..(CP,LB)..LHD W/*DS |
1 | ||
| 83247-1J700 |
ST162..LHD..4FC |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24040 |
ST162..CP,LB 12V1.4W W(GREEN CAP),W/*DS |
2 | ||
| 83109-24030 |
ST162..CP,LB 12V3.4W W(GREEN CAP),W/*DS |
1 | ||
| 83109-24030 |
AT160,ST162 12V3.4W W(GREEN CAP) |
4 | ||
| 83109-24020 |
AT160,ST162 12V3.4W W(GREEN CAP),W/O *DS |
4 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-2B480 |
AT160,ST162..LHD..TWC |
1 | ||
| 83119 - BULB, COMBINATION METER, NO.3 | ||||
| 83101-20080 |
ST162..4FC 12V 1.4W,W(SOCKET) |
2 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-14670 |
AT160,ST162 |
1 | ||
| 83128-14610 |
ST162..CP,LB W/*DS |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1J270 |
ST162..LHD |
1 | ||
| 83132-1D340 |
ST162..LHD..4FC |
1 | ||
| 83132-1J290 |
ST162..LHD..4FC |
1 | ||
| 83132-1D200 |
ST162..LHD |
1 | ||
| 83132-1D890 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/*DS |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-1B490 |
AT160,ST162..LHD |
1 | ||
| 83133-1B310 |
ST162..(CP,LB)..LHD W/*DS |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-1B290 |
ST162..LHD..4FC |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-14730 |
AT160,ST162..LHD |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1B110 |
AT160,ST162..EUG,SDZ |
1 | ||
| 83244-1B130 |
AT160,ST162..LHD |
1 | ||
| 83510 - GAGE ASSY, OIL PRESSURE RECEIVER | ||||
| 83246-14650 |
AT160,ST162 |
1 | ||
| 83630 - VOLTMETER ASSY | ||||
| 83251-14630 |
AT160,ST162 |
1 | ||
| Common parts | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 90099-00941 | ||||
| 90099-00953 | ||||
| 90099-00963 | ||||
| 93540-13014 | ||||
| 93567-55016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
