ST162L-BCPVFW (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 3SGEL
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

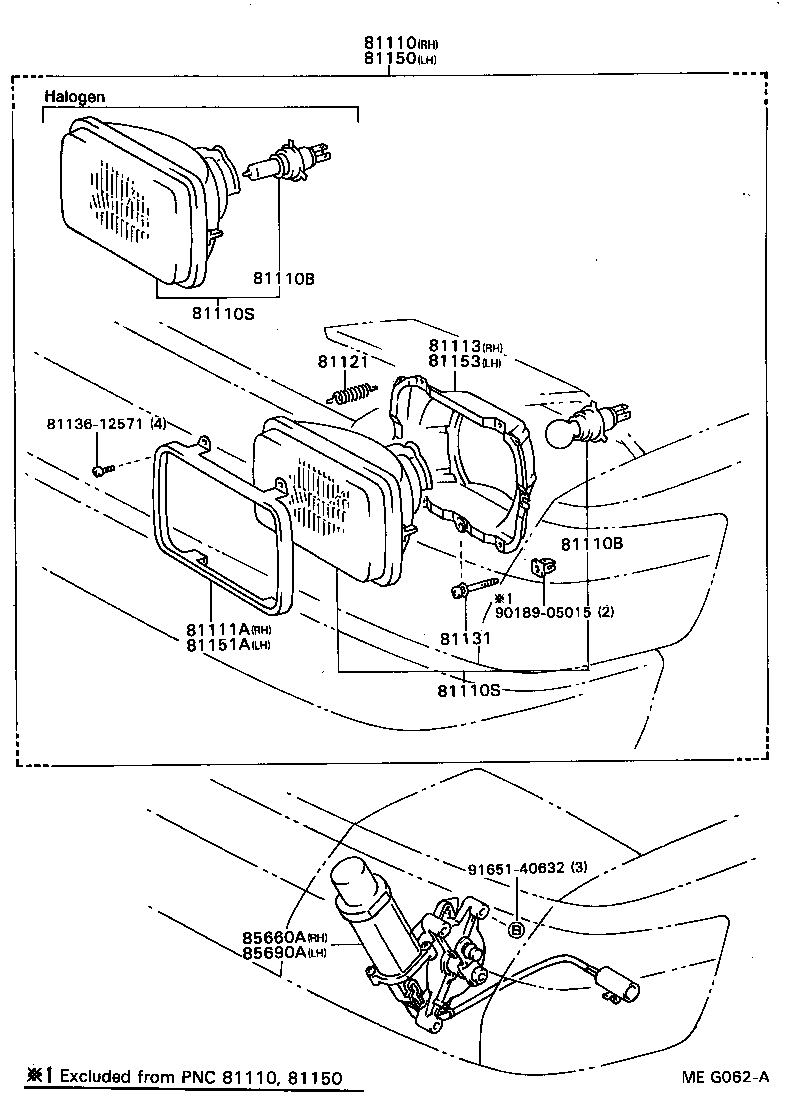

Click highlighted areas on diagram

diagram 81110 81110S 81111A 81113 81121 81131 8113612571 81150 81151A 81153 85660A 85690A 9018905015 9165140632
Part # Description Qty Price
Common parts
81136-12571
90189-05015
91651-40632

(8508- )

Click highlighted areas on diagram

diagram 81110 81110B 81110B 81110S 81110S 81111A 81113 81121 81131 8113612571 81150 81151A 81153 85660A 85690A 9018905015 9165140632
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-2B010

AT160,ST162..(CP,LB)..LHD..(EUG,FRG)

HALOGEN,YELLOW

 1
81110-17040

AT160,ST162..LHD

HALOGEN

 1
81110-80392

AT160,ST162..LHD

HALOGEN

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

AT160,ST162

12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN

 2
90981-13016

AT160,ST162..(CP,LB)..LHD..(EUG,FRG)

12V 60/55W,*HAL *YE,12V 60/55W,HALOGEN,YELLOW

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

AT160,ST162

12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN

 2
90981-13016

AT160,ST162..(CP,LB)..LHD..(EUG,FRG)

12V 60/55W,*HAL *YE,12V 60/55W,HALOGEN,YELLOW

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04026

AT160,ST162..(CP,LB)..LHD..(EUG,FRG)

12V 60/55W,*HYS,12V 60/55W,HALOGEN,YELLOW

 2
90981-04025

AT160,ST162..LHD

12V 60/55W,*HWS,12V 60/55W,HALOGEN

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04026

AT160,ST162..(CP,LB)..LHD..(EUG,FRG)

12V 60/55W,*HYS,12V 60/55W,HALOGEN,YELLOW

 2
90981-04025

AT160,ST162..LHD

12V 60/55W,*HWS,12V 60/55W,HALOGEN

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-17010

AT160,ST162

 1
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-17010

AT160,ST162

 1
81121 - SPRING, HEADLAMP TENSION
81121-17010

AT160,ST162

 1
81131 - SCREW, HEADLAMP ADJUSTING
81131-17010

AT160,ST162

 4
81150 - HEADLAMP ASSY, LH
81150-20860

AT160,ST162..(CP,LB)..LHD..(EUG,FRG)

HALOGEN,YELLOW

 1
81150-80384

AT160,ST162..LHD

HALOGEN

 1
81150-17040

AT160,ST162..LHD

HALOGEN

 1
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-17010

AT160,ST162

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-17010

AT160,ST162

 1
85660A - MOTOR ASSY, LIGHT RETRACTOR, RH
85660-20010

AT160,ST162

 1
85660-20011

AT160,ST162

 1
85690A - MOTOR ASSY, LIGHT RETRACTOR, LH
85690-20011

AT160,ST162

 1
85690-20010

AT160,ST162

 1
Common parts
81136-12571
90189-05015
91651-40632
