ST162L-BCPVFW (1985)
Toyota Celica
Production
Aug 1985
-
Aug 1987
Engine
3SGEL
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8608- )GT,ST
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06198 | ||||
| 90205-05002 | ||||
| 91611-40614 | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-40625 | ||||
| 91655-40630 | ||||
| 91661-40614 | ||||
| 93315-15012 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
(8508- )ST162..LHD

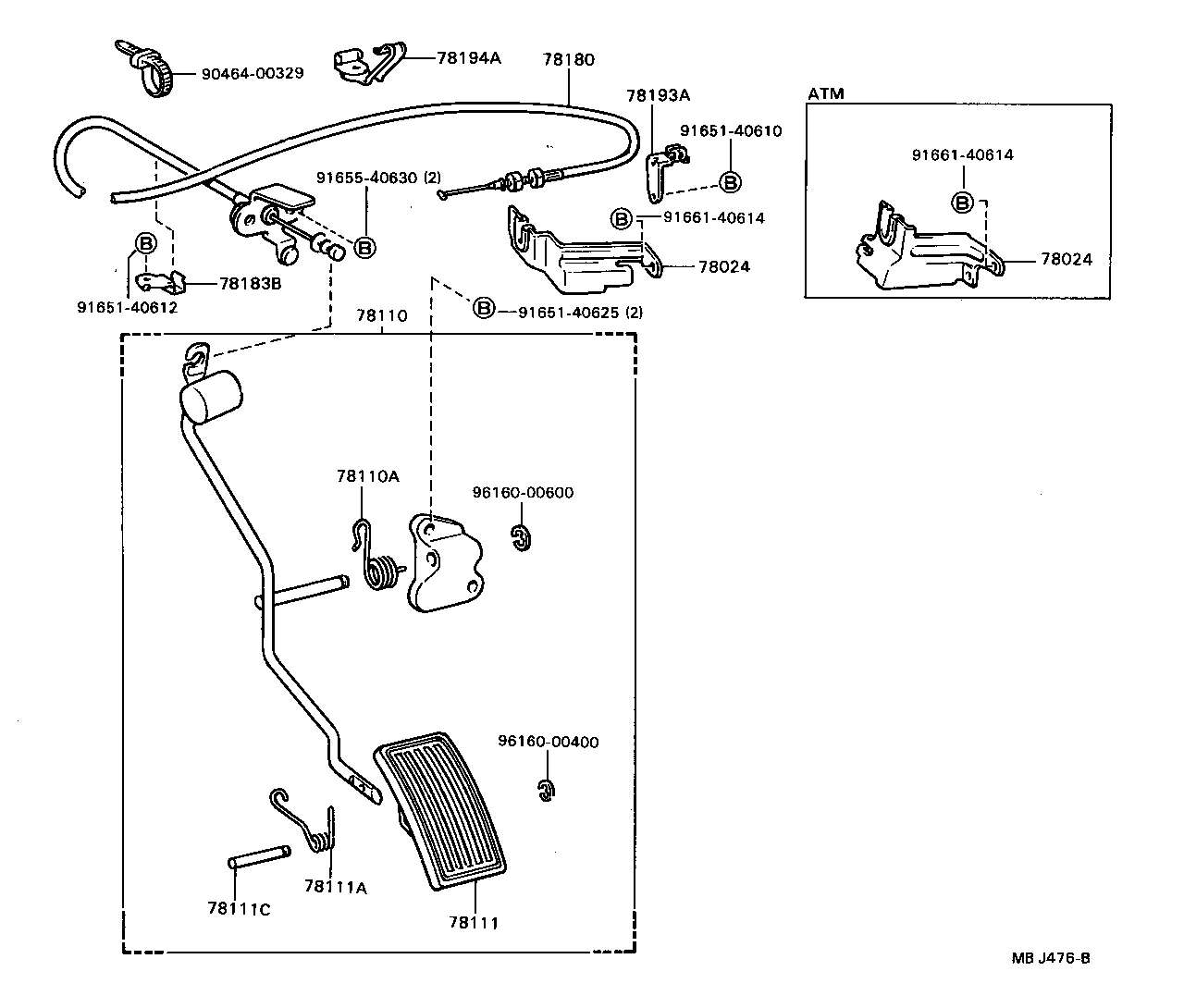

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-20070 |
ST162..4FC |
1 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-20070 |
ST162..4FC |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-20290 |
ST162..LHD..4FC |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18054 |
ST162..LHD..4FC |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-20030 |
AT160,ST162 |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-18050 |
AT160,ST162 |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
AT160,ST162 |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-20470 |
ST162..LHD..4FC |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-20040 |
ST162..LHD |
1 | ||
| 78193A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.3 | ||||
| 78193-20030 |
ST162 |
1 | ||
| 78194A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.4 | ||||
| 78194-20060 |
ST162..LHD |
1 | ||
| Common parts | ||||
| 90464-00329 | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||
| 91651-40625 | ||||
| 91655-40630 | ||||
| 91661-40614 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
