ST162L-BCPVFW (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 3SGEL
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )CP,CVT

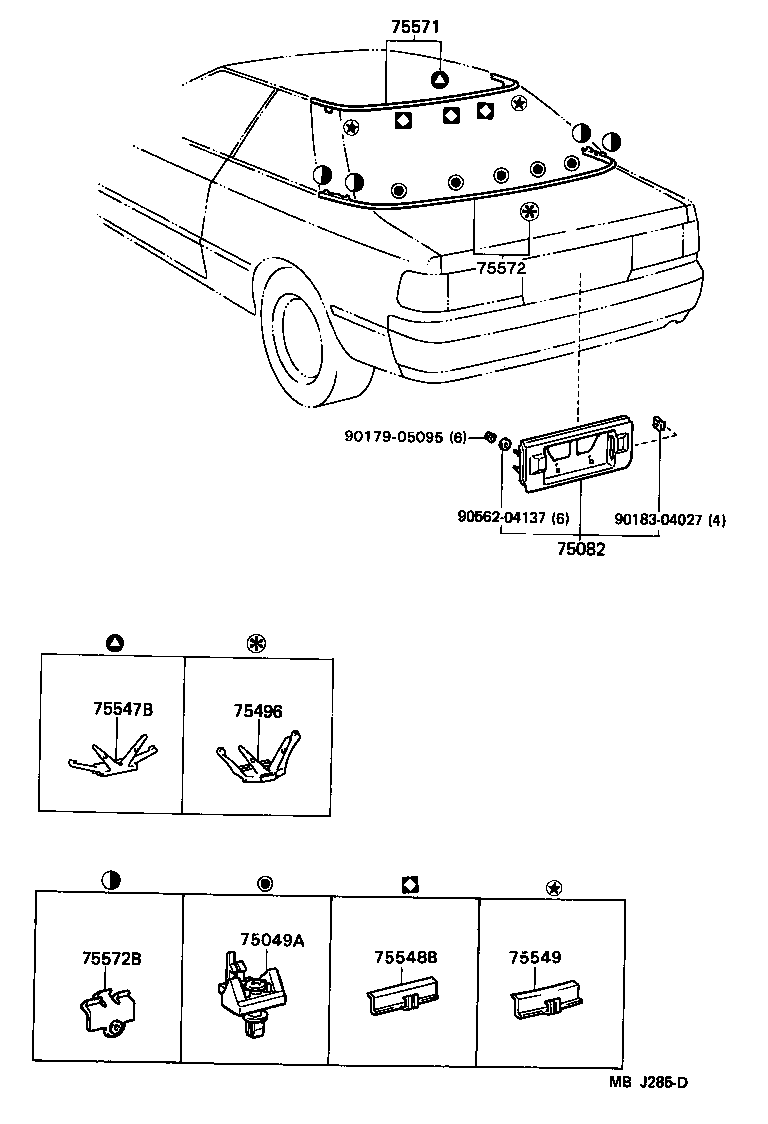

Click highlighted areas on diagram

diagram 75049A 75082 75496 75547B 75548B 75549 75571 75572 75572B 9017905095 9018304027 9056204137
Part # Description Qty Price
Common parts
90179-05095
90183-04027
90562-04137

(8508- )CP,CVT

Click highlighted areas on diagram

diagram 75049A 75082 75082 75496 75547B 75548B 75549 75571 75572 75572B 9017905095 9017905095 9018304027 9056204137 9056204137
Part # Description Qty Price
75049A - CLIP SUB-ASSY, OUTSIDE MOULDING, NO.2
75049-20030

AT160,ST162..CP

 5
75049-20060

AT160,ST162..CP

 5
75082 - PANEL SUB-ASSY, LOWER BACK FINISH, CENTER
75082-20120

AT160,ST162..CP,CVT

RR LICENCE=LWR LIGHTING

 1
75082 - PANEL SUB-ASSY, LOWER BACK FINISH, CENTER
75082-20120

AT160,ST162..CP,CVT

RR LICENCE=LWR LIGHTING

 1
75496 - CLIP, BACK WINDOW OUTSIDE MOULDING, NO.1
75496-20010

AT160,ST162..CP

 5
75547B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
75547-20040

AT160,ST162..CP

 5
75548B - FASTENER, BACK WINDOW OUTSIDE MOULDING
75548-20060

AT160,ST162..CP

 3
75549 - FASTENER, BACK WINDOW OUTSIDE MOULDING, NO.2
75549-20090

AT160,ST162..CP

 2
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75501-20020

AT160,ST162..CP

 1
75572 - MOULDING, BACK WINDOW, LOWER
75507-20150

AT160,ST162..CP

 1
75572B - CLIP(FOR BACK WINDOW MOULDING SET)
75791-20040

AT160,ST162..CP

 2
Common parts
90179-05095
90183-04027
90562-04137
