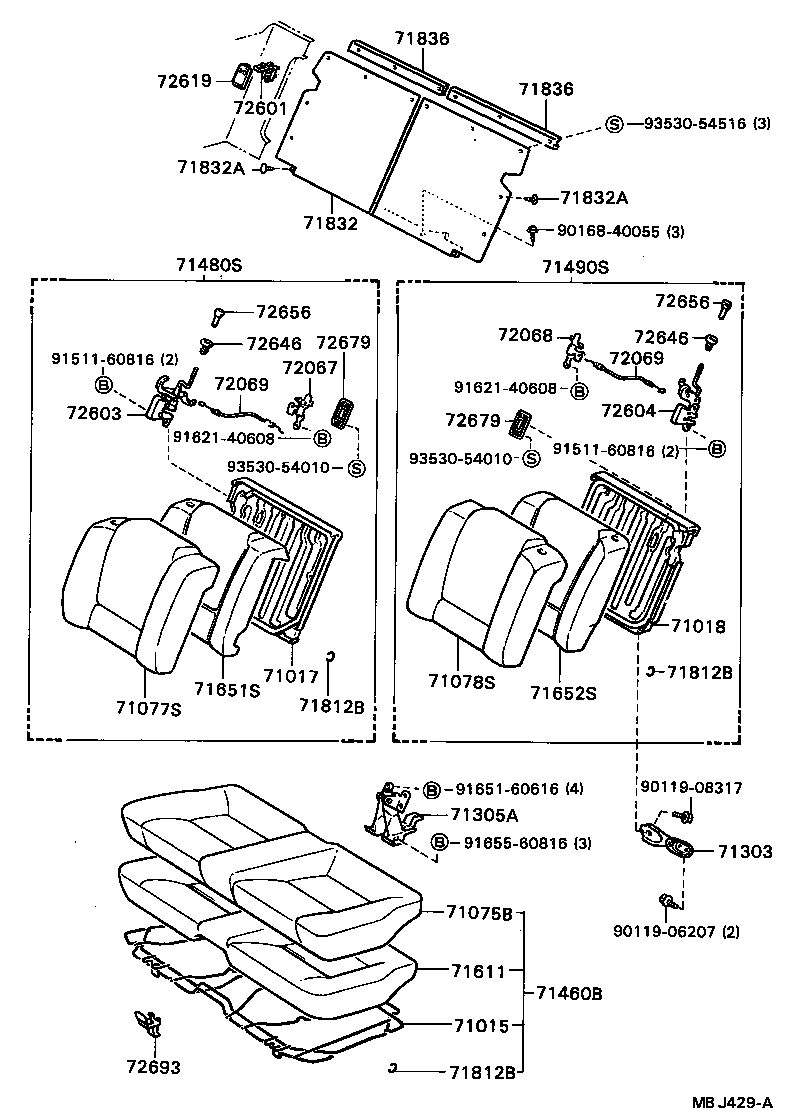

ST162L-BCPVFW (1985)
Toyota Celica
(8508- )CP..GT,GTS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-20190 |
AT160,ST162 |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-20240 |
AT160,ST162..(CP,CVT)..TWC |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-20050 |
AT160,ST162..(CP,CVT)..TWC |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-2049004 |
ST162 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71065-2049006 |
ST162 FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71065-2049003 |
ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71065-2049103 |
ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71065-2049106 |
ST162..CP,LB FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71065-2062003 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71065-2062004 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71065-2049104 |
ST162..CP,LB FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71065-2062006 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-2B65003 |
ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71077-2B65006 |
ST162 FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71077-2B65104 |
ST162..CP,LB FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71077-2B65106 |
ST162..CP,LB FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71077-2B65004 |
ST162 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71077-2B78003 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71077-2B78006 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71077-2B78004 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71077-2B65103 |
ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-2031003 |
ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71078-2031004 |
ST162 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71078-2031006 |
ST162 FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71078-2031103 |
ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71078-2031104 |
ST162..CP,LB FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71078-2040003 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71078-2040004 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71078-2040006 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71078-2031106 |
ST162..CP,LB FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-16010 |
AT160,ST162..(CP,CVT)..TWC |
2 | ||
| 71303-16010 |
AT160..LB..CBR;AT160,ST162..TWC |
2 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-20060 |
AT160,ST162..(CP,CVT)..TWC |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71560-2048003 |
ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71560-2048004 |
ST162 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71560-2048006 |
ST162 FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71560-2048104 |
ST162..CP,LB FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71560-2058004 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71560-2048103 |
ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71560-2048106 |
ST162..CP,LB FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71560-2058003 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71560-2058006 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-2B75006 |
ST162 FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71480-2B75003 |
ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71480-2B85004 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71480-2B75103 |
ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71480-2B85003 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71480-2B75004 |
ST162 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71480-2B75106 |
ST162..CP,LB FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71480-2B85006 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71480-2B75104 |
ST162..CP,LB FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-2035003 |
ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71490-2035004 |
ST162 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71490-2035006 |
ST162 FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71490-2040004 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71490-2035106 |
ST162..CP,LB FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71490-2035104 |
ST162..CP,LB FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71490-2040003 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71490-2035103 |
ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71490-2040006 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-20340 |
AT160,ST162 |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-20410 |
ST162 |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-20270 |
ST162 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
AT160,ST162 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
AT160,ST162 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
AT160,ST162 |
1 | ||
| 71832 - CARPET OR MAT, REAR SEAT BACK | ||||
| 71880-2006004 |
AT160,ST162..CP..TWC BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71880-2006003 |
AT160,ST162..(CP,CVT)..TWC GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71880-2006006 |
AT160,ST162..CP..TWC BROWN,BROWN,TRIM4# |
1 | ||
| 71832A - CLIP, REAR SEAT BACK CARPET OR MAT | ||||
| 90467-0601633 |
AT160,ST162..(CP,CVT)..TWC GRAY,GRAY,TRIM1# |
12 | ||
| 90467-0601625 |
AT160,ST162..CP..TWC BEIGE,BEIGE,TRIM4# |
12 | ||
| 90467-0601620 |
AT160,ST162..CP..TWC BLUE,DEEP BLUE,TRIM8# |
12 | ||
| 71832A - CLIP, REAR SEAT BACK CARPET OR MAT | ||||
| 90467-0601633 |
AT160,ST162..(CP,CVT)..TWC GRAY,GRAY,TRIM1# |
12 | ||
| 90467-0601625 |
AT160,ST162..CP..TWC BEIGE,BEIGE,TRIM4# |
12 | ||
| 90467-0601620 |
AT160,ST162..CP..TWC BLUE,DEEP BLUE,TRIM8# |
12 | ||
| 71836 - PLATE, REAR SEAT BACK CARPET OR MAT SUPPORT, UPPER | ||||
| 58583-2003004 |
AT160,ST162..CP..TWC BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 58583-2003003 |
AT160,ST162..(CP,CVT)..TWC GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 58583-2003006 |
AT160,ST162..CP..TWC BROWN,BROWN,TRIM4# |
2 | ||
| 71836 - PLATE, REAR SEAT BACK CARPET OR MAT SUPPORT, UPPER | ||||
| 58583-2003004 |
AT160,ST162..CP..TWC BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 58583-2003003 |
AT160,ST162..(CP,CVT)..TWC GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 58583-2003006 |
AT160,ST162..CP..TWC BROWN,BROWN,TRIM4# |
2 | ||
| 72067 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH | ||||
| 72067-20010 |
AT160,ST162..(CP,CVT)..TWC |
1 | ||
| 72068 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH | ||||
| 72068-20010 |
AT160,ST162..(CP,CVT)..TWC |
1 | ||
| 72069 - CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL | ||||
| 72069-20010 |
AT160,ST162..(CP,CVT)..TWC |
2 | ||
| 72069 - CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL | ||||
| 72069-20010 |
AT160,ST162..(CP,CVT)..TWC |
2 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72610-20010 |
AT160,ST162..(CP,CVT)..TWC |
2 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72603-20010 |
AT160,ST162..(CP,CVT)..TWC |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72604-20010 |
AT160,ST162..(CP,CVT)..TWC |
1 | ||
| 72619 - COVER, REAR SEAT BACK LOCK STRIKER | ||||
| 72615-2001006 |
AT160,ST162..CP..TWC BROWN,BROWN,TRIM4# |
2 | ||
| 72615-2001003 |
AT160,ST162..(CP,CVT)..TWC GRAY,GRAY,TRIM1# |
2 | ||
| 72615-2001014 |
AT160,ST162..CP..TWC BLUE,BLUE,TRIM8# |
2 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-2002003 |
AT160,ST162..(CP,CVT)..TWC GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 72646-2002004 |
AT160,ST162..CP..TWC BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 72646-2002006 |
AT160,ST162..CP..TWC BROWN,BROWN,TRIM4# |
2 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-2002003 |
AT160,ST162..(CP,CVT)..TWC GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 72646-2002004 |
AT160,ST162..CP..TWC BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 72646-2002006 |
AT160,ST162..CP..TWC BROWN,BROWN,TRIM4# |
2 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-1201014 |
AT160,ST162..CP..TWC BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 72661-1201006 |
AT160,ST162..CP..TWC BROWN,BROWN,TRIM4# |
2 | ||
| 72661-1201003 |
AT160,ST162..(CP,CVT)..TWC GRAY,GRAY,TRIM1# |
2 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-1201014 |
AT160,ST162..CP..TWC BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 72661-1201006 |
AT160,ST162..CP..TWC BROWN,BROWN,TRIM4# |
2 | ||
| 72661-1201003 |
AT160,ST162..(CP,CVT)..TWC GRAY,GRAY,TRIM1# |
2 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-1601013 |
AT160,ST162..CP..TWC GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 72679-1601006 |
AT160,ST162..CP..TWC BROWN,BROWN,TRIM4# |
2 | ||
| 72679-1601004 |
AT160,ST162..(CP,CVT)..TWC BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-1601013 |
AT160,ST162..CP..TWC GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 72679-1601006 |
AT160,ST162..CP..TWC BROWN,BROWN,TRIM4# |
2 | ||
| 72679-1601004 |
AT160,ST162..(CP,CVT)..TWC BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-20010 |
AT160,ST162 |
2 | ||
| Common parts | ||||
| 90119-06207 | ||||
| 90119-08317 | ||||
| 90168-40055 | ||||
| 91511-60816 | ||||
| 91621-40608 | ||||
| 91651-60616 | ||||
| 91655-60816 | ||||
| 93530-54010 | ||||
| 93530-54516 | ||||
(8508- )ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08317 | ||||
(8508- )CP,CVT..TWC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-20190 |
AT160,ST162 |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-20240 |
AT160,ST162..(CP,CVT)..TWC |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-20050 |
AT160,ST162..(CP,CVT)..TWC |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-2049004 |
ST162 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71065-2049006 |
ST162 FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71065-2049003 |
ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71065-2049103 |
ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71065-2049106 |
ST162..CP,LB FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71065-2062003 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71065-2062004 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71065-2049104 |
ST162..CP,LB FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71065-2062006 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-2B65003 |
ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71077-2B65006 |
ST162 FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71077-2B65104 |
ST162..CP,LB FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71077-2B65106 |
ST162..CP,LB FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71077-2B65004 |
ST162 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71077-2B78003 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71077-2B78006 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71077-2B78004 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71077-2B65103 |
ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-2031003 |
ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71078-2031004 |
ST162 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71078-2031006 |
ST162 FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71078-2031103 |
ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71078-2031104 |
ST162..CP,LB FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71078-2040003 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71078-2040004 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71078-2040006 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71078-2031106 |
ST162..CP,LB FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-16010 |
AT160,ST162..(CP,CVT)..TWC |
2 | ||
| 71303-16010 |
AT160..LB..CBR;AT160,ST162..TWC |
2 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-20060 |
AT160,ST162..(CP,CVT)..TWC |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71560-2048003 |
ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71560-2048004 |
ST162 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71560-2048006 |
ST162 FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71560-2048104 |
ST162..CP,LB FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71560-2058004 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71560-2048103 |
ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71560-2048106 |
ST162..CP,LB FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71560-2058003 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71560-2058006 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-2B75006 |
ST162 FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71480-2B75003 |
ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71480-2B85004 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71480-2B75103 |
ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71480-2B85003 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71480-2B75004 |
ST162 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71480-2B75106 |
ST162..CP,LB FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71480-2B85006 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71480-2B75104 |
ST162..CP,LB FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-2035003 |
ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71490-2035004 |
ST162 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71490-2035006 |
ST162 FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71490-2040004 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71490-2035106 |
ST162..CP,LB FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71490-2035104 |
ST162..CP,LB FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71490-2040003 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71490-2035103 |
ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71490-2040006 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-20340 |
AT160,ST162 |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-20410 |
ST162 |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-20270 |
ST162 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
AT160,ST162 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
AT160,ST162 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
AT160,ST162 |
1 | ||
| 71832 - CARPET OR MAT, REAR SEAT BACK | ||||
| 71880-2006004 |
AT160,ST162..CP..TWC BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71880-2006003 |
AT160,ST162..(CP,CVT)..TWC GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71880-2006006 |
AT160,ST162..CP..TWC BROWN,BROWN,TRIM4# |
1 | ||
| 71832A - CLIP, REAR SEAT BACK CARPET OR MAT | ||||
| 90467-0601633 |
AT160,ST162..(CP,CVT)..TWC GRAY,GRAY,TRIM1# |
12 | ||
| 90467-0601625 |
AT160,ST162..CP..TWC BEIGE,BEIGE,TRIM4# |
12 | ||
| 90467-0601620 |
AT160,ST162..CP..TWC BLUE,DEEP BLUE,TRIM8# |
12 | ||
| 71832A - CLIP, REAR SEAT BACK CARPET OR MAT | ||||
| 90467-0601633 |
AT160,ST162..(CP,CVT)..TWC GRAY,GRAY,TRIM1# |
12 | ||
| 90467-0601625 |
AT160,ST162..CP..TWC BEIGE,BEIGE,TRIM4# |
12 | ||
| 90467-0601620 |
AT160,ST162..CP..TWC BLUE,DEEP BLUE,TRIM8# |
12 | ||
| 71836 - PLATE, REAR SEAT BACK CARPET OR MAT SUPPORT, UPPER | ||||
| 58583-2003004 |
AT160,ST162..CP..TWC BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 58583-2003003 |
AT160,ST162..(CP,CVT)..TWC GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 58583-2003006 |
AT160,ST162..CP..TWC BROWN,BROWN,TRIM4# |
2 | ||
| 71836 - PLATE, REAR SEAT BACK CARPET OR MAT SUPPORT, UPPER | ||||
| 58583-2003004 |
AT160,ST162..CP..TWC BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 58583-2003003 |
AT160,ST162..(CP,CVT)..TWC GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 58583-2003006 |
AT160,ST162..CP..TWC BROWN,BROWN,TRIM4# |
2 | ||
| 72067 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH | ||||
| 72067-20010 |
AT160,ST162..(CP,CVT)..TWC |
1 | ||
| 72068 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH | ||||
| 72068-20010 |
AT160,ST162..(CP,CVT)..TWC |
1 | ||
| 72069 - CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL | ||||
| 72069-20010 |
AT160,ST162..(CP,CVT)..TWC |
2 | ||
| 72069 - CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL | ||||
| 72069-20010 |
AT160,ST162..(CP,CVT)..TWC |
2 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72610-20010 |
AT160,ST162..(CP,CVT)..TWC |
2 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72603-20010 |
AT160,ST162..(CP,CVT)..TWC |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72604-20010 |
AT160,ST162..(CP,CVT)..TWC |
1 | ||
| 72619 - COVER, REAR SEAT BACK LOCK STRIKER | ||||
| 72615-2001006 |
AT160,ST162..CP..TWC BROWN,BROWN,TRIM4# |
2 | ||
| 72615-2001003 |
AT160,ST162..(CP,CVT)..TWC GRAY,GRAY,TRIM1# |
2 | ||
| 72615-2001014 |
AT160,ST162..CP..TWC BLUE,BLUE,TRIM8# |
2 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-2002003 |
AT160,ST162..(CP,CVT)..TWC GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 72646-2002004 |
AT160,ST162..CP..TWC BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 72646-2002006 |
AT160,ST162..CP..TWC BROWN,BROWN,TRIM4# |
2 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-2002003 |
AT160,ST162..(CP,CVT)..TWC GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 72646-2002004 |
AT160,ST162..CP..TWC BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 72646-2002006 |
AT160,ST162..CP..TWC BROWN,BROWN,TRIM4# |
2 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-1201014 |
AT160,ST162..CP..TWC BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 72661-1201006 |
AT160,ST162..CP..TWC BROWN,BROWN,TRIM4# |
2 | ||
| 72661-1201003 |
AT160,ST162..(CP,CVT)..TWC GRAY,GRAY,TRIM1# |
2 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-1201014 |
AT160,ST162..CP..TWC BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 72661-1201006 |
AT160,ST162..CP..TWC BROWN,BROWN,TRIM4# |
2 | ||
| 72661-1201003 |
AT160,ST162..(CP,CVT)..TWC GRAY,GRAY,TRIM1# |
2 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-1601013 |
AT160,ST162..CP..TWC GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 72679-1601006 |
AT160,ST162..CP..TWC BROWN,BROWN,TRIM4# |
2 | ||
| 72679-1601004 |
AT160,ST162..(CP,CVT)..TWC BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-1601013 |
AT160,ST162..CP..TWC GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 72679-1601006 |
AT160,ST162..CP..TWC BROWN,BROWN,TRIM4# |
2 | ||
| 72679-1601004 |
AT160,ST162..(CP,CVT)..TWC BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-20010 |
AT160,ST162 |
2 | ||
| Common parts | ||||
| 90119-06207 | ||||
| 90119-08317 | ||||
| 90168-40055 | ||||
| 91511-60816 | ||||
| 91621-40608 | ||||
| 91651-60616 | ||||
| 91655-60816 | ||||
| 93530-54010 | ||||
| 93530-54516 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
