ST162L-BCPVFW (1985)
Toyota Celica
(8508- )GT,ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06028 | ||||
| 90386-12016 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 91656-40616 | ||||
(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10290 | ||||
| 90149-40015 | ||||
| 90168-40043 | ||||
| 90168-40045 | ||||
| 90168-40049 | ||||
| 90520-01002 | ||||
| 91651-60820 | ||||
| 96160-00800 | ||||
(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-2011006 |
AT160,ST162..(CP,LB)..LHD BROWN,BROWN,TRIM4# |
1 | ||
| 71811-2011004 |
AT160,ST162..(CP,LB)..LHD BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71811-2011003 |
AT160,ST162..LHD GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-2008004 |
AT160,ST162..(CP,LB)..LHD..TWC BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71812-2008003 |
AT160,ST162..LHD..TWC GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71812-2008006 |
AT160,ST162..(CP,LB)..LHD..TWC BROWN,BROWN,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-2003003 |
AT160,ST162 GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71861-2003004 |
AT160,ST162..CP,LB BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71861-2003006 |
AT160,ST162..CP,LB BROWN,BROWN,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-2003004 |
AT160,ST162..CP,LB BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71862-2003006 |
AT160,ST162..CP,LB BROWN,BROWN,TRIM4# |
1 | ||
| 71862-2003003 |
AT160,ST162 GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-20030 |
ST162..LHD |
1 | ||
| 72011B - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90507-18014 |
AT160,ST162 |
2 | ||
| 72011B - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90507-18014 |
AT160,ST162 |
2 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-20070 |
ST162..LHD |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-20020 |
AT160,ST162..LHD |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-20030 |
AT160,ST162..LHD..TWC |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-20030 |
AT160,ST162 |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-20020 |
AT160,ST162 |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72138-20020 |
AT160,ST162 RH |
1 | ||
| 72137-20030 |
AT160,ST162 LH |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72138-20020 |
AT160,ST162 RH |
1 | ||
| 72137-20030 |
AT160,ST162 LH |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-20190 |
AT160,ST162 |
2 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-20190 |
AT160,ST162 |
2 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72457-1701004 |
AT160,ST162..(CP,LB)..TWC BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72457-1701003 |
AT160,ST162..TWC GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 72457-1701006 |
AT160,ST162..(CP,LB)..TWC BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-20010 |
AT160,ST162 |
2 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-20010 |
AT160,ST162 |
2 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-2006004 |
AT160,ST162..CP,LB RH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72526-2005003 |
AT160,ST162 LH,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 72526-2005006 |
AT160,ST162..CP,LB LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72525-2006003 |
AT160,ST162 RH,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 72525-2006006 |
AT160,ST162..CP,LB RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72526-2005004 |
AT160,ST162..CP,LB LH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-2006004 |
AT160,ST162..CP,LB RH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72526-2005003 |
AT160,ST162 LH,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 72526-2005006 |
AT160,ST162..CP,LB LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72525-2006003 |
AT160,ST162 RH,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 72525-2006006 |
AT160,ST162..CP,LB RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72526-2005004 |
AT160,ST162..CP,LB LH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72592 - KNOB, RECLINING ADJUSTER | ||||
| 72592-2001003 |
AT160,ST162 GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 72592-2001004 |
AT160,ST162..CP,LB BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 72592-2001006 |
AT160,ST162..CP,LB BROWN,BROWN,TRIM4# |
2 | ||
| 72592 - KNOB, RECLINING ADJUSTER | ||||
| 72592-2001003 |
AT160,ST162 GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 72592-2001004 |
AT160,ST162..CP,LB BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 72592-2001006 |
AT160,ST162..CP,LB BROWN,BROWN,TRIM4# |
2 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10290 | ||||
| 90149-40015 | ||||
| 90168-40043 | ||||
| 90168-40045 | ||||
| 90168-40049 | ||||
| 90520-01002 | ||||
| 91651-60820 | ||||
| 96160-00800 | ||||

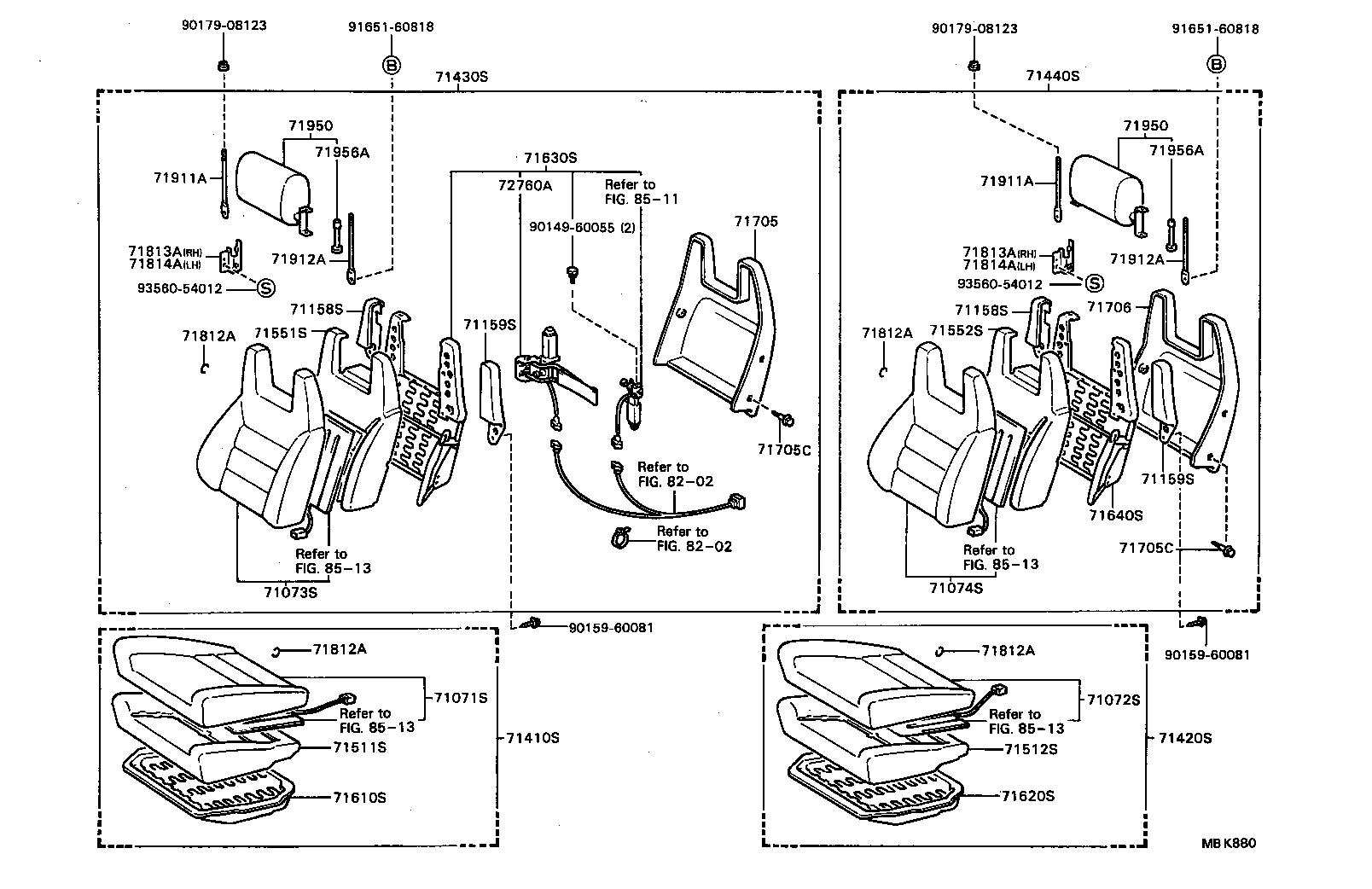

(8508- )ST162
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2B75003 |
ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71071-2B75006 |
ST162 FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-2B66003 |
ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71071-2B66006 |
ST162 FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-2B66004 |
ST162 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71071-2B75104 |
ST162..CP,LB FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71071-2B75106 |
ST162..CP,LB FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-2B75103 |
ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71071-2B75004 |
ST162 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71071-2B87004 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71071-2B87006 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-2B87003 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2B09006 |
ST162 FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71072-2B21006 |
ST162..LHD W/8 WAY,*SPS,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71072-2B09004 |
ST162 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71072-2B09003 |
ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71072-2B21006 |
ST162 FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71072-2B21004 |
ST162 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71072-2B21003 |
ST162..LHD W/8 WAY,*SPS,FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71072-2B21004 |
ST162..LHD W/8 WAY,*SPS,FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71072-2B21003 |
ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71072-2B21103 |
ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71072-2B21104 |
ST162..CP,LB FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71072-2B29003 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71072-2B29004 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71072-2B21106 |
ST162..CP,LB FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71072-2B29006 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2B65006 |
ST162 FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71073-2B65003 |
ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71073-2B65004 |
ST162 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71073-2B65104 |
ST162..CP,LB FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71073-2B65106 |
ST162..CP,LB FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71073-2B65103 |
ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71073-2B80004 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71073-2B80003 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71073-2B80006 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2B31004 |
ST162 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71074-2B31006 |
ST162 FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71074-2B31103 |
ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71074-2B31003 |
ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71074-2B31106 |
ST162..CP,LB FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71074-2B31104 |
ST162..CP,LB FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71074-2B47006 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71074-2B47004 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71074-2B47003 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71158S - FRAME, FRONT SEAT BACK, UPPER RH | ||||
| 71158-20130 |
ST162 |
2 | ||
| 71158S - FRAME, FRONT SEAT BACK, UPPER RH | ||||
| 71158-20130 |
ST162 |
2 | ||
| 71159S - FRAME, FRONT SEAT BACK, UPPER LH | ||||
| 71159-20080 |
ST162 |
2 | ||
| 71159S - FRAME, FRONT SEAT BACK, UPPER LH | ||||
| 71159-20080 |
ST162 |
2 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2B70004 |
ST162..LHD FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71410-2B70003 |
ST162..LHD FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-2B70006 |
ST162..LHD FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71410-2B70106 |
ST162..(CP,LB)..LHD FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71410-2B70103 |
ST162..(CP,LB)..LHD FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-2B87104 |
ST162..(CP,LB)..LHD W/8-WAY *SPS,FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71410-2D05004 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71410-2B87103 |
ST162..LHD W/8-WAY *SPS,FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-2B70104 |
ST162..(CP,LB)..LHD FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71410-2B87106 |
ST162..(CP,LB)..LHD W/8-WAY *SPS,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71410-2D05006 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71410-2D05003 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2B17003 |
ST162..LHD FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-2B17004 |
ST162..LHD FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71420-2B30003 |
ST162..LHD W/8-WAY *SPS,FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-2B30006 |
ST162..LHD W/8-WAY *SPS,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71420-2B17006 |
ST162..LHD FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71420-2B17104 |
ST162..(CP,LB)..LHD FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71420-2B30004 |
ST162..LHD W/8-WAY *SPS,FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71420-2B39003 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-2B17106 |
ST162..(CP,LB)..LHD FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71420-2B30104 |
ST162..(CP,LB)..LHD W/8-WAY *SPS,FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71420-2B30106 |
ST162..(CP,LB)..LHD W/8-WAY *SPS,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71420-2B17103 |
ST162..(CP,LB)..LHD FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-2B30103 |
ST162..LHD W/8-WAY *SPS,FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-2B39004 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71420-2B39006 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2B80004 |
ST162 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71430-2B80003 |
ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-2B80103 |
ST162..CP,LB FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-2B80006 |
ST162 FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71430-2B77104 |
ST162..(CP,LB)..LHD W/8-WAY *SPS,FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71430-2B80106 |
ST162..CP,LB FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71430-2B77103 |
ST162..LHD W/8-WAY *SPS,FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-2B77106 |
ST162..(CP,LB)..LHD W/8-WAY *SPS,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71430-2B80104 |
ST162..CP,LB FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71430-2D03006 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71430-2D03004 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71430-2D03003 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2B51004 |
ST162..LHD W/8 WAY *SPS,FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71440-2B55006 |
ST162 FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71440-2B51003 |
ST162..LHD W/8 WAY *SPS,FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-2B55004 |
ST162 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71440-2B51006 |
ST162..LHD W/8 WAY *SPS,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71440-2B51104 |
ST162..(CP,LB)..LHD W/8-WAY *SPS,FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71440-2B51103 |
ST162..LHD W/8-WAY *SPS,FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-2B55106 |
ST162..CP,LB FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71440-2B55103 |
ST162..CP,LB FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-2B67006 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71440-2B51106 |
ST162..(CP,LB)..LHD W/8-WAY *SPS,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71440-2B55003 |
ST162 FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-2B55104 |
ST162..CP,LB FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71440-2B67004 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71440-2B67003 |
ST162..(CP,LB)..LHD..(EUG,SDZ) W/SEAT HEATER,FB,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20410 |
ST162 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-20410 |
ST162 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-20370 |
ST162 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-20370 |
ST162 |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-20300 |
ST162..LHD |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-20180 |
ST162..LHD |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-20420 |
ST162 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-20430 |
ST162..LHD W/8 WAY *SPS |
1 | ||
| 71630-20420 |
ST162..CP,LB |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-2007004 |
ST162..CP,LB BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71705-2007006 |
ST162..CP,LB BROWN,BROWN,TRIM4# |
1 | ||
| 71705-2007003 |
ST162 GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71705C - SCREW(FOR FRONT SEAT BACK BOARD) | ||||
| 90149-5004303 |
ST162 GRAY,SHADOW GRAY,TRIM1# |
8 | ||
| 90149-5004304 |
ST162..CP,LB BLUE,DEEP BLUE,TRIM8# |
8 | ||
| 90149-5004306 |
ST162..CP,LB BROWN,BROWN,TRIM4# |
8 | ||
| 71705C - SCREW(FOR FRONT SEAT BACK BOARD) | ||||
| 90149-5004303 |
ST162 GRAY,SHADOW GRAY,TRIM1# |
8 | ||
| 90149-5004304 |
ST162..CP,LB BLUE,DEEP BLUE,TRIM8# |
8 | ||
| 90149-5004306 |
ST162..CP,LB BROWN,BROWN,TRIM4# |
8 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-2007006 |
ST162..CP,LB BROWN,BROWN,TRIM4# |
1 | ||
| 71705-2007003 |
ST162 GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71705-2007004 |
ST162..CP,LB BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT160,ST162 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT160,ST162 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT160,ST162 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AT160,ST162 |
1 | ||
| 71813A - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-2001004 |
ST162..CP,LB BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71813-2001003 |
ST162 GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 71813-2001006 |
ST162..CP,LB BROWN,BROWN,TRIM4# |
2 | ||
| 71813A - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-2001004 |
ST162..CP,LB BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71813-2001003 |
ST162 GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 71813-2001006 |
ST162..CP,LB BROWN,BROWN,TRIM4# |
2 | ||
| 71814A - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-2001004 |
ST162..CP,LB BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71814-2001003 |
ST162 GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 71814-2001006 |
ST162..CP,LB BROWN,BROWN,TRIM4# |
2 | ||
| 71814A - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-2001004 |
ST162..CP,LB BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71814-2001003 |
ST162 GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 71814-2001006 |
ST162..CP,LB BROWN,BROWN,TRIM4# |
2 | ||
| 71911A - STAY, FRONT SEAT HEADREST, RH | ||||
| 71911-14050 |
ST162 |
2 | ||
| 71911A - STAY, FRONT SEAT HEADREST, RH | ||||
| 71911-14050 |
ST162 |
2 | ||
| 71912A - STAY, FRONT SEAT HEADREST, LH | ||||
| 71912-14070 |
ST162 |
2 | ||
| 71912A - STAY, FRONT SEAT HEADREST, LH | ||||
| 71912-14070 |
ST162 |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2072003 |
ST162 GRAY,GRAY,TRIM1# |
2 | ||
| 71910-2072004 |
ST162..CP,LB BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71910-2072006 |
ST162..CP,LB BROWN,BROWN,TRIM4# |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2072003 |
ST162 GRAY,GRAY,TRIM1# |
2 | ||
| 71910-2072004 |
ST162..CP,LB BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71910-2072006 |
ST162..CP,LB BROWN,BROWN,TRIM4# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1408006 |
ST162..CP,LB W(LOCK),W/LOCK,BROWN,SABLE,TRIM4# |
1 | ||
| 71931-1401014 |
ST162..CP,LB W/O(LOCK),W/O LOCK,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71931-1401006 |
ST162..CP,LB W/O(LOCK),W/O LOCK,BROWN,SABLE,TRIM4# |
1 | ||
| 71930-1408001 |
ST162 W(LOCK),W/LOCK,BLACK,BLACK,TRIM1# |
1 | ||
| 71931-1401001 |
ST162 W/O(LOCK),W/O LOCK,BLACK,BLACK,TRIM1# |
1 | ||
| 71930-1408014 |
ST162..CP,LB W(LOCK),W/LOCK,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1408006 |
ST162..CP,LB W(LOCK),W/LOCK,BROWN,SABLE,TRIM4# |
1 | ||
| 71931-1401014 |
ST162..CP,LB W/O(LOCK),W/O LOCK,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71931-1401006 |
ST162..CP,LB W/O(LOCK),W/O LOCK,BROWN,SABLE,TRIM4# |
1 | ||
| 71930-1408001 |
ST162 W(LOCK),W/LOCK,BLACK,BLACK,TRIM1# |
1 | ||
| 71931-1401001 |
ST162 W/O(LOCK),W/O LOCK,BLACK,BLACK,TRIM1# |
1 | ||
| 71930-1408014 |
ST162..CP,LB W(LOCK),W/LOCK,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72760A - ADJUSTER ASSY, LUMBAR SUPPORT | ||||
| 72750-20070 |
ST162..CP,LB |
1 | ||
| Common parts | ||||
| 90149-60055 | ||||
| 90159-60081 | ||||
| 90179-08123 | ||||
| 91651-60818 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8511 | ||||
| 8513 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
