ST162L-BCPVFW (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 3SGEL
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )CP

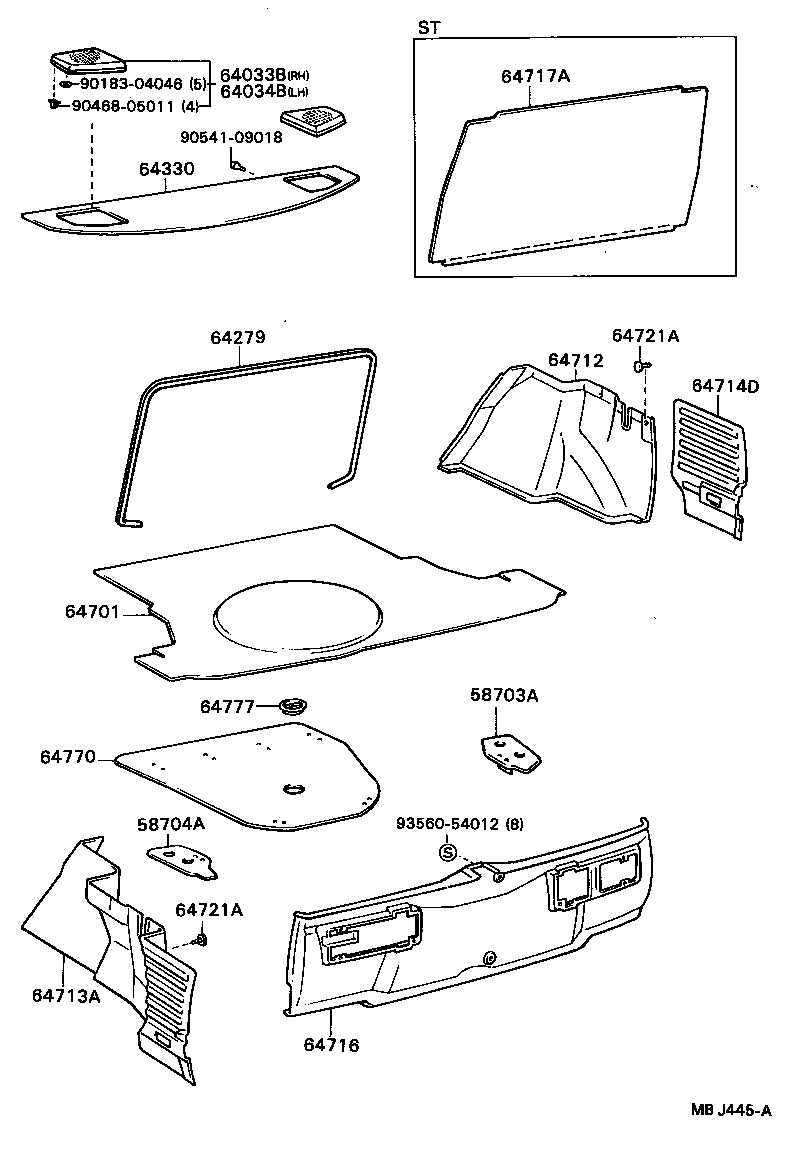

Click highlighted areas on diagram

diagram 58703A 58704A 64033B 64034B 64279 64330 64330E 64701 64712 64713A 64714D 64716 64717A 64721A 64721A 64770 64777 9018304046 9046805011 9054109018 9356054012
Part # Description Qty Price
Common parts
90183-04046
90468-05011
90541-09018
93560-54012

(8508- )CP,CVT

Click highlighted areas on diagram

diagram 58703A 58704A 64033B 64034B 64279 64330 64701 64712 64713A 64714D 64716 64717A 64721A 64721A 64770 64777 9018304046 9046805011 9054109018 9356054012
Part # Description Qty Price
58703A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58703-20080

AT160,ST162..CP,CVT

 1
58704A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
58704-20040

AT160,ST162..CP,CVT

 1
64033B - GRILLE SUB-ASSY, REAR SPEAKER, RH
64033-2002003

AT160,ST162..CP

GRAY,SHADOW GRAY,TRIM1#

 1
64033-2002004

AT160,ST162..CP

BLUE,DEEP BLUE,TRIM8#

 1
64033-2002006

AT160,ST162..CP

BROWN,BROWN,TRIM4#

 1
64034B - GRILLE SUB-ASSY, REAR SPEAKER, LH
64034-2002004

AT160,ST162..CP

BLUE,DEEP BLUE,TRIM8#

 1
64034-2002006

AT160,ST162..CP

BROWN,BROWN,TRIM4#

 1
64034-2002003

AT160,ST162..CP

GRAY,SHADOW GRAY,TRIM1#

 1
64279 - PROTECTOR, ROOM PARTITION
64279-2003006

AT160,ST162..CP..TWC

BROWN,BROWN,TRIM4#

 1
64279-2003003

AT160,ST162..CP..TWC

GRAY,SHADOW GRAY,TRIM1#

 1
64279-2003004

AT160,ST162..CP..TWC

BLUE,DEEP BLUE,TRIM8#

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-2077004

AT160,ST162..CP..TWC

W/O SPEAKER,BLUE,DEEP BLUE,TRIM8#

 1
64330-2077003

AT160,ST162..CP..TWC

W/O SPEAKER,GRAY,SHADOW GRAY,TRIM1#

 1
64330-2077006

AT160,ST162..CP..TWC

W/O SPEAKER,BROWN,BROWN,TRIM4#

 1
64330-2067004

AT160,ST162..CP..TWC

W/SPEAKER,BLUE,DEEP BLUE,TRIM8#

 1
64330-2067003

AT160,ST162..CP..TWC

W/SPEAKER,GRAY,SHADOW GRAY,TRIM1#

 1
64330-2067006

AT160,ST162..CP..TWC

W/SPEAKER,BROWN,BROWN,TRIM4#

 1
64701 - MAT SUB-ASSY, LUGGAGE COMPARTMENT
64711-20360

AT160,ST162..(CP,CVT)..TWC

 1
64712 - COVER, LUGGAGE COMPARTMENT TRIM, RH
64712-20120

AT160,ST162..CP..TWC

 1
64712-20120

AT160,ST162..CP,CVT

 1
64713A - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
64072-20100

AT160,ST162..CP,CVT

 1
64072-20100

AT160,ST162..CP..TWC

 1
64714D - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
64714-20210

AT160,ST162..CP,CVT

 1
64714-20210

AT160,ST162..CP..TWC

 1
64716 - COVER, LUGGAGE COMPARTMENT, REAR CENTER
64716-20170

AT160,ST162..(CP,CVT)..TWC

 1
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-0704201

AT160,ST162..CP,CVT

BLACK,BLACK

 2
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-0704201

AT160,ST162..CP,CVT

BLACK,BLACK

 2
64770 - COVER ASSY, SPARE WHEEL
64770-20090

AT160,ST162..(CP,CVT)..TWC

 1
Common parts
90183-04046
90468-05011
90541-09018
93560-54012
