ST162L-BCPVFW (1985)
Toyota Celica
Production
Aug 1985
-
Aug 1987
Engine
3SGEL
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

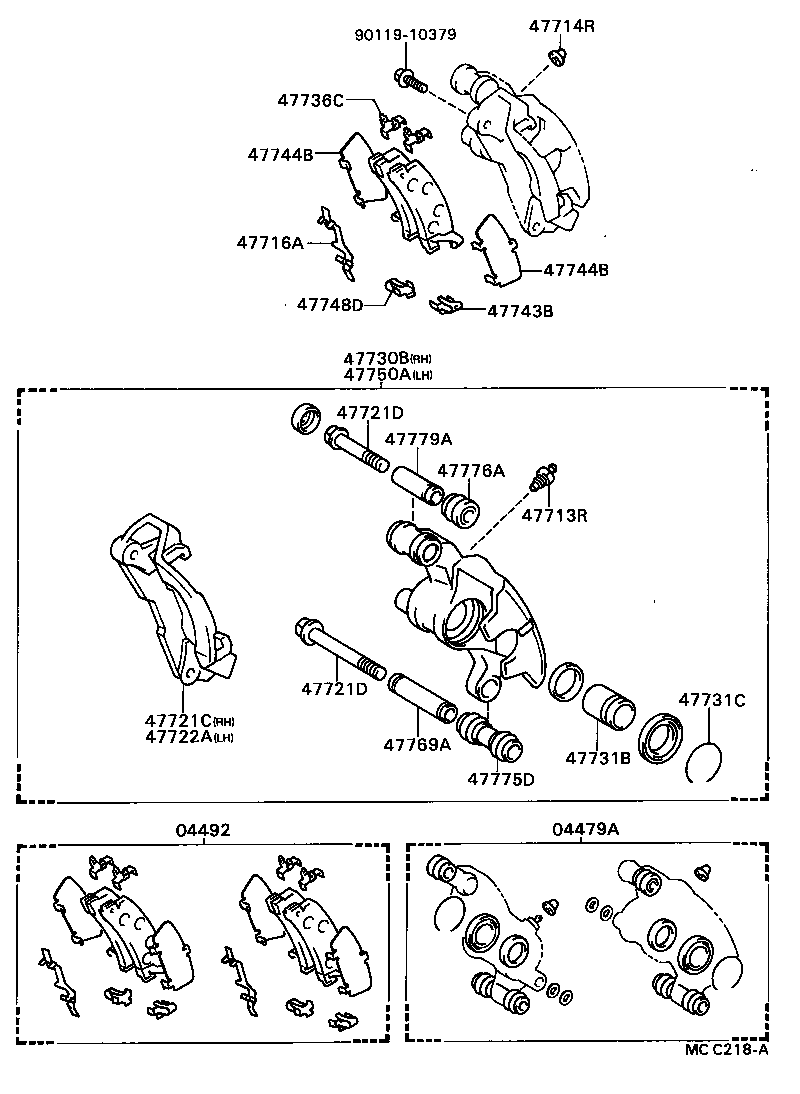

ILLUST NO. 1 OF 2(8508- )ST162
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-20090 |
ST162 |
1 | ||
| 04492 - PAD KIT, DISC BRAKE, REAR | ||||
| 04492-20010 |
ST162 |
1 | ||
| 47713R - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-20010 |
ST162 |
2 | ||
| 47714R - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
ST162 |
2 | ||
| 47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47716-20060 |
ST162 |
2 | ||
| 47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47721-20130 |
ST162 |
1 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90119-08431 |
ST162 *8-1.25PX62-20,*8-1.25PX62-20 |
2 | ||
| 90109-08098 |
ST162 *8-1.25PX56-15,*8-1.25PX56-15 |
1 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90119-08431 |
ST162 *8-1.25PX62-20,*8-1.25PX62-20 |
2 | ||
| 90109-08098 |
ST162 *8-1.25PX56-15,*8-1.25PX56-15 |
1 | ||
| 47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47721-20130 |
ST162 |
1 | ||
| 47730B - CYLINDER ASSY, REAR DISC BRAKE, RH | ||||
| 47730-20230 |
ST162 |
1 | ||
| 47731B - PISTON, REAR DISC BRAKE | ||||
| 47731-20110 |
ST162 |
2 | ||
| 47731C - RING, SET(FOR REAR DISC BRAKE PISTON) | ||||
| 90522-45001 |
ST162 |
1 | ||
| 47736C - PLATE, REAR DISC BRAKE PAD GUIDE | ||||
| 47736-12030 |
ST162 |
4 | ||
| 47743B - SPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE) | ||||
| 47743-12030 |
ST162 |
1 | ||
| 47744B - SHIM, ANTI-SQUEAL(FOR REAR DISC BRAKE) | ||||
| 47744-12070 |
ST162 |
4 | ||
| 47744B - SHIM, ANTI-SQUEAL(FOR REAR DISC BRAKE) | ||||
| 47744-12070 |
ST162 |
4 | ||
| 47748D - SPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47748-12090 |
ST162 |
1 | ||
| 47750A - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47750-20220 |
ST162 |
1 | ||
| 47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47769-28010 |
ST162 |
2 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47775-14010 |
ST162 |
2 | ||
| 47776A - BOOT, MAIN PIN(FOR REAR DISC BRAKE) | ||||
| 47776-12010 |
ST162 |
2 | ||
| 47779A - BUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE) | ||||
| 47779-12010 |
ST162 |
2 | ||
| Common parts | ||||
| 90119-10379 | ||||
ILLUST NO. 2 OF 2(8508- )ST162
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-33010 |
ST162 MARK AK PA511 |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-32050 |
ST162 |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-12010 |
ST162 |
1 | ||
