ST162L-BCPVFW (1985)
Toyota Celica
(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-2013003 |
AT160,ST162 SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 46201-2013024 |
AT160,ST162 DEEP BLUE,BLUE,TRIM8# |
1 | ||
| 46201-2013006 |
AT160,ST162 BROWN,BROWN,TRIM4# |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-2002003 |
AT160,ST162 SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 46217-2002026 |
AT160,ST162 BROWN,BROWN,TRIM4# |
1 | ||
| 46217-2002014 |
AT160,ST162 DEEP BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10069 |
AT160,ST162 |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-20050 |
AT160,ST162 |
1 | ||
| 46249 - SHIELD, PARKING BRAKE HOLE | ||||
| 46249-20020 |
AT160,ST162 |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46341-20040 |
AT160,ST162 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-20230 |
AT160,ST162 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-29025 |
ST162 |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01285 |
AT160,ST162 |
1 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90949-01016 |
AT160,ST162 |
2 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90949-01016 |
AT160,ST162 |
2 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 90949-01224 |
AT160,ST162 |
2 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 90949-01224 |
AT160,ST162 |
2 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-29035 |
ST162 |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-20020 |
AT160,ST162 |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-20020 |
AT160,ST162 |
2 | ||
| Common parts | ||||
| 90119-06197 | ||||
| 90119-06198 | ||||
| 90119-06315 | ||||
| 90119-08146 | ||||
| 90170-06004 | ||||
| 90179-06058 | ||||
| 94180-40600 | ||||

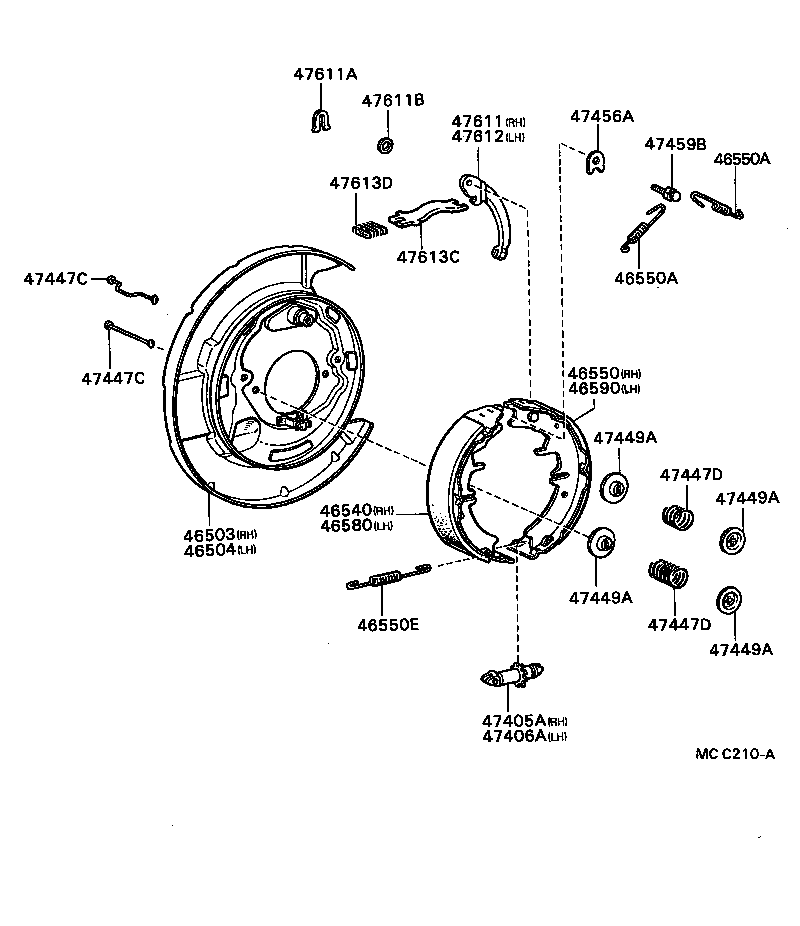

(8508- )ST162
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-20010 |
ST162 |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-20010 |
ST162 |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-20010 |
ST162 |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-20010 |
ST162 |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-16009 |
ST162 |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-16009 |
ST162 |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-12010 |
ST162 |
2 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46540-20010 |
ST162 |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46590-20010 |
ST162 |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-30040 |
ST162 |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-30040 |
ST162 |
1 | ||
| 47447C - PIN, SHOE HOLD DOWN SPRING(FOR PARKING BRAKE) | ||||
| 47447-20030 |
ST162 FR |
2 | ||
| 47447-22020 |
ST162 RR |
2 | ||
| 47447C - PIN, SHOE HOLD DOWN SPRING(FOR PARKING BRAKE) | ||||
| 47447-20030 |
ST162 FR |
2 | ||
| 47447-22020 |
ST162 RR |
2 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-14049 |
ST162 |
4 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-14049 |
ST162 |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
ST162 OUTER |
4 | ||
| 47449-22010 |
ST162 INNER |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
ST162 OUTER |
4 | ||
| 47449-22010 |
ST162 INNER |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
ST162 OUTER |
4 | ||
| 47449-22010 |
ST162 INNER |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
ST162 OUTER |
4 | ||
| 47449-22010 |
ST162 INNER |
4 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-20030 |
ST162 |
2 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
ST162 |
2 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-20030 |
ST162 |
1 | ||
| 47611A - WASHER, TYPE C(FOR PARKING BRAKE SHOE LEVER) | ||||
| 90213-07018 |
ST162 |
2 | ||
| 47611B - SHIM(FOR PARKING BRAKE SHOE LEVER) | ||||
| 90564-09184 |
ST162 T=0.3,T=0.3 |
2 | ||
| 90564-09186 |
ST162 T=0.9,T=0.9 |
2 | ||
| 90564-09185 |
ST162 T=0.6,T=0.6 |
2 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-20030 |
ST162 |
1 | ||
| 47613C - STRUT, PARKING BRAKE SHOE | ||||
| 47613-20040 |
ST162 RH |
1 | ||
| 47614-20010 |
ST162 LH |
1 | ||
| 47613D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-14002 |
ST162 |
2 | ||
(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-2013003 |
AT160,ST162 SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 46201-2013024 |
AT160,ST162 DEEP BLUE,BLUE,TRIM8# |
1 | ||
| 46201-2013006 |
AT160,ST162 BROWN,BROWN,TRIM4# |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-2002003 |
AT160,ST162 SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 46217-2002026 |
AT160,ST162 BROWN,BROWN,TRIM4# |
1 | ||
| 46217-2002014 |
AT160,ST162 DEEP BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10069 |
AT160,ST162 |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-20050 |
AT160,ST162 |
1 | ||
| 46249 - SHIELD, PARKING BRAKE HOLE | ||||
| 46249-20020 |
AT160,ST162 |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46341-20040 |
AT160,ST162 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-20230 |
AT160,ST162 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-29025 |
ST162 |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01285 |
AT160,ST162 |
1 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90949-01016 |
AT160,ST162 |
2 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90949-01016 |
AT160,ST162 |
2 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 90949-01224 |
AT160,ST162 |
2 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 90949-01224 |
AT160,ST162 |
2 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-29035 |
ST162 |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-20020 |
AT160,ST162 |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-20020 |
AT160,ST162 |
2 | ||
| Common parts | ||||
| 90119-06197 | ||||
| 90119-06198 | ||||
| 90119-06315 | ||||
| 90119-08146 | ||||
| 90170-06004 | ||||
| 90179-06058 | ||||
| 94180-40600 | ||||
