ST162L-BCPVFW (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 3SGEL
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

Click highlighted areas on diagram

diagram 1605 27020 27039 27113 27310 27310B 27330 27330A 27357 27359 27370 27371 27372 2738763020 2738770170 2738963020 27411 27443 27700A 9009900949 9009900959 9009900959 9009904966 9009905119 9009905171 9009905172 9009905172 9010110463 9010510038 9017906158 9020108011 9161160840 9331914025 9411041000 9451201000 9461211001 9461211001
Part # Description Qty Price
Common parts
27387-63020
27387-70170
27389-63020
90099-00949
90099-00959
90099-04966
90099-05119
90099-05171
90099-05172
90101-10463
90105-10038
90179-06158
90201-08011
91611-60840
93319-14025
94110-41000
94512-01000
94612-11001
Linked diagrams
1605

(8508- )

Click highlighted areas on diagram

diagram 1605 27020 27039 27113 27310 27310B 27330 27330A 27357 27359 27370 27371 27372 2738763020 2738770170 2738963020 27411 27443 27700A 9009900949 9009900959 9009900959 9009904966 9009905119 9009905171 9009905172 9009905172 9010110123 9010510038 9011908303 9017906158 9017910087 9020110344 9331914025
Part # Description Qty Price

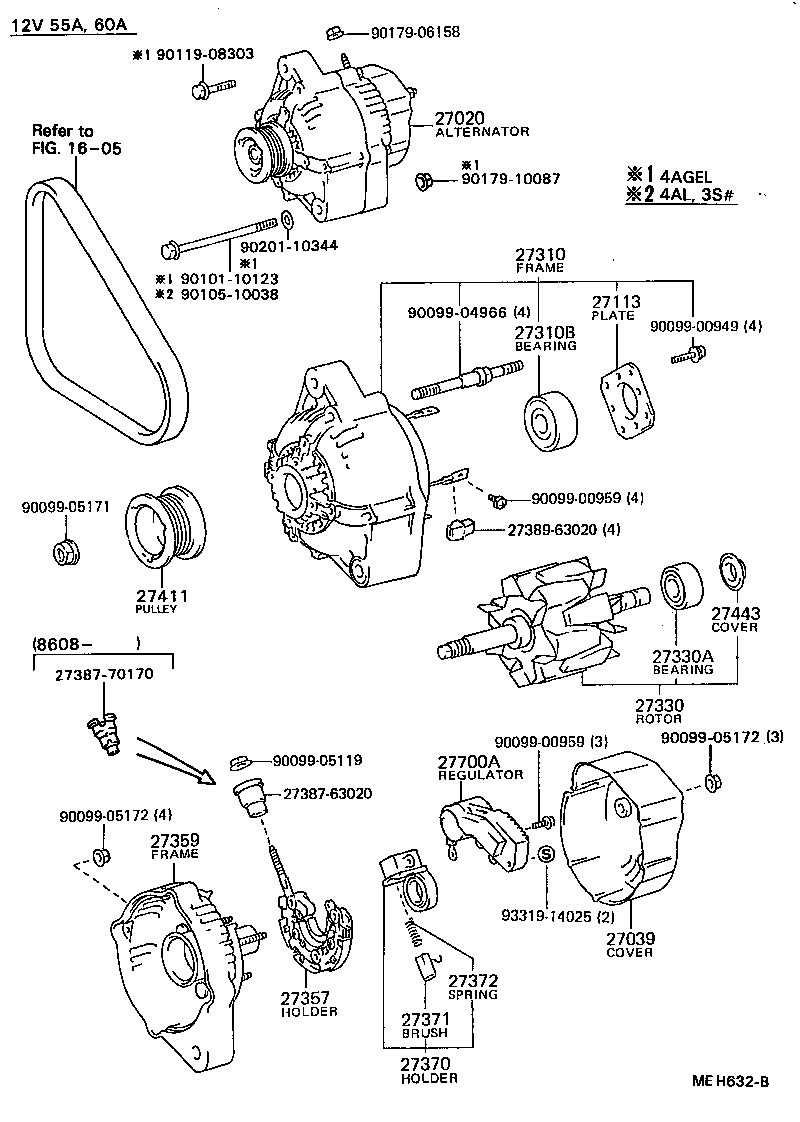

27020 - ALTERNATOR ASSY
27060-63101

3SG#..ST162

12V 60A,12V 60A

 1
27060-63102

3SG#..ST162

12V 60A

 1
27060-63100

3SG#..ST162

12V 60A,12V 60A

 1
27039 - COVER, ALTERNATOR REAR END
27039-72010

4A#,3SG#..AT160,ST162

12V 55A,60A

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-72100

4A#,3SG#..AT160,ST162

12V 55A,60A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-70071

4AL,3SG#..AT160,ST162

12V 55A,60A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10159

4A#,3SG#..AT160,ST162

12V 55A,60A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-72100

4A#,3SG#..AT160,ST162

12V 55A,60A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

4A#,3SG#..AT160,ST162

12V 55A,60A

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63020

4AGEL,3SG#..AT160,ST162

12V 60A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-63081

3SG#..ST162

12V 60A

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-63021

4AL,3SG#..AT160,ST162

12V 55A,60A

 1
27370-72100

4AL,3SG#..AT160,ST162

12V 55A,60A

 1
27371 - BRUSH, ALTERNATOR
27371-63020

4A#,3SG#..AT160,ST162

12V 55A,60A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-72100

4A#,3SG#..AT160,ST162

12V 55A,60A

 2
27411 - PULLEY, ALTERNATOR
27411-63081

4AL,3SG#..AT160,ST162

12V 55A,60A

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

4A#,3SG#..AT160,ST162

12V 55A,60A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-63021

4A#,3SG#..AT160,ST162

12V 55A,60A

 1
Common parts
27387-63020
27387-70170
27389-63020
90099-00949
90099-00959
90099-04966
90099-05119
90099-05171
90099-05172
90101-10123
90105-10038
90119-08303
90179-06158
90179-10087
90201-10344
93319-14025
Linked diagrams
1605
