ST162L-BCPVFW (1985)

Toyota Celica

Production Aug 1985 - Aug 1987
Engine 3SGEL
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

Click highlighted areas on diagram

diagram 9541110030 9541110130 9541110160 9541119995
Part # Description Qty Price
Common parts
95411-10030
95411-10130
95411-10160
95411-19995

(8508- )3SGEL

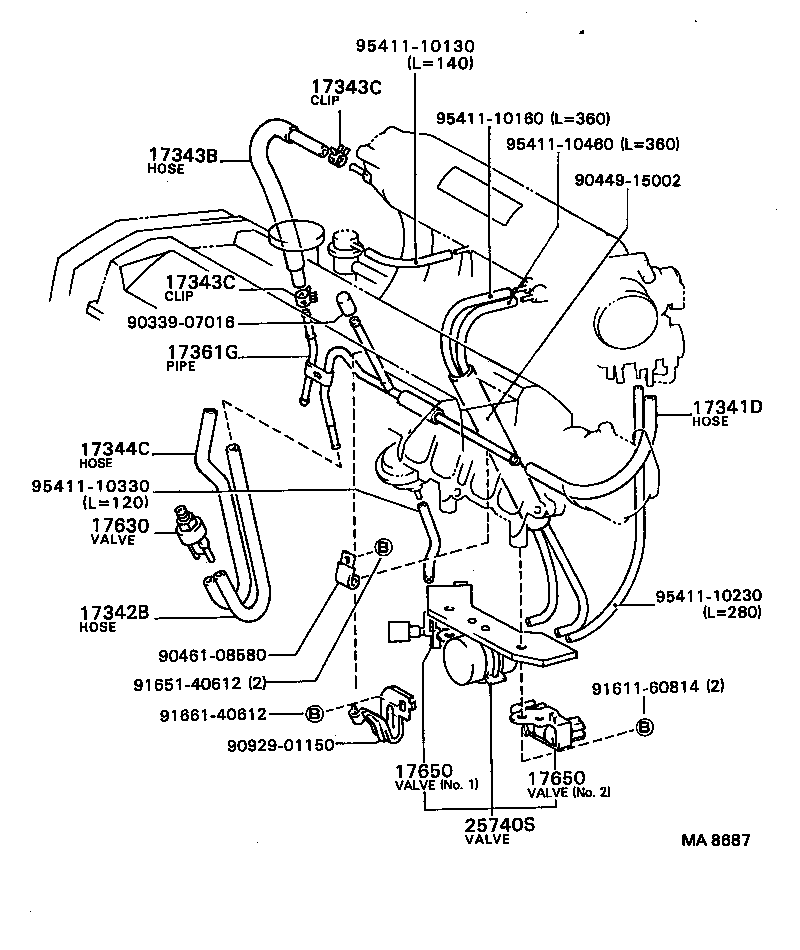

Click highlighted areas on diagram

diagram 17341D 17342B 17343B 17343C 17343C 17344C 17361G 17630 17650 17650 25740S 9033907016 9044915002 9046108580 9092901150 9161160814 9165140612 9166140612 9541110130 9541110160 9541110230 9541110330 9541110460
Part # Description Qty Price
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-88361

3SG#..ST162

 1
17341-88360

3SG#..ST162

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-88360

3SG#..ST162

 1
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-88361

3SG#..ST162

 1
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
96132-30400

3SG#..ST162

 2
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
96132-30400

3SG#..ST162

 2
17344C - HOSE, NO.4(FOR IDLE-UP)
17344-88360

3SG#..ST162

 1
17361G - TUBE, AIR(FOR IDLE-UP)
17361-88361

3SG#..ST162

 1
17630 - VALVE ASSY, AIR CONTROL
17630-70020

3SG#..ST162

 1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-88360

3SG#..ST162

NO.1

 1
89570-88365

3SG#..ST162

NO.2

 1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-88360

3SG#..ST162

NO.1

 1
89570-88365

3SG#..ST162

NO.2

 1
25740S - VALVE ASSY, AIR CONTROL(FOR IDLE SPEED CONTROL)
25740-88360

3SG#..ST162

 1
Common parts
90339-07016
90449-15002
90461-08580
90929-01150
91611-60814
91651-40612
91661-40612
95411-10130
95411-10160
95411-10230
95411-10330
95411-10460

(8508- )3SG#

Click highlighted areas on diagram

diagram 9541110030 9541110130 9541110160 9541119995
Part # Description Qty Price
Common parts
95411-10030
95411-10130
95411-10160
95411-19995
