ST162L-BCPVFA (1987)
Toyota Celica
(8708- )3SG#

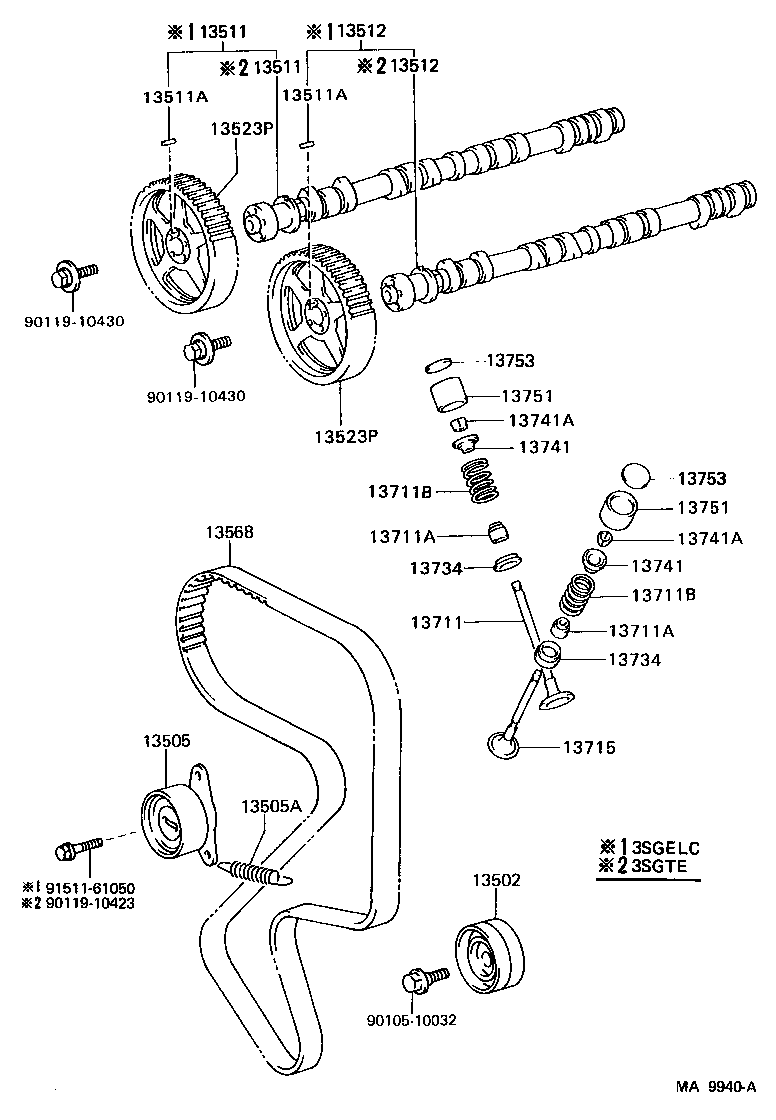

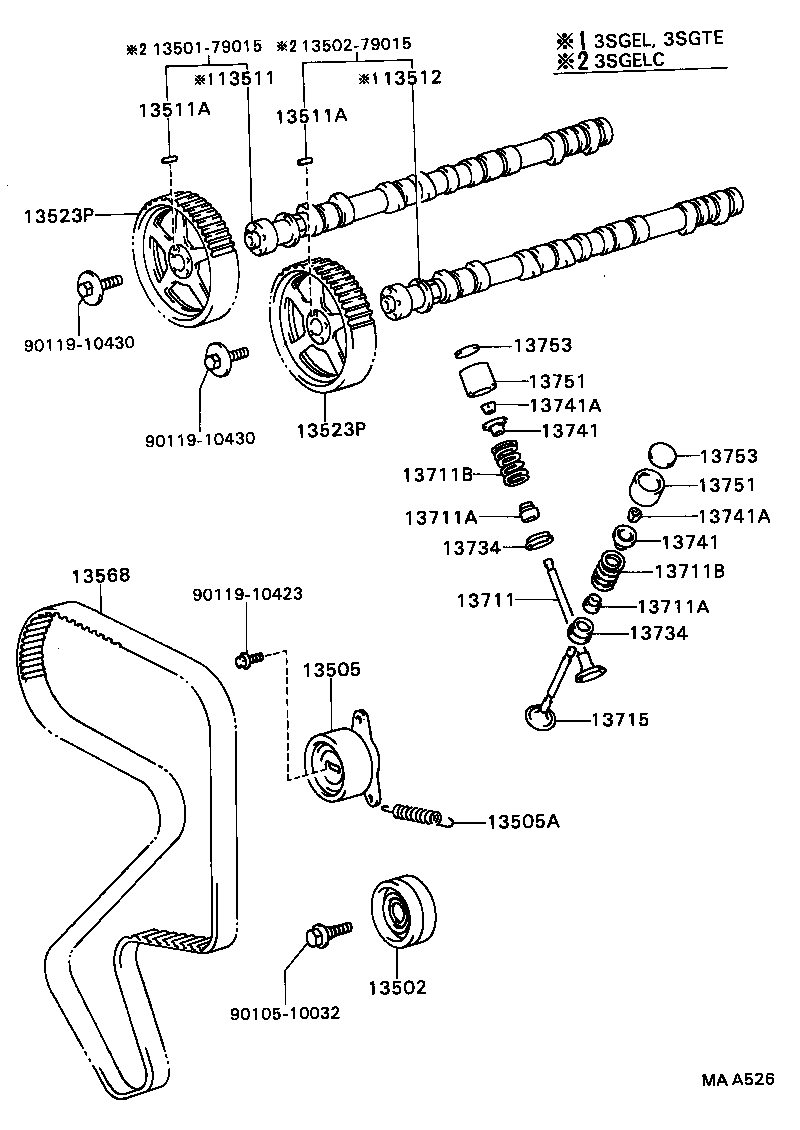

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13502 - IDLER SUB-ASSY, TIMING BELT, NO.2 | ||||
| 13503-63010 |
3SFE,3SGELC..ST162 |
1 | ||
| 13503-63010 |
3SGELC..ST162 |
1 | ||
| 13505 - IDLER SUB-ASSY, TIMING BELT, NO.1 | ||||
| 13505-74030 |
3SG#..ST16# |
1 | ||
| 13505-88360 |
3SG#..ST16# |
1 | ||
| 13505A - SPRING, TENSION(FOR IDLER) | ||||
| 90506-18045 |
3SG#..ST16# |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-79015 |
3SGELC..ST162 CAMSHAFT |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-79015 |
3SGELC..ST162 CAMSHAFT |
1 | ||
| 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) | ||||
| 90250-05021 |
3SG#..ST16# L=13.8,OD=5.0 |
2 | ||
| 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) | ||||
| 90250-05021 |
3SG#..ST16# L=13.8,OD=5.0 |
2 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-79015 |
3SGELC..ST162 CAMSHAFT,NO.2 |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-79015 |
3SGELC..ST162 CAMSHAFT,NO.2 |
1 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-88360 |
3SGELC..ST162 |
2 | ||
| 13523-88360 |
3SG#..ST16# |
2 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-88360 |
3SGELC..ST162 |
2 | ||
| 13523-88360 |
3SG#..ST16# |
2 | ||
| 13568 - BELT, TIMING | ||||
| 13568-88381 |
3SG#..ST16# |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-88360 |
3SGELC..ST162 |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02062 |
3SFE,3SG#..ST16# INTAKE SIDE |
8 | ||
| 90913-02066 |
3SFE,3SG#..ST16# EXHAUST SIDE |
8 | ||
| 90913-02062 |
3SFE,3SG#..ST16# INTAKE SIDE |
8 | ||
| 90913-02062 |
3SFE,3SGELC..ST162 INTAKE SIDE |
8 | ||
| 90913-02066 |
3SFE,3SGELC..ST162 EXHAUST SIDE |
8 | ||
| 90913-02066 |
3SFE,3SG#..ST16# EXHAUST SIDE |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02062 |
3SFE,3SG#..ST16# INTAKE SIDE |
8 | ||
| 90913-02066 |
3SFE,3SG#..ST16# EXHAUST SIDE |
8 | ||
| 90913-02062 |
3SFE,3SG#..ST16# INTAKE SIDE |
8 | ||
| 90913-02062 |
3SFE,3SGELC..ST162 INTAKE SIDE |
8 | ||
| 90913-02066 |
3SFE,3SGELC..ST162 EXHAUST SIDE |
8 | ||
| 90913-02066 |
3SFE,3SG#..ST16# EXHAUST SIDE |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-33003 |
3SGELC..ST162 |
16 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-33003 |
3SGELC..ST162 |
16 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-88360 |
3SGELC..ST162 |
8 | ||
| 13715-88360 |
3SG#..ST16# |
8 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-88300 |
3SG#..ST16# |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-88300 |
3SG#..ST16# |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-88300 |
3SG#..ST16# |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-88300 |
3SG#..ST16# |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03021 |
3SFE,3SG#..ST16# |
32 | ||
| 90913-03021 |
3SFE,3SG#..ST16# |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03021 |
3SFE,3SG#..ST16# |
32 | ||
| 90913-03021 |
3SFE,3SG#..ST16# |
32 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-16010 |
3SFE,3SG#..ST16# |
16 | ||
| 13751-16010 |
3S#..ST162 |
16 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-16010 |
3SFE,3SG#..ST16# |
16 | ||
| 13751-16010 |
3S#..ST162 |
16 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-16040 |
3SGELC..ST162 T=2.55 |
1 | ||
| 13753-16060 |
3SGELC..ST162 T=2.60 |
1 | ||
| 13753-16240 |
3SGELC..ST162 T=3.05 |
1 | ||
| 13753-16140 |
3SGELC..ST162 T=2.80 |
1 | ||
| 13753-16200 |
3SGELC..ST162 T=2.95 |
1 | ||
| 13753-16080 |
3SGELC..ST162 T=2.65 |
1 | ||
| 13753-16160 |
3SGELC..ST162 T=2.85 |
1 | ||
| 13753-16020 |
3SGELC..ST162 T=2.50 |
1 | ||
| 13753-16120 |
3SGELC..ST162 T=2.75 |
1 | ||
| 13753-16100 |
3SGELC..ST162 T=2.70 |
1 | ||
| 13753-16280 |
3SGELC..ST162 T=3.15 |
1 | ||
| 13753-16260 |
3SGELC..ST162 T=3.10 |
1 | ||
| 13753-16340 |
3SGELC..ST162 T=3.30 |
1 | ||
| 13753-16220 |
3SGELC..ST162 T=3.00 |
1 | ||
| 13753-16180 |
3SGELC..ST162 T=2.90 |
1 | ||
| 13753-16320 |
3SGELC..ST162 T=3.25 |
1 | ||
| 13753-16300 |
3SGELC..ST162 T=3.20 |
1 | ||
| 13753-16240 |
3SGELC..ST162 T=3.05 |
1 | ||
| 13753-16240 |
3SG#..ST16# T=3.05 |
1 | ||
| 13753-16020 |
3SG#..ST16# T=2.50 |
1 | ||
| 13753-16080 |
3SG#..ST16# T=2.65 |
1 | ||
| 13753-16060 |
3SG#..ST16# T=2.60 |
1 | ||
| 13753-16220 |
3SG#..ST16# T=3.00 |
1 | ||
| 13753-16140 |
3SG#..ST16# T=2.80 |
1 | ||
| 13753-16300 |
3SG#..ST16# T=3.20 |
1 | ||
| 13753-16120 |
3SG#..ST16# T=2.75 |
1 | ||
| 13753-16160 |
3SG#..ST16# T=2.85 |
1 | ||
| 13753-16180 |
3SG#..ST16# T=2.90 |
1 | ||
| 13753-16260 |
3SG#..ST16# T=3.10 |
1 | ||
| 13753-16280 |
3SG#..ST16# T=3.15 |
1 | ||
| 13753-16240 |
3SG#..ST16# T=3.05 |
1 | ||
| 13753-16340 |
3SG#..ST16# T=3.30 |
1 | ||
| 13753-16200 |
3SG#..ST16# T=2.95 |
1 | ||
| 13753-16040 |
3SG#..ST16# T=2.55 |
1 | ||
| 13753-16320 |
3SG#..ST16# T=3.25 |
1 | ||
| 13753-16100 |
3SG#..ST16# T=2.70 |
1 | ||
| 13753-16060 |
3SFE,3SG#..ST16# T=2.60 |
1 | ||
| 13753-16040 |
3SFE,3SG#..ST16# T=2.55 |
1 | ||
| 13753-16120 |
3SFE,3SG#..ST16# T=2.75 |
1 | ||
| 13753-16080 |
3SFE,3SG#..ST16# T=2.65 |
1 | ||
| 13753-16100 |
3SFE,3SG#..ST16# T=2.70 |
1 | ||
| 13753-16160 |
3SFE,3SG#..ST16# T=2.85 |
1 | ||
| 13753-16140 |
3SFE,3SG#..ST16# T=2.80 |
1 | ||
| 13753-16300 |
3SFE,3SG#..ST16# T=3.20 |
1 | ||
| 13753-16220 |
3SFE,3SG#..ST16# T=3.00 |
1 | ||
| 13753-16180 |
3SFE,3SG#..ST16# T=2.90 |
1 | ||
| 13753-16240 |
3SFE,3SG#..ST16# T=3.05 |
1 | ||
| 13753-16200 |
3SFE,3SG#..ST16# T=2.95 |
1 | ||
| 13753-16340 |
3SFE,3SG#..ST16# T=3.30 |
1 | ||
| 13753-16320 |
3SFE,3SG#..ST16# T=3.25 |
1 | ||
| 13753-16260 |
3SFE,3SG#..ST16# T=3.10 |
1 | ||
| 13753-16280 |
3SFE,3SG#..ST16# T=3.15 |
1 | ||
| 13753-16020 |
3SFE,3SG#..ST16# T=2.50 |
1 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-16040 |
3SGELC..ST162 T=2.55 |
1 | ||
| 13753-16060 |
3SGELC..ST162 T=2.60 |
1 | ||
| 13753-16240 |
3SGELC..ST162 T=3.05 |
1 | ||
| 13753-16140 |
3SGELC..ST162 T=2.80 |
1 | ||
| 13753-16200 |
3SGELC..ST162 T=2.95 |
1 | ||
| 13753-16080 |
3SGELC..ST162 T=2.65 |
1 | ||
| 13753-16160 |
3SGELC..ST162 T=2.85 |
1 | ||
| 13753-16020 |
3SGELC..ST162 T=2.50 |
1 | ||
| 13753-16120 |
3SGELC..ST162 T=2.75 |
1 | ||
| 13753-16100 |
3SGELC..ST162 T=2.70 |
1 | ||
| 13753-16280 |
3SGELC..ST162 T=3.15 |
1 | ||
| 13753-16260 |
3SGELC..ST162 T=3.10 |
1 | ||
| 13753-16340 |
3SGELC..ST162 T=3.30 |
1 | ||
| 13753-16220 |
3SGELC..ST162 T=3.00 |
1 | ||
| 13753-16180 |
3SGELC..ST162 T=2.90 |
1 | ||
| 13753-16320 |
3SGELC..ST162 T=3.25 |
1 | ||
| 13753-16300 |
3SGELC..ST162 T=3.20 |
1 | ||
| 13753-16240 |
3SGELC..ST162 T=3.05 |
1 | ||
| 13753-16240 |
3SG#..ST16# T=3.05 |
1 | ||
| 13753-16020 |
3SG#..ST16# T=2.50 |
1 | ||
| 13753-16080 |
3SG#..ST16# T=2.65 |
1 | ||
| 13753-16060 |
3SG#..ST16# T=2.60 |
1 | ||
| 13753-16220 |
3SG#..ST16# T=3.00 |
1 | ||
| 13753-16140 |
3SG#..ST16# T=2.80 |
1 | ||
| 13753-16300 |
3SG#..ST16# T=3.20 |
1 | ||
| 13753-16120 |
3SG#..ST16# T=2.75 |
1 | ||
| 13753-16160 |
3SG#..ST16# T=2.85 |
1 | ||
| 13753-16180 |
3SG#..ST16# T=2.90 |
1 | ||
| 13753-16260 |
3SG#..ST16# T=3.10 |
1 | ||
| 13753-16280 |
3SG#..ST16# T=3.15 |
1 | ||
| 13753-16240 |
3SG#..ST16# T=3.05 |
1 | ||
| 13753-16340 |
3SG#..ST16# T=3.30 |
1 | ||
| 13753-16200 |
3SG#..ST16# T=2.95 |
1 | ||
| 13753-16040 |
3SG#..ST16# T=2.55 |
1 | ||
| 13753-16320 |
3SG#..ST16# T=3.25 |
1 | ||
| 13753-16100 |
3SG#..ST16# T=2.70 |
1 | ||
| 13753-16060 |
3SFE,3SG#..ST16# T=2.60 |
1 | ||
| 13753-16040 |
3SFE,3SG#..ST16# T=2.55 |
1 | ||
| 13753-16120 |
3SFE,3SG#..ST16# T=2.75 |
1 | ||
| 13753-16080 |
3SFE,3SG#..ST16# T=2.65 |
1 | ||
| 13753-16100 |
3SFE,3SG#..ST16# T=2.70 |
1 | ||
| 13753-16160 |
3SFE,3SG#..ST16# T=2.85 |
1 | ||
| 13753-16140 |
3SFE,3SG#..ST16# T=2.80 |
1 | ||
| 13753-16300 |
3SFE,3SG#..ST16# T=3.20 |
1 | ||
| 13753-16220 |
3SFE,3SG#..ST16# T=3.00 |
1 | ||
| 13753-16180 |
3SFE,3SG#..ST16# T=2.90 |
1 | ||
| 13753-16240 |
3SFE,3SG#..ST16# T=3.05 |
1 | ||
| 13753-16200 |
3SFE,3SG#..ST16# T=2.95 |
1 | ||
| 13753-16340 |
3SFE,3SG#..ST16# T=3.30 |
1 | ||
| 13753-16320 |
3SFE,3SG#..ST16# T=3.25 |
1 | ||
| 13753-16260 |
3SFE,3SG#..ST16# T=3.10 |
1 | ||
| 13753-16280 |
3SFE,3SG#..ST16# T=3.15 |
1 | ||
| 13753-16020 |
3SFE,3SG#..ST16# T=2.50 |
1 | ||
| Common parts | ||||
| 90105-10032 | ||||
| 90119-10423 | ||||
| 90119-10430 | ||||
| 91511-61050 | ||||
(8708- )3SG#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 13501-79015 | ||||
| 13502-79015 | ||||
| 90105-10032 | ||||
| 90119-10423 | ||||
| 90119-10430 | ||||
