ST162L-BCMVFW (1987)

Toyota Celica

Production Aug 1987 - Aug 1988
Engine 3SGEL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

diagram 86011A 86011A 86011C 86120 86120 86120 86211 86212 86260 86270A 86280 86285 9011906005 9011906005 9014950032 9015950173 9015950173 9015960128 9018904022 9356014014
Part # Description Qty Price
Common parts
90119-06005
90149-50032
90159-50173
90159-60128
90189-04022
93560-14014

ILLUST NO. 2 OF 2(8708- )

Click highlighted areas on diagram

diagram 8612014770 8612016371 8612016381 8612020332 8612020342 8612020630 8612020670 8612020680 8612020690 86128 8612812200 8612812220 8612812220 8612812300 8612814880 8612814880 8612814900 8612814900 8612816020 8612816020 8612816200 8612816220 8612816220 8612816220 8612816220 8612820020 8612820040 8612820040 8612820040 8612820040 8612828160 8612828160
Part # Description Qty Price
Common parts
86120-14770
86120-16371
86120-16381
86120-20332
86120-20342
86120-20630
86120-20670
86120-20680
86120-20690
86128-12200
86128-12220
86128-12300
86128-14880
86128-14900
86128-16020
86128-16200
86128-16220
86128-20020
86128-20040
86128-28160

ILLUST NO. 2 OF 2(8708- )

Click highlighted areas on diagram

diagram 8612014780 8612020790 8612020800 8612020810 8612020820 8612020830 8612028040 8612028050 8612032390 8612828140 8612828140 8612828160 8612828160 8612828160 8612828160
Part # Description Qty Price
Common parts
86120-14780
86120-20790
86120-20800
86120-20810
86120-20820
86120-20830
86120-28040
86120-28050
86120-32390
86128-28140
86128-28160

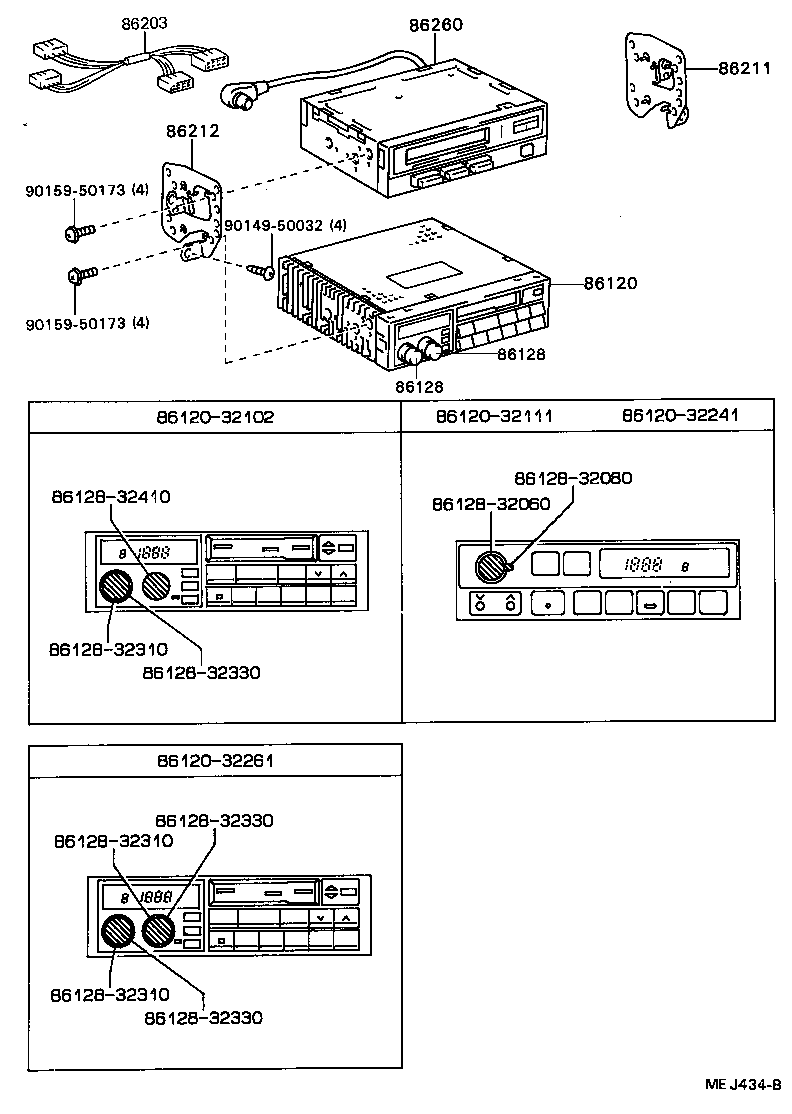

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

diagram 86120 8612032102 8612032111 8612032241 8612032261 86128 86128 8612832060 8612832080 8612832310 8612832310 8612832310 8612832330 8612832330 8612832330 8612832410 86203 86211 86212 86260 9014950032 9015950173 9015950173
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-32261

AT160,ST162..CP,LB

LW/MW/UKW *AF MPX ETR CASSETTE AIR

 1
86120-32241

AT160,ST162..CP,LB

FUJITSU TEN

 1
86120-32111

AT160,ST162..CP,LB

FUJITSU TEN,LW/MW/UKW MPX ETR AIR

 1
86120-32102

AT160,ST162..CP,LB

MATSUSHITA,LW/MW/UKW MPX ETR CASSETTE AIR

 1
86128 - KNOB, RADIO RECEIVER
86128-32080

AT160,ST162..CP,LB

TONE(86120-32241,86120-32111)

 1
86128-32310

AT160,ST162..CP,LB

VOL,TREB(86120-32261)

 2
86128-32310

AT160,ST162..CP,LB

VOL(86120-32102)

 1
86128-32330

AT160,ST162..CP,LB

BAL(86120-32102)

 1
86128-32410

AT160,ST162..CP,LB

TONE(86120-32102)

 1
86128-32060

AT160,ST162..CP,LB

PWR/VOL(86120-32241,86120-32111)

 1
86128-32330

AT160,ST162..CP,LB

FADE,BASS(86120-32261)

 2
86128 - KNOB, RADIO RECEIVER
86128-32080

AT160,ST162..CP,LB

TONE(86120-32241,86120-32111)

 1
86128-32310

AT160,ST162..CP,LB

VOL,TREB(86120-32261)

 2
86128-32310

AT160,ST162..CP,LB

VOL(86120-32102)

 1
86128-32330

AT160,ST162..CP,LB

BAL(86120-32102)

 1
86128-32410

AT160,ST162..CP,LB

TONE(86120-32102)

 1
86128-32060

AT160,ST162..CP,LB

PWR/VOL(86120-32241,86120-32111)

 1
86128-32330

AT160,ST162..CP,LB

FADE,BASS(86120-32261)

 2
86203 - WIRE, RADIO
86203-20180

AT160,ST162..CP,LB

 1
86211 - BRACKET, RADIO, NO.1
86211-20150

AT160,ST162..(CP,LB)..LHD

 1
86212 - BRACKET, RADIO, NO.2
86212-20190

AT160,ST162..(CP,LB)..LHD

 1
86260 - TAPE PLAYER ASSY
86260-16140

AT160,ST162..CP,LB

W(AMP)

 1
Common parts
86120-32102
86120-32111
86120-32241
86120-32261
86128-32060
86128-32080
86128-32310
86128-32330
86128-32410
90149-50032
90159-50173

ILLUST NO. 2 OF 2(8708- )

Click highlighted areas on diagram

diagram 86011A 86011C 9098004041 9098004043 9098004062 9098005073
Part # Description Qty Price

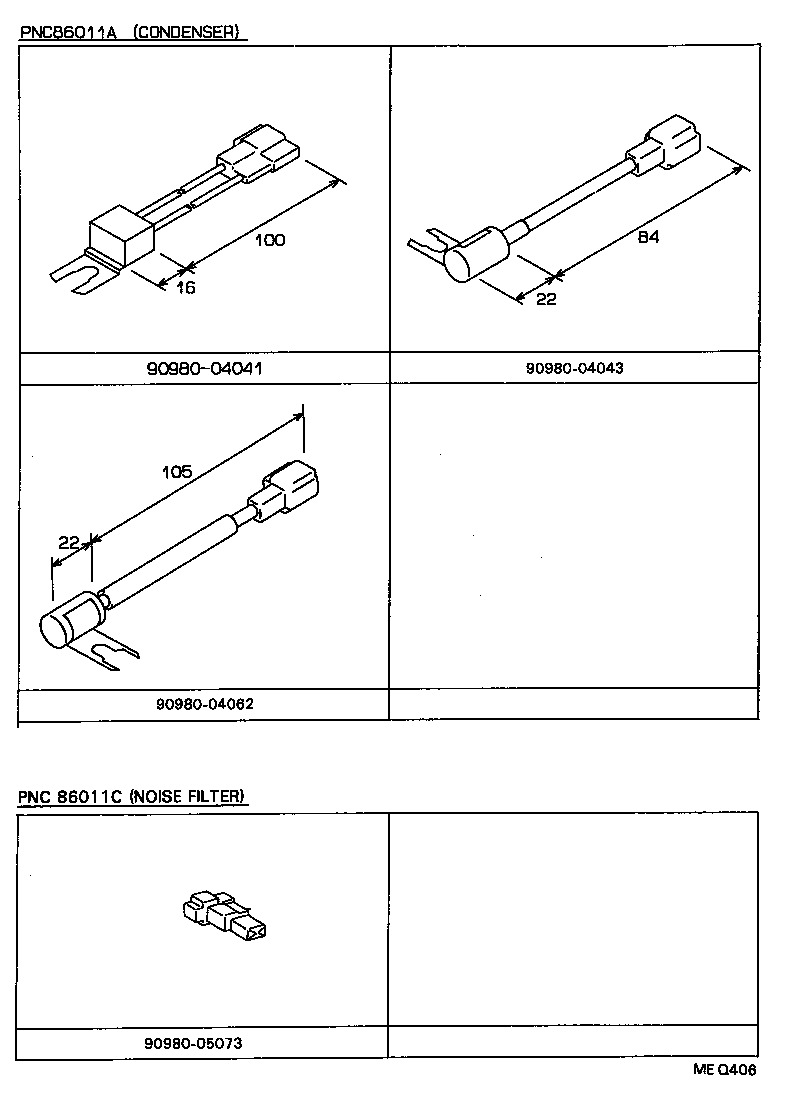

86011A - CONDENSER, RADIO SETTING
90980-04041

AT160,ST162..LHD..TWC

IGNITION COIL

 1
90980-04043

AT160,ST16#..LHD

DEFOGGER

 1
86011C - FILTER, NOISE
90980-05073

AT160,ST16#

 1
Common parts
90980-04041
90980-04043
90980-04062
90980-05073
