ST162L-BCMVFC (1985)
Toyota Celica
Production
Aug 1985
-
Aug 1987
Engine
3SGELC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )

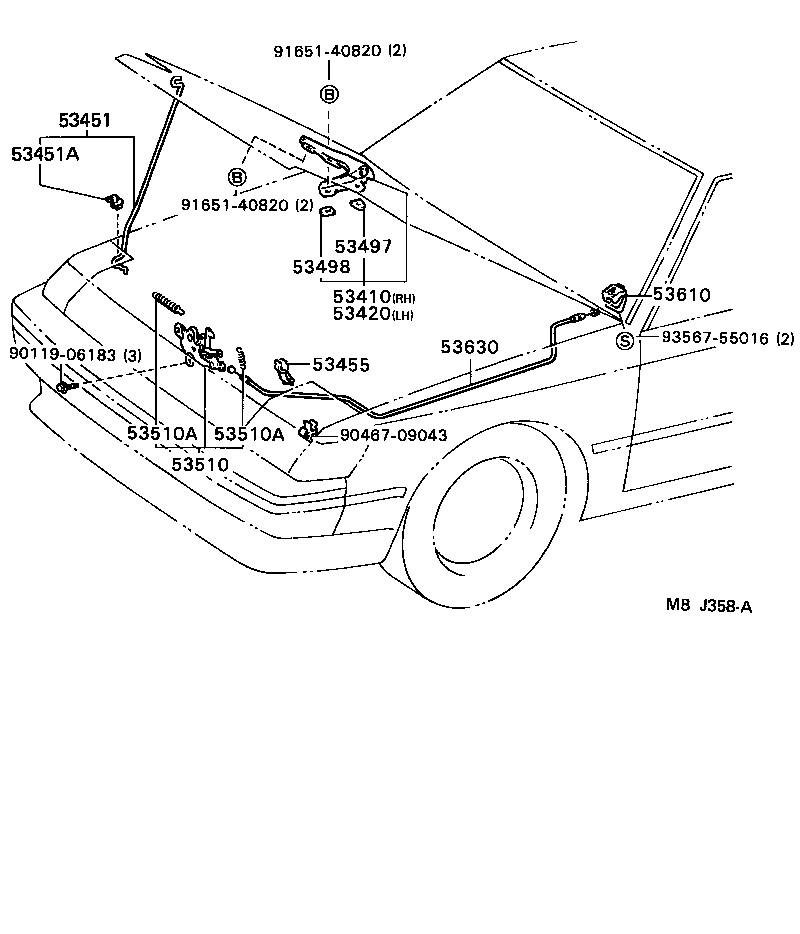

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06183 | ||||
| 90467-09043 | ||||
| 91651-40820 | ||||
| 93567-55016 | ||||
(8508- )

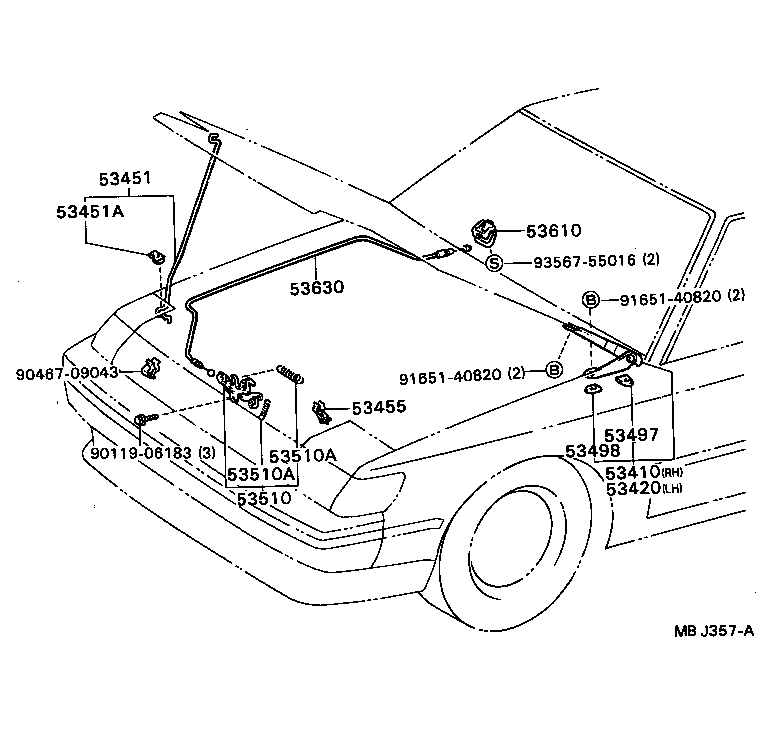

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-32010 |
AT160,ST162 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-32010 |
AT160,ST162 |
1 | ||
| 53451 - ROD, HOOD SUPPORT | ||||
| 53451-20030 |
AT160,ST162 |
1 | ||
| 53451A - GROMMET(FOR HOOD SUPPORT ROD) | ||||
| 90480-01340 |
AT160,ST162 |
1 | ||
| 53455 - CLAMP, HOOD SUPPORT ROD | ||||
| 53455-20010 |
AT160,ST162 |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-32030 |
AT160,ST162 |
2 | ||
| 53498 - PAD, HOOD HINGE, NO.2 | ||||
| 53498-12010 |
AT160,ST162 |
2 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-20190 |
AT160,ST162..LHD |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-20008 |
AT160,ST162 WD=2.0,CW=17,WD=2.0,CW=17 |
1 | ||
| 90506-09029 |
AT160,ST162 WD=0.9,WD=0.9,CW=26.5 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-20008 |
AT160,ST162 WD=2.0,CW=17,WD=2.0,CW=17 |
1 | ||
| 90506-09029 |
AT160,ST162 WD=0.9,WD=0.9,CW=26.5 |
1 | ||
| 53610 - LEVER ASSY, HOOD LOCK RELEASE | ||||
| 53601-2006003 |
AT160,ST162 GRAY,GRAY,TRIM1# |
1 | ||
| 53601-2006005 |
AT160,ST162..CP,LB BEIGE,BEIGE,TRIM4# |
1 | ||
| 53601-2006024 |
AT160,ST162..CP,LB BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-20160 |
AT160,ST162..LHD |
1 | ||
| Common parts | ||||
| 90119-06183 | ||||
| 90467-09043 | ||||
| 91651-40820 | ||||
| 93567-55016 | ||||
