ST161L-BLPVEK (1985)

Toyota Celica

Production Aug 1985 - Aug 1986
Engine 2SELC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

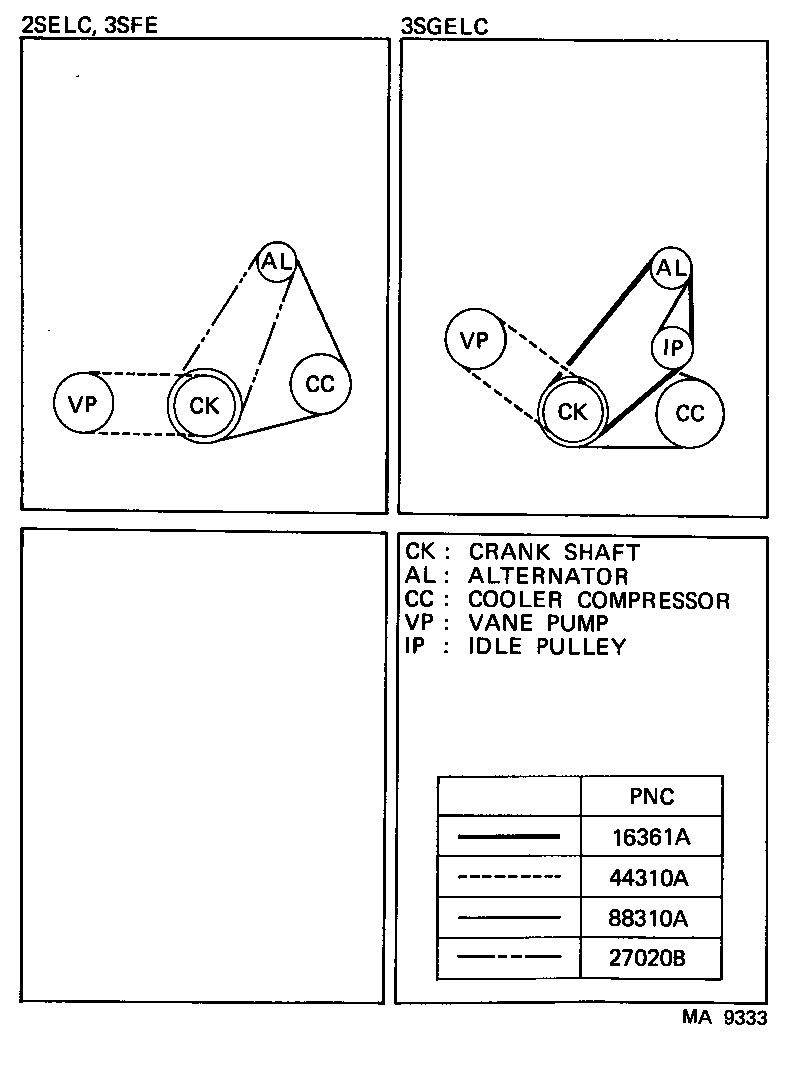

Click highlighted areas on diagram

diagram 16361A 27020B 44310A 88310A
Part # Description Qty Price
27020B - BELT, V(FOR ALTERNATOR)
99365-01000

2SELC,3SFE..ST16#

12V 70A

 1
44310A - BELT, V(FOR VANE PUMP)
99363-50760

ST16#

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99365-51110

ST16#..GT,ST

 1
