ST161L-BLPVEA (1985)
Toyota Celica
Production
Aug 1985
-
Aug 1986
Engine
2SELC
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8508-8608)2SELC

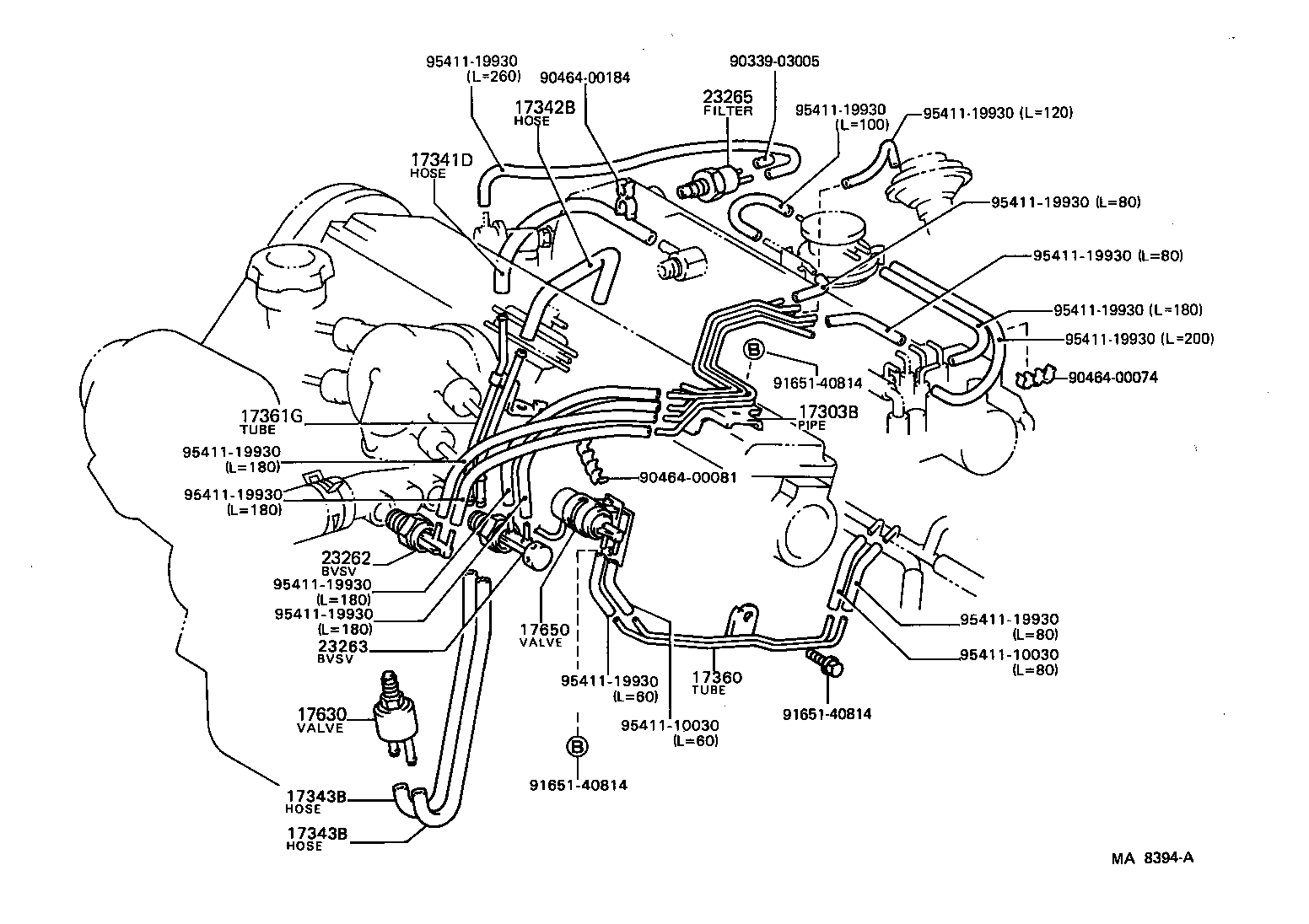

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-74010 |
2SELC..ST161 |
1 | ||
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17341-63050 |
2SELC..ST161 |
1 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17342-74010 |
2SELC..ST161 |
1 | ||
| 17343B - HOSE, NO.3(FOR IDLE-UP) | ||||
| 17343-74010 |
2SELC..ST161 |
2 | ||
| 17343B - HOSE, NO.3(FOR IDLE-UP) | ||||
| 17343-74010 |
2SELC..ST161 |
2 | ||
| 17360 - TUBE ASSY, AIR | ||||
| 17360-63041 |
2SELC..ST161 |
1 | ||
| 17361G - TUBE, AIR(FOR IDLE-UP) | ||||
| 17361-74010 |
2SELC..ST161 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-70020 |
2SELC,3S#..ST16# |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-20230 |
2SELC..ST161 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05068 |
2SELC..ST161 |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 25820-13020 |
2SELC..ST161 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
2SELC..ST161 |
1 | ||
| Common parts | ||||
| 90339-03005 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00184 | ||||
| 91651-40814 | ||||
| 95411-10030 | ||||
| 95411-19930 | ||||
(8508- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 95411-10030 | ||||
| 95411-10130 | ||||
| 95411-10160 | ||||
| 95411-19995 | ||||
