ST161L-BCPVEK (1985)

Toyota Celica

Production Aug 1985 - Aug 1986
Engine 2SELC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

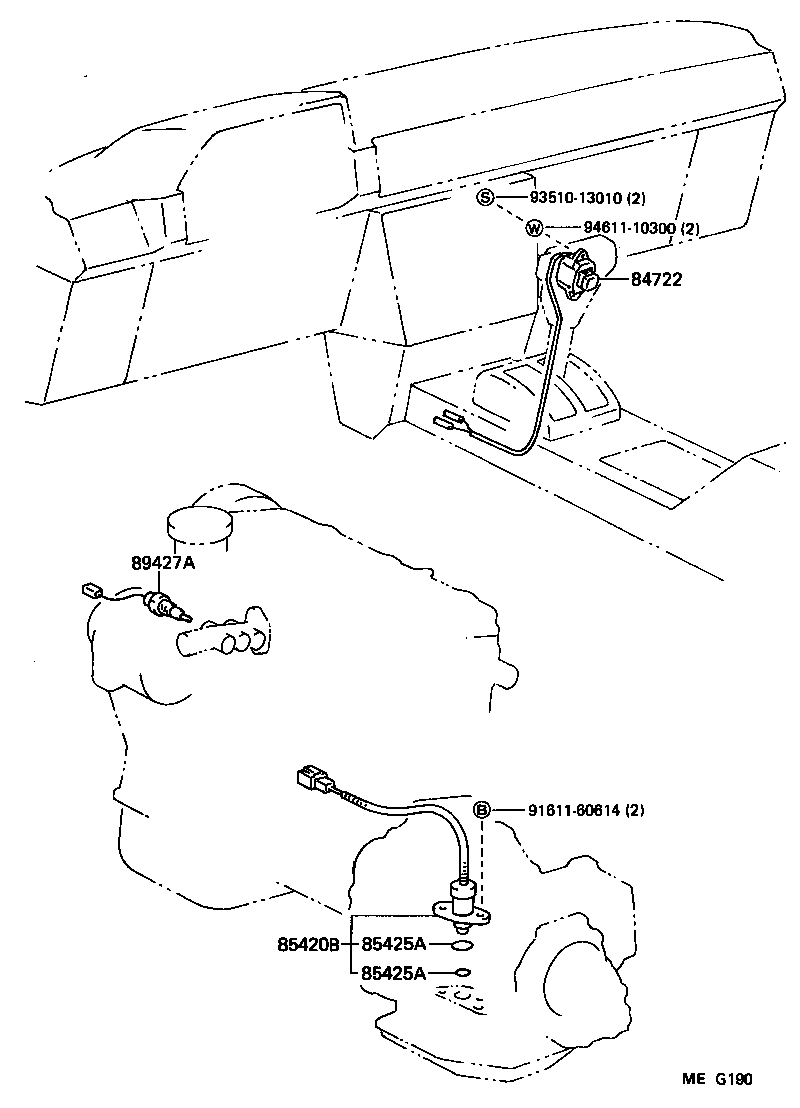

Click highlighted areas on diagram

diagram 84722 85420B 85425A 85425A 89427A 9161160614 9351013010 9461110300
Part # Description Qty Price
84722 - SWITCH, TRANSMISSION CONTROL
84722-2004024

ST16#..4FC..(GT,ST)

BLUE,BLUE,TRIM8#

 1
84722-2004012

ST16#..4FC..(GT,ST)

RED,RED,TRIM3#

 1
84722-2004005

ST16#..4FC..(GT,ST)

BEIGE,BEIGE,TRIM4#

 1
84722-2004003

ST16#..4FC..(GT,ST)

GRAY,GRAY,TRIM1#

 1
85420B - SOLENOID ASSY, TRANSMISSION
85420-32080

ST161..4FC

 1
85425A - RING, O (FOR OVERDRIVE SOLENOID)
96721-19017

ST16#..4FC..(GT,ST)

ID=17

 1
96721-19007

ST161..4FC

ID=7

 1
85425A - RING, O (FOR OVERDRIVE SOLENOID)
96721-19017

ST16#..4FC..(GT,ST)

ID=17

 1
96721-19007

ST161..4FC

ID=7

 1
89427A - SWITCH, TEMPERATURE
89427-12070

ST16#..4FC..(GT,ST)

 1
Common parts
91611-60614
93510-13010
94611-10300
