ST161L-BCPVEK (1985)

Toyota Celica

Production Aug 1985 - Aug 1986
Engine 2SELC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )4FC

Click highlighted areas on diagram

diagram 33574A 33723Q 33820B 33821A 33821E 33821F 33823 9011906231 9011906231 9046814011 9046814016 9046814016 9048001205 9161160816 9165640616 9356015020
Part # Description Qty Price
33574A - RETAINER, SHIFT CABLE GROMMET, NO.1
33574-20120

ST16#..4FC

CHKK

 1
33574-20130

ST16#..4FC

TSK

 1
33723Q - NUT (FOR CONNECTING ROD SWIVEL)
90179-08061

ST16#..4FC

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-20171

ST161..4FC

 1
33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE)
90480-01327

ST16#..4FC

CHKK

 1
90480-01328

ST16#..4FC

TSK

 1
33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE)
90949-01075

ST161..4FC

 1
33821F - CLAMP, NO.2 (FOR TRANSMISSION CONTROL CABLE)
90949-01070

ST161..4FC

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-32010

ST16#..4FC

 1
Common parts
90119-06231
90468-14011
90468-14016
90480-01205
91611-60816
91656-40616
93560-15020

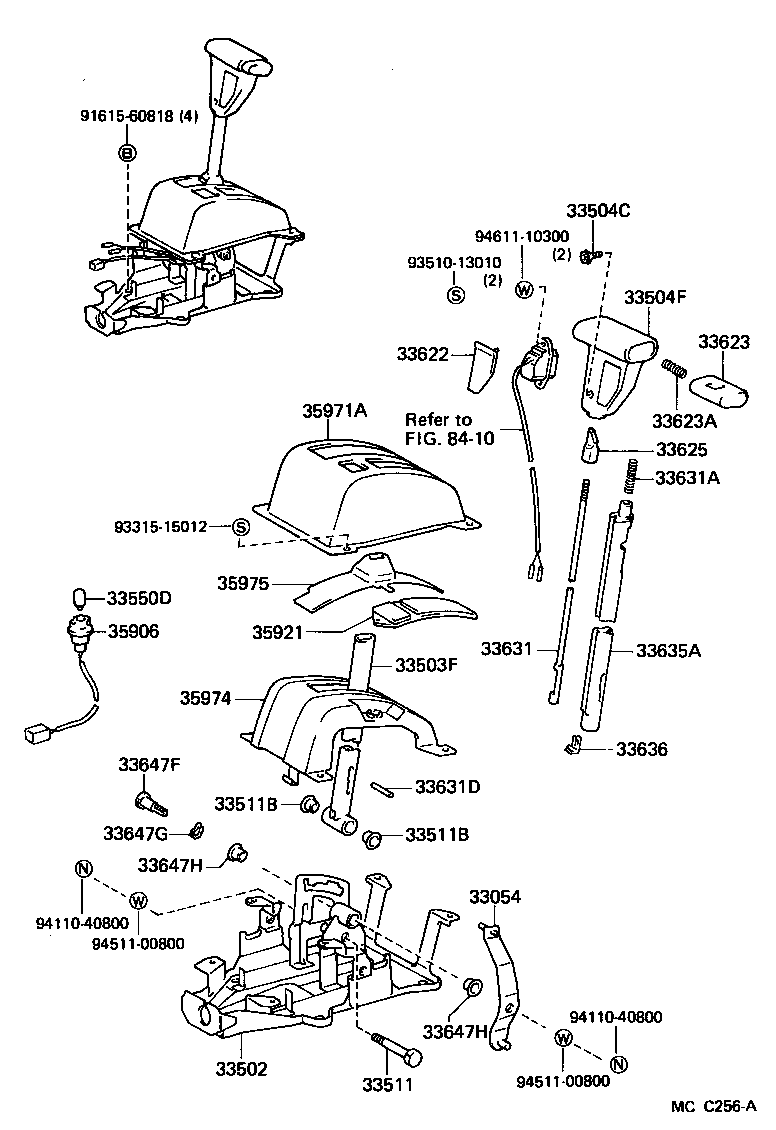

(8508- )4FC

Click highlighted areas on diagram

diagram 33054 33502 33503F 33504C 33504F 33511 33511B 33511B 33550D 33622 33623 33623A 33625 33631 33631A 33631D 33635A 33636 33647F 33647G 33647H 33647H 35906 35921 35971A 35974 35975 8410 9161560818 9331515012 9351013010 9411040800 9411040800 9451100800 9451100800 9461110300
Part # Description Qty Price
33054 - LEVER SUB-ASSY, SHIFT, NO.2(FOR FLOOR SHIFT)
33054-20031

ST16#..4FC

 1
33502 - PLATE SUB-ASSY, SHIFT LEVER
33502-20230

ST16#..4FC

 1
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33503-20290

ST16#..4FC

 1
33504C - SCREW (FOR SHIFT LEVER KNOB SETTING)
90159-40109

ST16#..4FC

 2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-3205024

ST16#..4FC

DEEP BLUE,DEEP BLUE,TRIM8#

 1
33542-3205003

ST16#..4FC

SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
33542-3205012

ST16#..4FC

RED,RED,TRIM3#

 1
33542-3205005

ST16#..4FC

BROWN,BEIGE,TRIM4#

 1
33511 - SHAFT, CONTROL (FOR FLOOR SHIFT)
33511-20240

ST16#..4FC

 1
33511B - BUSH (FOR CONTROL SHAFT)
90385-11003

ST16#..4FC

 2
33511B - BUSH (FOR CONTROL SHAFT)
90385-11003

ST16#..4FC

 2
33550D - BULB, POSITION INDICATOR LAMP
99132-12034

ST16#..4FC

12V 3.4W

 1
33622 - COVER, SHIFT LEVER KNOB, NO.1
33622-1602005

ST16#..4FC

BROWN,BEIGE,TRIM4#

 1
33622-1602013

ST16#..4FC

SHADOW GRAY,GRAY,TRIM1#

 1
33622-1602012

ST16#..4FC

RED,RED,TRIM3#

 1
33622-1602024

ST16#..4FC

DEEP BLUE,BLUE,TRIM8#

 1
33623 - BUTTON, SHIFT LEVER KNOB
33623-1602013

ST16#..4FC

SHADOW GRAY,GRAY,TRIM1#

 1
33623-1602002

ST16#..4FC

RED,DARK MAROON,TRIM3#

 1
33623-1602016

ST16#..4FC

BROWN,BROWN,TRIM4#

 1
33623-1602014

ST16#..4FC

DEEP BLUE,BLUE,TRIM8#

 1
33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
90501-07009

ST16#..4FC

 1
33625 - SLEEVE, SHIFT LEVER KNOB
33625-16020

ST16#..4FC

 1
33631 - ROD, DETENT
33631-20080

ST16#..4FC

 1
33631A - SPRING, COMPRESSION (FOR DETENT ROD)
90501-08017

ST16#..4FC

 1
33631D - PIN, GROOVED (FOR DETENT ROD)
90256-04001

ST16#..4FC

 1
33635A - GUIDE, WIRE, NO.1 (FOR SHIFT LEVER)
33635-20020

ST16#..4FC

 1
33636 - GUIDE, WIRE, NO.2 (FOR SHIFT LEVER)
33636-35010

ST16#..4FC

 1
33647F - SHAFT, CONTROL LINK (FOR FLOOR SHIFT)
33647-32010

ST16#..4FC

 1
33647G - WASHER, WAVE (FOR CONTROL LINK SHAFT)
90206-10003

ST16#..4FC

 1
33647H - BUSH (FOR CONTROL LINK SHAFT)
90386-10012

ST16#..4FC

 2
33647H - BUSH (FOR CONTROL LINK SHAFT)
90386-10012

ST16#..4FC

 2
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-12050

ST16#..4FC

 1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-20230

ST16#..4FC

 1
35971A - HOUSING, POSITION INDICATOR, UPPER
35971-20120

ST16#..4FC

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-20090

ST16#..4FC

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-20060

ST16#..4FC

 1
Common parts
91615-60818
93315-15012
93510-13010
94110-40800
94511-00800
94611-10300
Linked diagrams
8410
