ST161L-BCPVEA (1985)

Toyota Celica

Production Aug 1985 - Aug 1986
Engine 2SELC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508-8608)2SELC

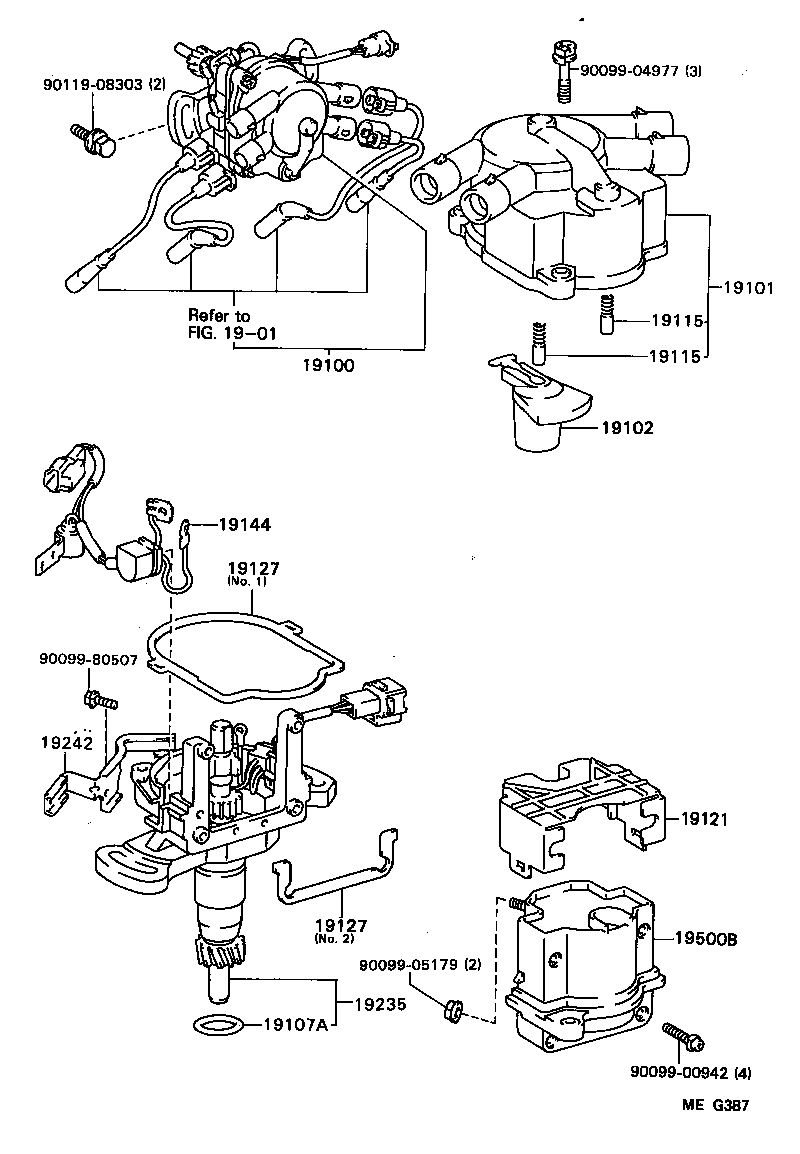

Click highlighted areas on diagram

diagram 1901 19100 19101 19102 19107A 19115 19115 19121 19127 19127 19144 19235 19242 19500B 9009900942 9009904977 9009905179 9009980507 9011908303
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19040-74010

2SELC..ST161

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-63011

2SELC..ST161

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-35160

2SELC..ST161

 1
19102-16060

2SELC..ST161

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14020

2SELC,3SGELC..ST16#

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-71010

2SELC..ST161

 2
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-71010

2SELC..ST161

 2
19121 - COVER, DUST PROOF
19121-63040

2SELC..ST161

 1
19127 - PACKING, DUST PROOF
19127-63010

2SELC..ST161

NO.1

 1
19127-63020

2SELC..ST161

NO.2

 1
19127 - PACKING, DUST PROOF
19127-63010

2SELC..ST161

NO.1

 1
19127-63020

2SELC..ST161

NO.2

 1
19144 - LEAD, DISTRIBUTOR BREAKER
19144-63070

2SELC..ST161

 1
19235 - HOUSING, DISTRIBUTOR
19235-63090

2SELC..ST161

 1
19242 - CLAMP, CORD
19242-74010

2SELC..ST161

 1
19500B - COIL ASSY, IGNITION
90919-02135

2SELC,3SFE..ST16#

 1
Common parts
90099-00942
90099-04977
90099-05179
90099-80507
90119-08303
Linked diagrams
1901
