RA65R-BLPQEQ (1984)

Toyota Celica

Production Aug 1984 - Jul 1985
Engine 22REC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408-8507)22REC

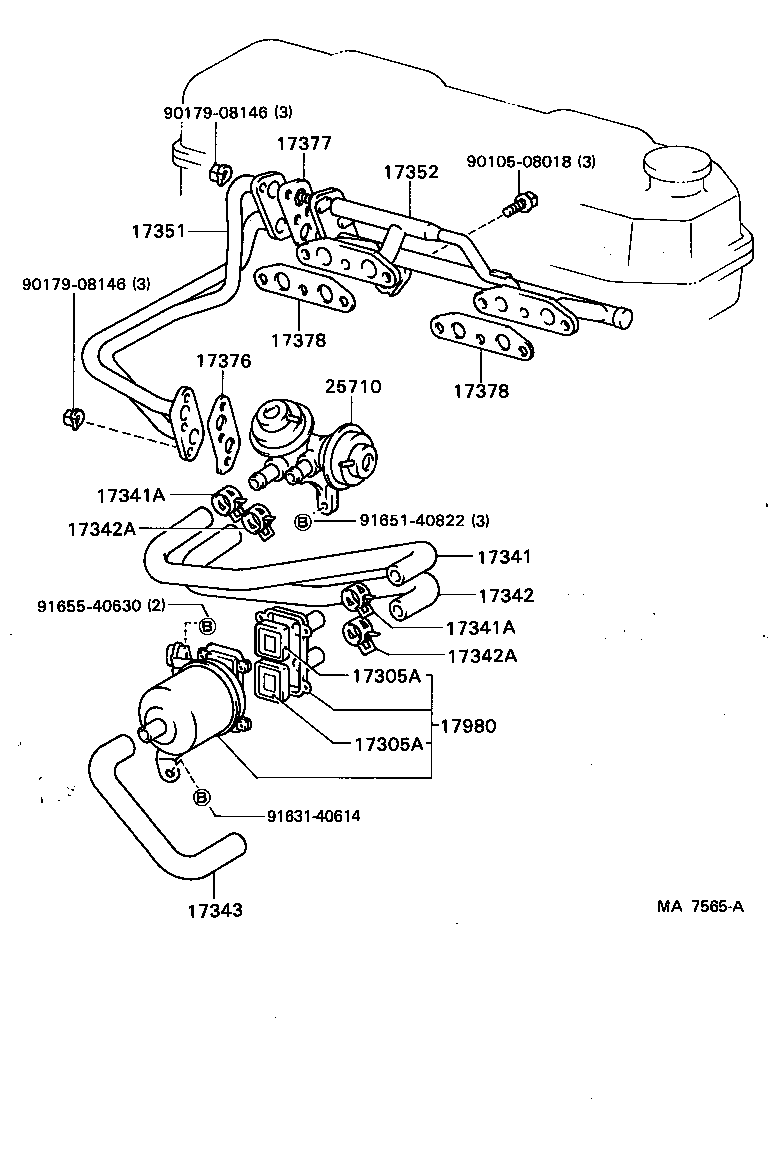

Click highlighted areas on diagram

diagram 17305A 17305A 17341 17341A 17341A 17342 17342A 17342A 17343 17351 17352 17376 17377 17378 17378 17980 25710 9010508018 9017908146 9017908146 9163140614 9165140822 9165540630
Part # Description Qty Price
17305A - VALVE SUB-ASSY, REED
17305-35010

22REC..RA65

 2
17305A - VALVE SUB-ASSY, REED
17305-35010

22REC..RA65

 2
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-35060

22REC..RA65

 1
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342-35070

22REC..RA65

 1
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-28001

22REC..RA65

 2
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-28001

22REC..RA65

 2
17343 - HOSE, NO.3(FOR AIR INJECTION SYSTEM)
17343-35050

22REC..RA65

 1
17351 - MANIFOLD, AIR INJECTION
17351-35030

22REC..RA65

 1
17352 - MANIFOLD, AIR INJECTION, NO.2
17352-35050

22REC..RA65

 1
17376 - GASKET, AIR TUBE, NO.1
17376-35020

22REC..RA65

 1
17377 - GASKET, AIR TUBE, NO.2
17377-35020

22REC..RA65

 1
17378 - GASKET AIR TUBE, NO.3
17378-35010

22REC..RA65

 2
17378 - GASKET AIR TUBE, NO.3
17378-35010

22REC..RA65

 2
17980 - FILTER ASSY, AIR SUCTION
17980-35010

22REC..RA65

 1
25710 - VALVE ASSY, AIR SWITCHING
25710-35050

22REC..RA65

 1
Common parts
90105-08018
90179-08146
91631-40614
91651-40822
91655-40630
