RA65R-BLMQEQ (1984)

Toyota Celica

Production Aug 1984 - Jul 1985
Engine 22REC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408-8507)RA65

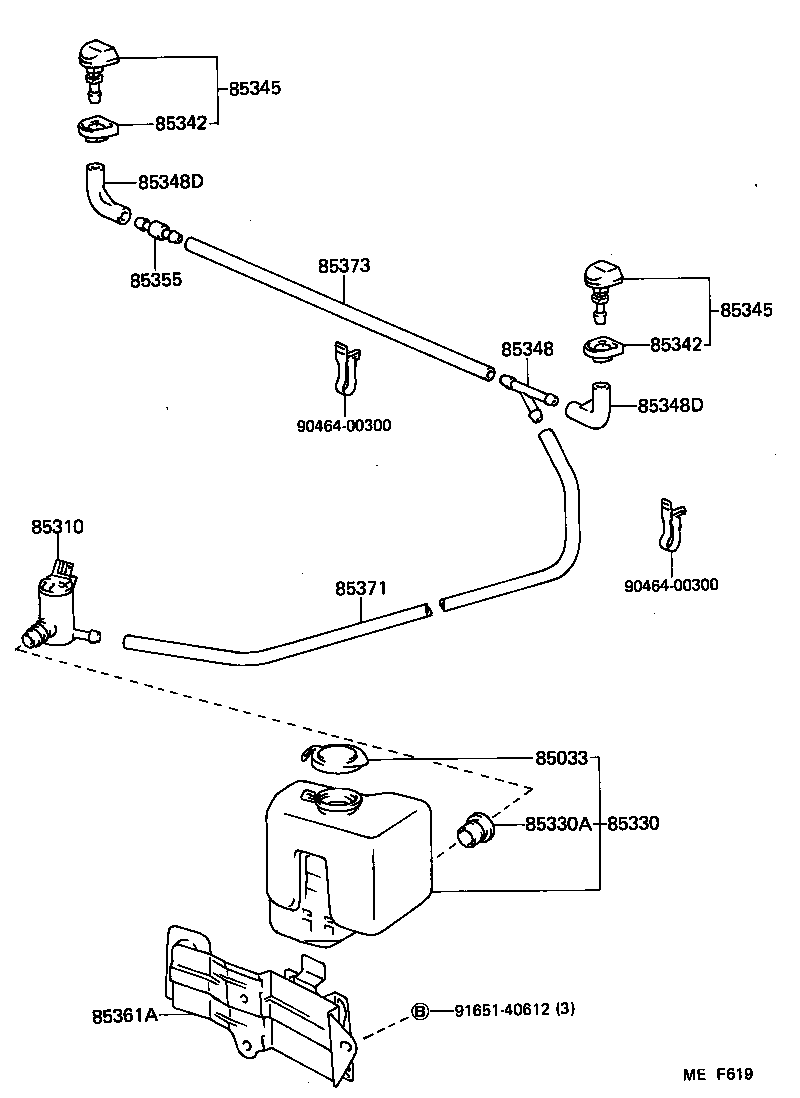

Click highlighted areas on diagram

diagram 85033 85310 85330 85330A 85342 85342 85345 85345 85348 85348D 85348D 85355 85361A 85371 85373 9046400300 9046400300 9165140612
Part # Description Qty Price
85033 - CAP ASSY, WINDSHIELD WASHER
85332-12320

RA65

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-10130

MA61,RA6#,TA60

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85331-14460

RA65

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

AA63,MA61,RA6#,SA63,TA60

 1
85342 - HOLDER, WASHER NOZZLE
85342-14010

AA63,MA61,RA6#,SA63,TA60

 2
85342 - HOLDER, WASHER NOZZLE
85342-14010

AA63,MA61,RA6#,SA63,TA60

 2
85345 - NOZZLE, WINDSHIELD WASHER
85035-19015

AA63,MA61,RA6#,SA63,TA60

 2
85345 - NOZZLE, WINDSHIELD WASHER
85035-19015

AA63,MA61,RA6#,SA63,TA60

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-14010

AA63,MA61,RA6#,SA63,TA60

3-WAY

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-20070

AA63,MA61,RA6#,SA63,TA60

 2
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-20070

AA63,MA61,RA6#,SA63,TA60

 2
85355 - VALVE, WINDSHIELD WASHER HOSE
85031-14080

AA63,MA61,RA6#,SA63,TA60

 1
85361A - BRACKET, WINDSHIELD WASHER, NO.1
85036-14190

RA65

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33299

RA6#,TA60

*H,L=550

 1
Common parts
90464-00300
91651-40612
