RA65R-BLMQEQ (1984)

Toyota Celica

Production Aug 1984 - Jul 1985
Engine 22REC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408-8507)RA65

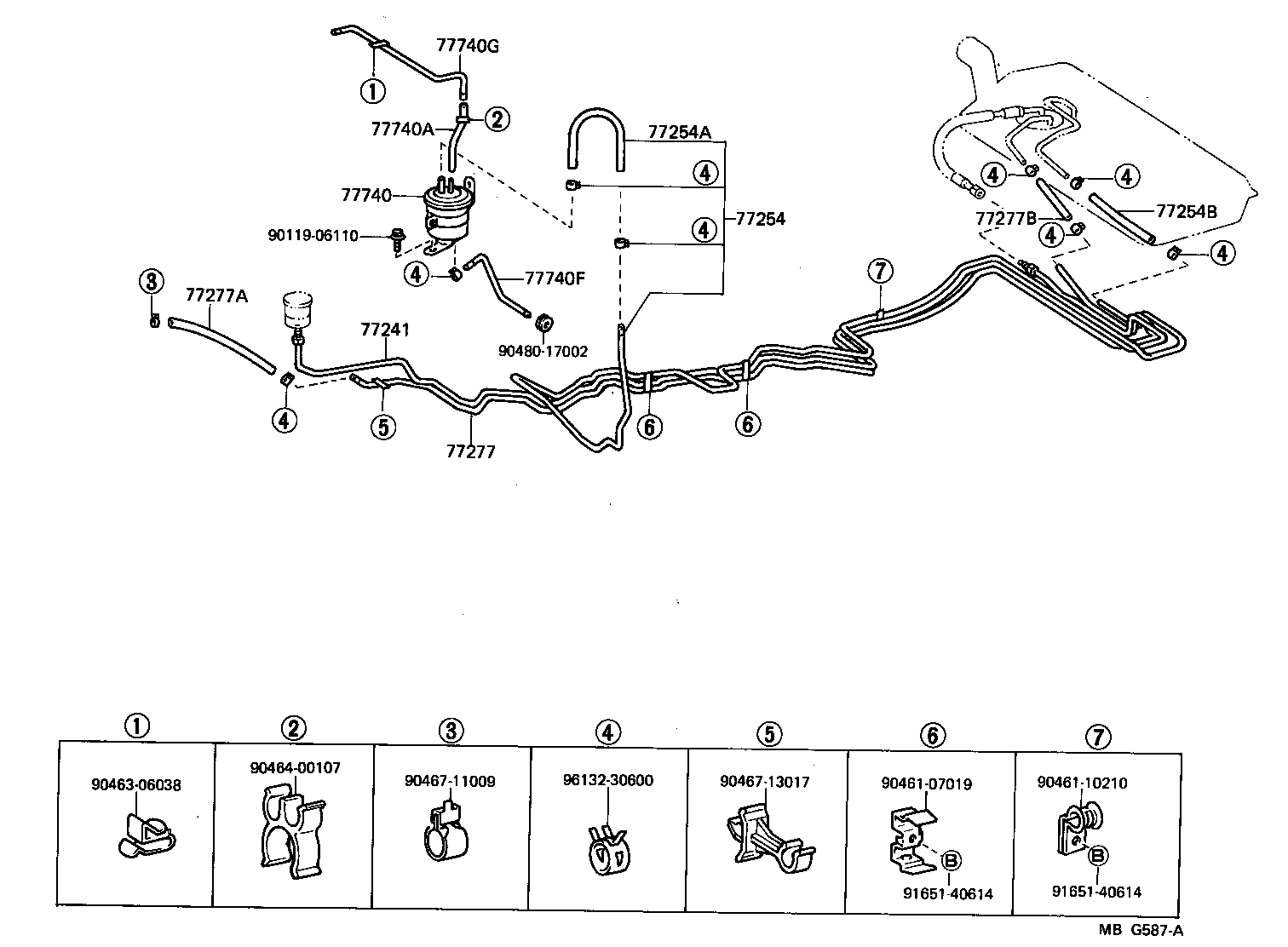

Click highlighted areas on diagram

diagram 77241 77254 77254A 77254B 77277 77277A 77277B 77740 77740A 77740F 77740G 9011906110 9046107019 9046110210 9046306038 9046400107 9046711009 9046713017 9048017002 9165140614 9165140614 9613230600
Part # Description Qty Price
77241 - TUBE, FUEL MAIN, NO.1
77251-14360

RA65

 1
77254 - TUBE, FUEL EMISSION, NO.1
77261-14191

RA65

 1
77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
95332-06030

RA60,65,SA63..ARL

*H,L=260

 1
77277 - TUBE, FUEL RETURN, NO.1
77255-14210

RA65

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
90447-12022

RA65

L=300

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-06020

AA63,RA61,65,SA63

*H,L=140

 1
77740 - CANISTER ASSY, CHARCOAL
77740-14300

RA60,65,SA63..ARL

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95411-19960

RA65

*H,L=420,MARK=#*

 1
77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER)
77264-14090

RA60,65,SA63..ARL

 1
77740G - TUBE, FUEL, NO.2(FOR CHARCOAL CANISTER)
23819-27020

RA60,65,SA63..ARL

 1
Common parts
90119-06110
90461-07019
90461-10210
90463-06038
90464-00107
90467-11009
90467-13017
90480-17002
91651-40614
96132-30600
