RA65R-BLMQEQ (1984)

Toyota Celica

Production Aug 1984 - Jul 1985
Engine 22REC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408-8507)22REC

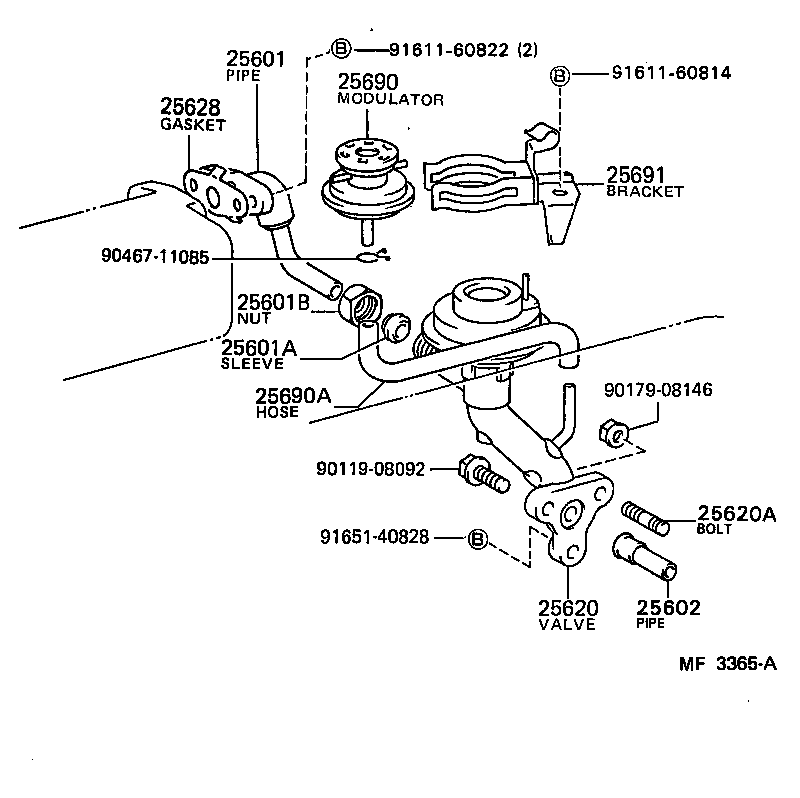

Click highlighted areas on diagram

diagram 25601 25601A 25601B 25602 25620 25620A 25628 25690 25690A 25691 9011908092 9017908146 9046711085 9161160814 9161160822 9165140828
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-35010

22REC..RA65

 1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-16044

21R,22REC..RA6#..ARL,EUR

 1
25601B - NUT, UNION, EGR PIPE, NO.1
90402-22081

21R,22REC..RA6#..ARL,EUR

 1
25602 - PIPE SUB-ASSY, EGR, NO.2
25612-37010

21R#,22REC..RA6#..ARL,EUR

 1
25620 - VALVE ASSY, EGR
25620-35110

22REC..RA65..5F

 1
25620A - BOLT, STUD(FOR EGR VALVE)
90116-08207

21R,22REC..RA6#..ARL,EUR

 1
25628 - GASKET, EGR INLET
25628-35010

22REC..RA65

 1
25690 - MODULATOR ASSY, EGR VACUUM
25870-35040

21RC,22REC..RA6#

 1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
25695-35010

22REC..RA65

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-35021

22REC..RA65

 1
Common parts
90119-08092
90179-08146
90467-11085
91611-60814
91611-60822
91651-40828
