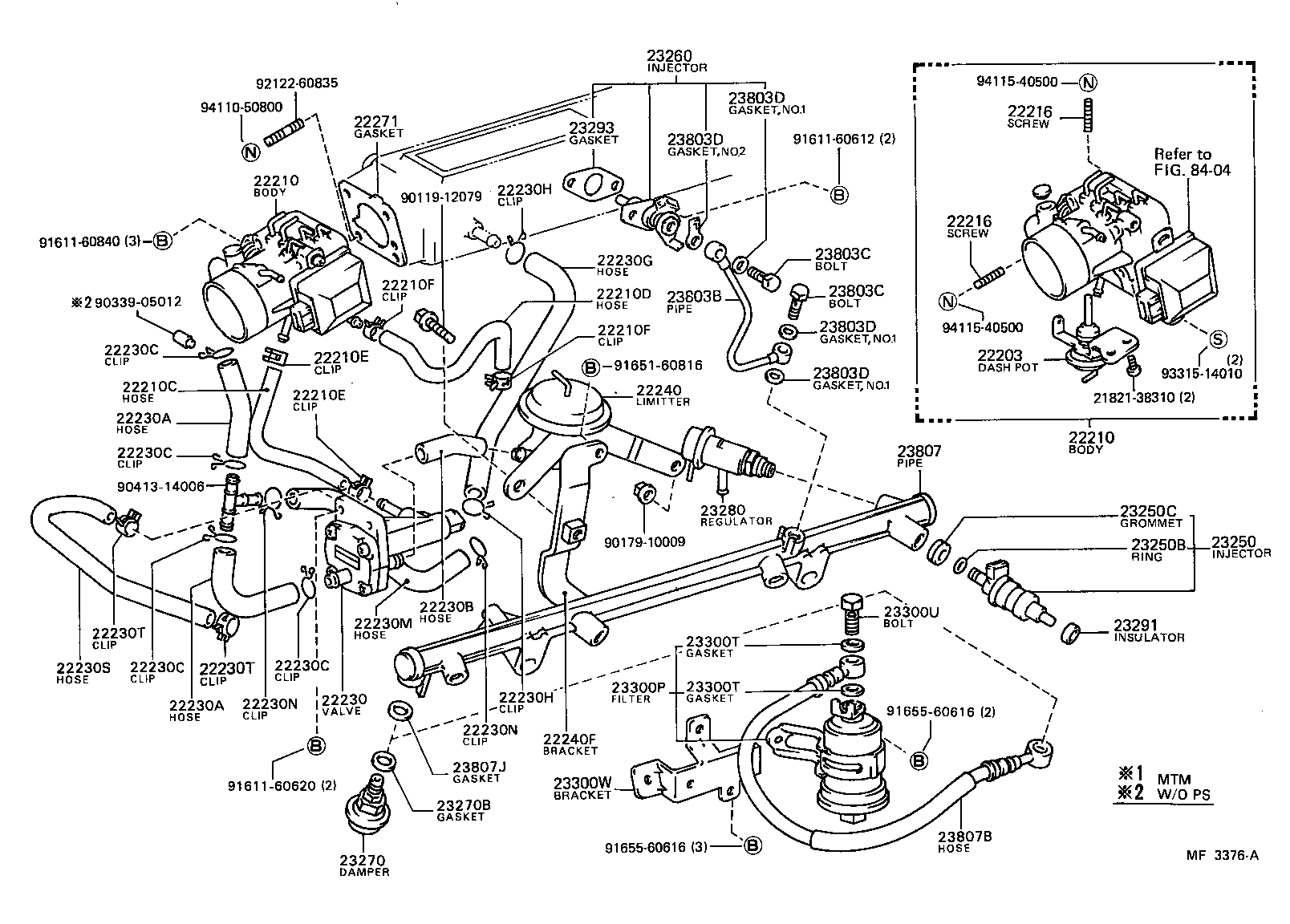

RA65R-BLMQEQ (1984)
Toyota Celica
(8408-8507)22REC..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY) | ||||
| 22202-35050 |
22REC..RA65..5F |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-35050 |
22REC..RA65..5F |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-35050 |
22REC..RA65..5F |
1 | ||
| 22210C - HOSE, WATER BY-PASS, NO.1 | ||||
| 16267-35010 |
22REC..RA65 |
1 | ||
| 22210D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-35011 |
22REC..RA65 |
1 | ||
| 16264-35012 |
22REC..RA65 |
1 | ||
| 22216 - SCREW, DASH POT ADJUSTING | ||||
| 22216-74010 |
22REC..RA65 |
2 | ||
| 22216 - SCREW, DASH POT ADJUSTING | ||||
| 22216-74010 |
22REC..RA65 |
2 | ||
| 22230 - VALVE ASSY, AUXILIARY AIR | ||||
| 22230-35010 |
22REC..RA65 |
1 | ||
| 22230A - HOSE, AUXILIARY AIR VALVE, NO.1 | ||||
| 22231-35020 |
22REC..RA65..5F THROTTLE BODY SIDE |
1 | ||
| 22233-35020 |
22REC..RA65..5F AUXILIARY AIR VALVE SIDE |
1 | ||
| 22230A - HOSE, AUXILIARY AIR VALVE, NO.1 | ||||
| 22231-35020 |
22REC..RA65..5F THROTTLE BODY SIDE |
1 | ||
| 22233-35020 |
22REC..RA65..5F AUXILIARY AIR VALVE SIDE |
1 | ||
| 22230B - HOSE, AUXILIARY AIR VALVE, NO.2 | ||||
| 22234-35020 |
22REC..RA65..5F |
1 | ||
| 22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1 | ||||
| 90467-19003 |
22REC..RA65 |
4 | ||
| 22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1 | ||||
| 90467-19003 |
22REC..RA65 |
4 | ||
| 22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1 | ||||
| 90467-19003 |
22REC..RA65 |
4 | ||
| 22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1 | ||||
| 90467-19003 |
22REC..RA65 |
4 | ||
| 22230G - HOSE, AUXILIARY AIR VALVE, NO.3 | ||||
| 22236-35010 |
22REC..RA65..5F |
1 | ||
| 22230H - CLIP, AUXILIARY AIR VALVE HOSE, NO.3 | ||||
| 90467-19003 |
22REC..RA65..5F |
2 | ||
| 22230H - CLIP, AUXILIARY AIR VALVE HOSE, NO.3 | ||||
| 90467-19003 |
22REC..RA65..5F |
2 | ||
| 22230M - HOSE, AUXILIARY AIR VALVE, NO.4 | ||||
| 22237-35010 |
22REC..RA65..5F |
1 | ||
| 22230N - CLIP, AUXILIARY AIR VALVE, NO.4 | ||||
| 90467-19003 |
22REC..RA65..5F |
2 | ||
| 22230N - CLIP, AUXILIARY AIR VALVE, NO.4 | ||||
| 90467-19003 |
22REC..RA65..5F |
2 | ||
| 22230S - HOSE, WATER BY-PASS(FOR AUXILIARY AIR VALVE) | ||||
| 16281-35010 |
22REC..RA65 |
1 | ||
| 22240 - LIMITER ASSY, VACUUM | ||||
| 22240-35010 |
22REC..RA65..5F |
1 | ||
| 22240F - BRACKET, VACUUM LIMITER | ||||
| 25715-35020 |
22REC..RA65..5F |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-35010 |
22REC..RA65 |
1 | ||
| 23260 - INJECTOR ASSY, COLD START FUEL | ||||
| 23260-39055 |
22REC..RA65 |
1 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-35010 |
22REC..RA65 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-35010 |
22REC..RA65 |
1 | ||
| 23280-35011 |
22REC..RA65 |
1 | ||
| 23293 - GASKET, COLD START INJECTOR | ||||
| 23293-35010 |
22REC..RA65 |
1 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-39045 |
22REC..RA65 |
1 | ||
| 23300W - BRACKET, FUEL FILTER | ||||
| 23264-35030 |
22REC..RA65 |
1 | ||
| 23803B - PIPE SUB-ASSY, FUEL, NO.3 | ||||
| 23801-35010 |
22REC..RA65 |
1 | ||
| 23803C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90401-08003 |
22REC..RA65 |
1 | ||
| 23803C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90401-08003 |
22REC..RA65 |
1 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-08005 |
22REC..RA65 NO.1 |
3 | ||
| 90430-08007 |
22REC..RA65 NO.2 |
1 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-08005 |
22REC..RA65 NO.1 |
3 | ||
| 90430-08007 |
22REC..RA65 NO.2 |
1 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-08005 |
22REC..RA65 NO.1 |
3 | ||
| 90430-08007 |
22REC..RA65 NO.2 |
1 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-08005 |
22REC..RA65 NO.1 |
3 | ||
| 90430-08007 |
22REC..RA65 NO.2 |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-35010 |
22REC..RA65 |
1 | ||
| 23807B - HOSE, FUEL DELIVERY PIPE | ||||
| 90923-01325 |
22REC..RA65 |
1 | ||
| Common parts | ||||
| 21821-38310 | ||||
| 90119-12079 | ||||
| 90179-10009 | ||||
| 90339-05012 | ||||
| 90413-14006 | ||||
| 91611-60612 | ||||
| 91611-60620 | ||||
| 91611-60840 | ||||
| 91651-60816 | ||||
| 91655-60616 | ||||
| 92122-60835 | ||||
| 93315-14010 | ||||
| 94110-50800 | ||||
| 94115-40500 | ||||
| Linked diagrams | ||||
| 8404 | ||||
