RA65R-BLMQEQ (1984)

Toyota Celica

Production Aug 1984 - Jul 1985
Engine 22REC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408-8507)22REC

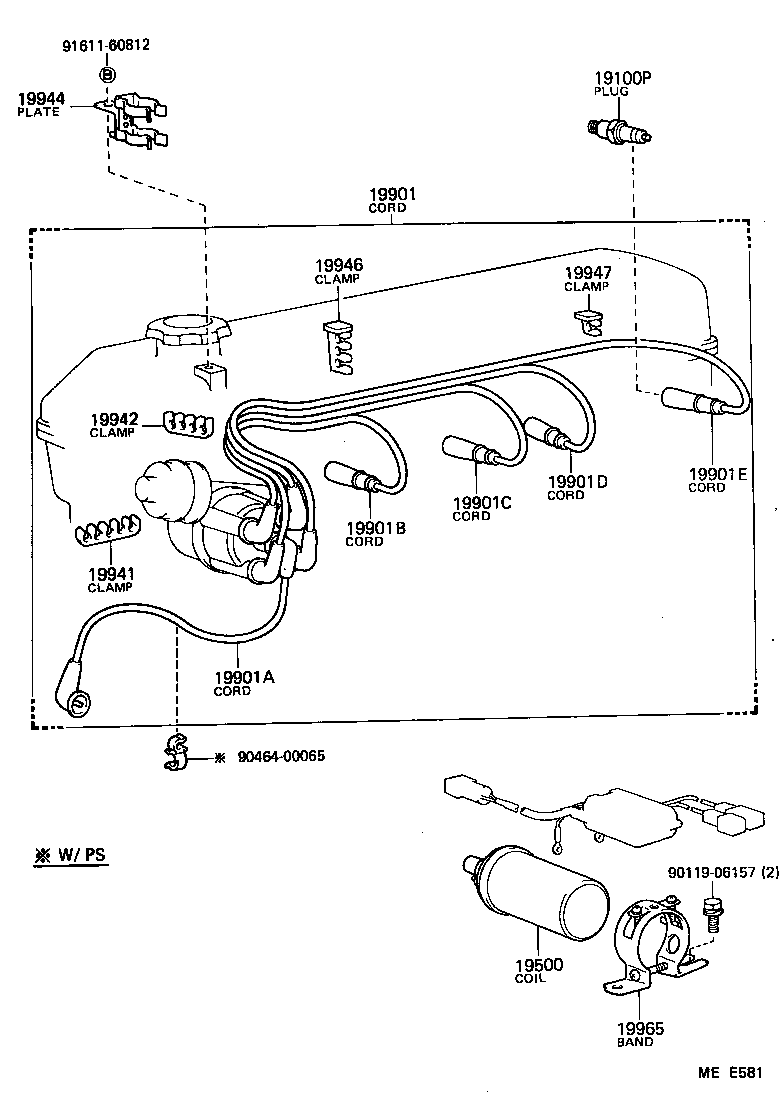

Click highlighted areas on diagram

diagram 19100P 19500 19901 19901A 19901B 19901C 19901D 19901E 19941 19942 19944 19946 19947 19965 9011906157 9046400065 9161160812
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01064

21R#,22REC..RA6#

W16EXR-U,W16EXR-U

 4
19500 - COIL ASSY, IGNITION
90919-02117

21RC,22REC..RA60,65

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21312

22REC..RA65

 1
19901A - CORD, COIL RESISTIVE
90919-13206

22REC..RA65

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12457

22REC..RA65

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12458

22REC..RA65

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12459

22REC..RA65

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12460

22REC..RA65

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90464-00214

21R#,22REC..RA60,61,65

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90464-00061

21R#,22REC..RA60,61,65

 1
19944 - PLATE, RESISTIVE CORD CLAMP SUPPORT, NO.2
19944-35010

21R#,22REC..RA60,61,65..ARL,EUR

 1
19947 - CLAMP, RESISTIVE CORD, NO.4
90464-00059

21R#,22REC..RA60,61,65

 1
19965 - BAND, IGNITION COIL, NO.1
90919-02117

22REC..RA65

 1
Common parts
90119-06157
90464-00065
91611-60812
