RA65R-BLMQEQ (1984)
Toyota Celica
Production
Aug 1984
-
Jul 1985
Engine
22REC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8408-8507)22REC

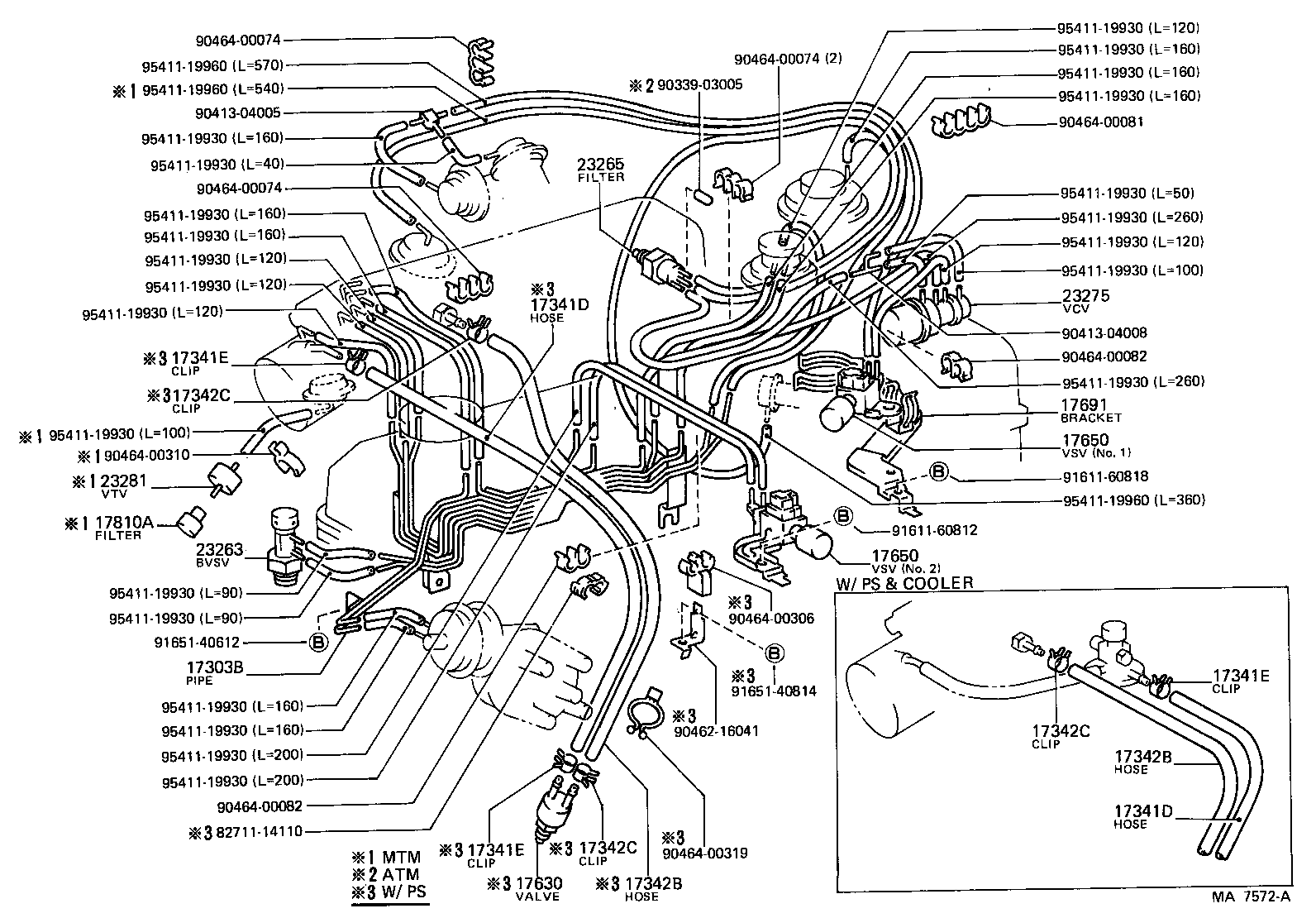

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-35210 |
22REC..RA65 |
1 | ||
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17342-35050 |
22REC..RA65 W/POWER STEERING & COOLER |
1 | ||
| 17341-35030 |
22REC..RA65 W/POWER STEERING |
1 | ||
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17342-35050 |
22REC..RA65 W/POWER STEERING & COOLER |
1 | ||
| 17341-35030 |
22REC..RA65 W/POWER STEERING |
1 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
22REC..RA65 W/POWER STEERING |
2 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
22REC..RA65 W/POWER STEERING |
2 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
22REC..RA65 W/POWER STEERING |
2 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17342-35050 |
22REC..RA65 W/POWER STEERING |
1 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17342-35050 |
22REC..RA65 W/POWER STEERING |
1 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
22REC..RA65 W/POWER STEERING |
2 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
22REC..RA65 W/POWER STEERING |
2 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
22REC..RA65 W/POWER STEERING |
2 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-28010 |
22REC..RA65 W/POWER STEERING |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-35230 |
22REC..RA65 NO.2 |
1 | ||
| 89570-35200 |
22REC..RA65 NO.1 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-35230 |
22REC..RA65 NO.2 |
1 | ||
| 89570-35200 |
22REC..RA65 NO.1 |
1 | ||
| 17691 - BRACKET, VACUUM CONTROL VALVE, NO.1 | ||||
| 17691-35020 |
22REC..RA65 |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 25820-13010 |
22REC..RA65 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
21R#,22REC..RA60,61,65 |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03104 |
22REC..RA65 |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 90339-03005 | ||||
| 90413-04005 | ||||
| 90413-04008 | ||||
| 90462-16041 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90464-00306 | ||||
| 90464-00310 | ||||
| 90464-00319 | ||||
| 91611-60812 | ||||
| 91611-60818 | ||||
| 91651-40612 | ||||
| 91651-40814 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
