RA65R-BLMQEQ (1984)

Toyota Celica

Production Aug 1984 - Jul 1985
Engine 22REC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408-8507)22REC

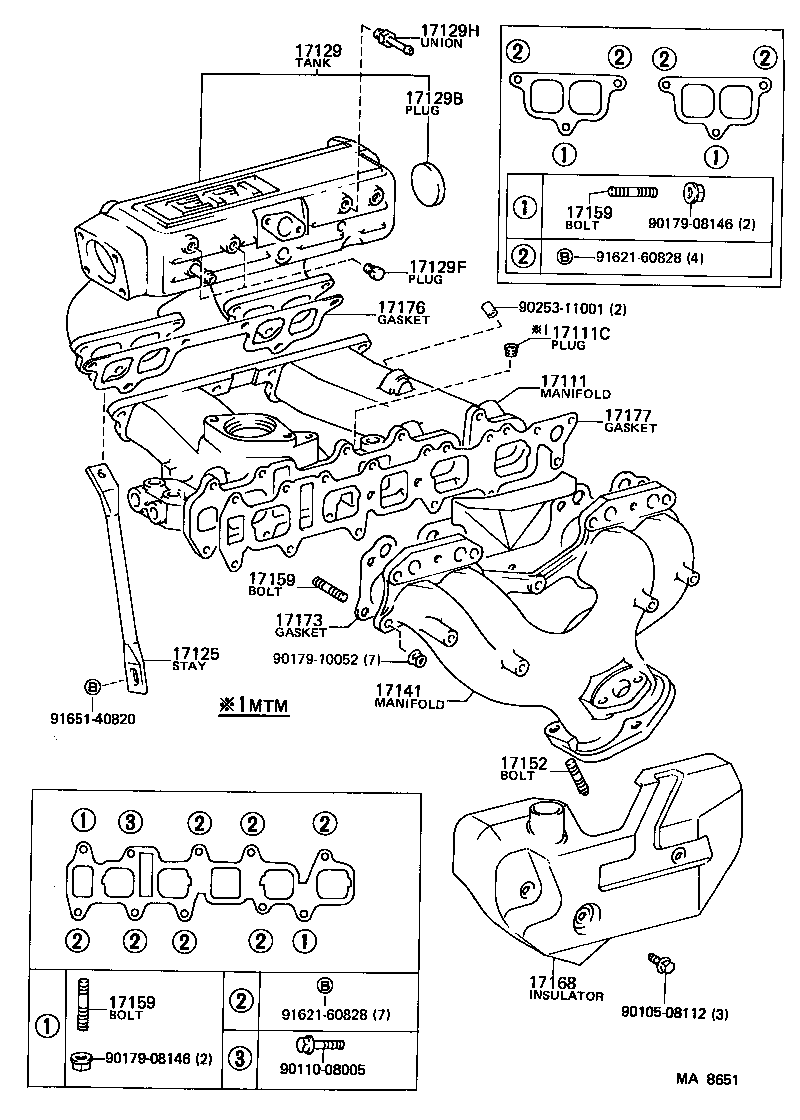

Click highlighted areas on diagram

diagram 17111 17111C 17125 17129 17129B 17129F 17129H 17141 17152 17159 17159 17159 17168 17173 17176 17177 9010508112 9011008005 9017908146 9017908146 9017910052 9025311001 9162160828 9162160828 9165140820
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-35012

22REC..RA65

 1
17101-35013

22REC..RA65

 1
17111C - PLUG, NO.3
90340-16002

22REC..RA65..5F

 1
17125 - STAY, SURGE TANK, NO.1
17125-35040

22REC..RA65

 1
17129 - TANK, INTAKE AIR SURGE
17109-35010

22REC..RA65

 1
17129B - PLUG
96411-44000

22REC..RA65

 1
17129F - PLUG, INTAKE MANIFOLD SUCTION HOLE
90345-51025

22REC..RA65

 2
17129H - UNION, NO.4
90404-51026

22REC..RA65

 1
17141 - MANIFOLD, EXHAUST
17141-35100

21R,22REC..RA6#

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-60825

22REC..RA65

SURGE TANK TO INTAKE MANIFOLD

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-60825

22REC..RA65

SURGE TANK TO INTAKE MANIFOLD

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-60825

22REC..RA65

SURGE TANK TO INTAKE MANIFOLD

 2
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17167-35090

22REC..RA65

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-35060

21R#,22REC..RA6#..ARL,EUR

 1
17173-35060

21R#,22REC..RA6#

 1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-35010

22REC..RA65

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-35030

21R#,22REC..RA6#..ARL,EUR

 1
Common parts
90105-08112
90110-08005
90179-08146
90179-10052
90253-11001
91621-60828
91651-40820
