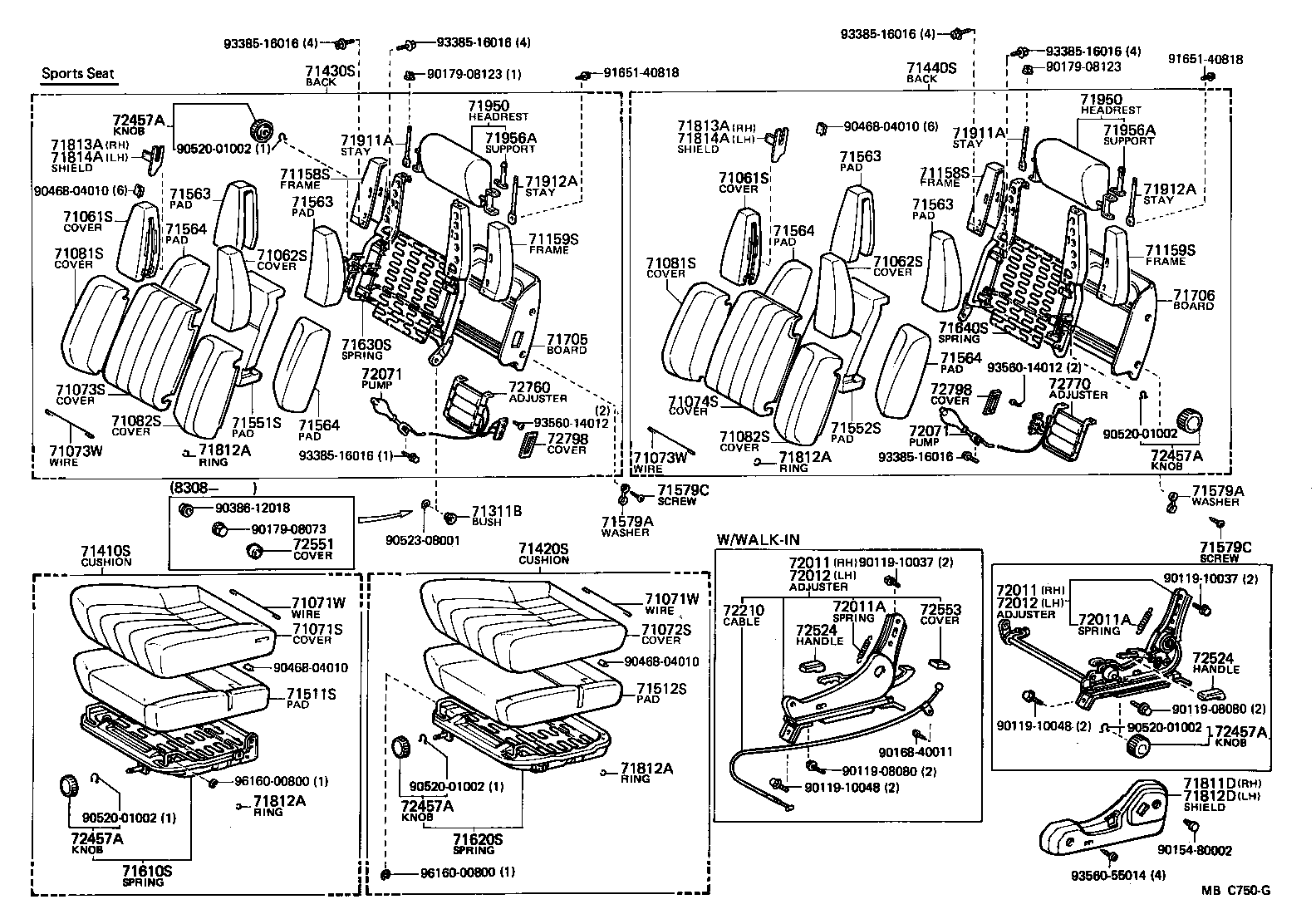

RA63R-BCMQG (1981)
Toyota Celica
(8108- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1B56004 |
RA60,63..RHD..GT FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1B56005 |
RA60,63..RHD..GT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-1B56003 |
RA60,63..RHD..GT FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71071-1B41004 |
MA61,RA63..RHD SPORTS SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1B41001 |
MA61,RA63..RHD SPORTS SEAT,BLACK,BLACK,TRIM2# |
1 | ||
| 71071-1B41006 |
MA61,RA63..RHD SPORTS SEAT,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1B56105 |
RA60,63..RHD..GT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-1B56103 |
RA60,63..RHD..GT FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71071-1B56104 |
RA60,63..RHD..GT FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071W - WIRE, FRONT SEAT CUSHION COVER | ||||
| 90580-20007 |
AA63,MA61,RA6#,SA63,TA60 L=1200 |
2 | ||
| 90580-20041 |
AA63,MA61,RA6#,SA63,TA60 L=220 |
2 | ||
| 71071W - WIRE, FRONT SEAT CUSHION COVER | ||||
| 90580-20007 |
AA63,MA61,RA6#,SA63,TA60 L=1200 |
2 | ||
| 90580-20041 |
AA63,MA61,RA6#,SA63,TA60 L=220 |
2 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-1B54004 |
RA60,63..RHD..GT FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-1B54003 |
RA60,63..RHD..GT FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71072-1B75001 |
MA61,RA63..RHD SPORTS SEAT,BLACK,BLACK,TRIM2# |
1 | ||
| 71072-1B75004 |
MA61,RA63..RHD SPORTS SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-1B54005 |
RA60,63..RHD..GT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71072-1B75006 |
MA61,RA63..RHD SPORTS SEAT,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 71072-1B54104 |
RA60,63..RHD..GT FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-1B54103 |
RA60,63..RHD..GT FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71072-1B54105 |
RA60,63..RHD..GT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1B26004 |
RA60,63..GT FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1B18001 |
MA61,RA63 SPORTS SEAT,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1B26003 |
RA60,63..GT FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71073-1B18004 |
MA61,RA63 SPORTS SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1B26005 |
RA60,63..GT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-1B18006 |
MA61,RA63..EUR,GEN SPORTS SEAT,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1B26105 |
RA60,63..GT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-1B26103 |
RA60,63..GT FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71073-1B26104 |
RA60,63..GT FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20020 |
AA63,RA6#,SA63,TA60 L=420 |
4 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20020 |
AA63,RA6#,SA63,TA60 L=420 |
4 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1437005 |
RA60,63..GT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71074-1437003 |
RA60,63..GT FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71074-1437004 |
RA60,63..GT FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1B18004 |
MA61,RA63 SPORTS SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1B18001 |
MA61,RA63 SPORTS SEAT,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1B18006 |
MA61,RA63..EUR,GEN SPORTS SEAT,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 71074-1437103 |
RA60,63..GT FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71074-1437105 |
RA60,63..GT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71074-1437104 |
RA60,63..GT FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71311B - BUSH (FOR FRONT SEAT HINGE PIN) | ||||
| 90386-12018 |
AA63,MA61,RA6#,SA63,TA60 |
2 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1B61004 |
RA60,63..RHD..GT FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-1B61005 |
RA60,63..RHD..GT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71410-1B45006 |
MA61,RA63..RHD SPORTS SEAT,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1B61003 |
RA60,63..RHD..GT FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71410-1B45001 |
MA61,RA63..RHD SPORTS SEAT,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1B45004 |
MA61,RA63..RHD SPORTS SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-1B61105 |
RA60,63..RHD..GT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71410-1B61104 |
RA60,63..RHD..GT FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-1B61103 |
RA60,63..RHD..GT FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1B60005 |
RA60,63..RHD..GT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71420-1B60003 |
RA60,63..RHD..GT FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71420-1B60004 |
RA60,63..RHD..GT FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-1B85001 |
RA63..RHD SPORTS SEAT,BLACK,BLACK,TRIM2# |
1 | ||
| 71420-1B85004 |
RA63..RHD SPORTS SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-1B60104 |
RA60,63..RHD..GT FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-1B60105 |
RA60,63..RHD..GT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71420-1B60103 |
RA60,63..RHD..GT FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1B50004 |
RA60,63..RHD..GT FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-1B50003 |
RA60,63..RHD..GT FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71430-1B50005 |
RA60,63..RHD..GT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430-1B36006 |
MA61,RA63..RHD SPORTS SEAT,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 71430-1B36001 |
MA61,RA63..RHD SPORTS SEAT,BLACK,BLACK,TRIM2# |
1 | ||
| 71430-1B36004 |
MA61,RA63..RHD SPORTS SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-1B50103 |
RA60,63..RHD..GT FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71430-1B50105 |
RA60,63..RHD..GT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430-1B50104 |
RA60,63..RHD..GT FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1B33001 |
MA61,RA63..RHD SPORTS SEAT,BLACK,BLACK,TRIM2# |
1 | ||
| 71440-1B33004 |
MA61,RA63..RHD SPORTS SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-1B45003 |
RA60,63..RHD..GT FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71440-1B45004 |
RA60,63..RHD..GT FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-1B45005 |
RA60,63..RHD..GT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71440-1B33006 |
MA61,RA63..RHD SPORTS SEAT,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 71440-1B45104 |
RA60,63..RHD..GT FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-1B45105 |
RA60,63..RHD..GT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71440-1B45103 |
RA60,63..RHD..GT FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-14160 |
AA63,MA61,RA63..GT,SPR SPORTS SEAT |
1 | ||
| 71511-14140 |
AA63,RA6#,SA63,TA60 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-14140 |
AA63,RA6#,SA63,TA60 |
1 | ||
| 71511-14160 |
AA63,MA61,RA63..GT,SPR SPORTS SEAT |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-14140 |
AA63,RA6#,SA63,TA60 |
1 | ||
| 71551-14150 |
MA61,RA63 SPORTS SEAT |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-14140 |
AA63,RA6#,SA63,TA60 |
1 | ||
| 71552-14010 |
MA61,RA63 SPORTS SEAT |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-14020 |
RA6#,TA60 |
2 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-14020 |
RA6#,TA60 |
2 | ||
| 71564 - PAD, FRONT SEAT BACK, SIDE | ||||
| 71564-14030 |
AA63,RA6#,SA63,TA60 LH |
2 | ||
| 71563-14060 |
AA63,MA61,RA63..GT,SPR RH,SPORTS SEAT |
2 | ||
| 71564-14050 |
AA63,MA61,RA63..GT,SPR LH,SPORTS SEAT |
2 | ||
| 71563-14040 |
AA63,RA6#,SA63,TA60 RH |
2 | ||
| 71564 - PAD, FRONT SEAT BACK, SIDE | ||||
| 71564-14030 |
AA63,RA6#,SA63,TA60 LH |
2 | ||
| 71563-14060 |
AA63,MA61,RA63..GT,SPR RH,SPORTS SEAT |
2 | ||
| 71564-14050 |
AA63,MA61,RA63..GT,SPR LH,SPORTS SEAT |
2 | ||
| 71563-14040 |
AA63,RA6#,SA63,TA60 RH |
2 | ||
| 71564 - PAD, FRONT SEAT BACK, SIDE | ||||
| 71564-14030 |
AA63,RA6#,SA63,TA60 LH |
2 | ||
| 71563-14060 |
AA63,MA61,RA63..GT,SPR RH,SPORTS SEAT |
2 | ||
| 71564-14050 |
AA63,MA61,RA63..GT,SPR LH,SPORTS SEAT |
2 | ||
| 71563-14040 |
AA63,RA6#,SA63,TA60 RH |
2 | ||
| 71564 - PAD, FRONT SEAT BACK, SIDE | ||||
| 71564-14030 |
AA63,RA6#,SA63,TA60 LH |
2 | ||
| 71563-14060 |
AA63,MA61,RA63..GT,SPR RH,SPORTS SEAT |
2 | ||
| 71564-14050 |
AA63,MA61,RA63..GT,SPR LH,SPORTS SEAT |
2 | ||
| 71563-14040 |
AA63,RA6#,SA63,TA60 RH |
2 | ||
| 71581 - PAD, FRONT SEAT BACK SILENCER | ||||
| 71571-24010 |
AA63,RA6#,SA63,TA60 |
2 | ||
| 71581 - PAD, FRONT SEAT BACK SILENCER | ||||
| 71571-24010 |
AA63,RA6#,SA63,TA60 |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-14150 |
MA61,RA63..RHD W/SPORTS SEAT |
1 | ||
| 71610-14130 |
RA6#..RHD..(GT,XT) |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-14060 |
RA60,63..RHD |
1 | ||
| 71620-14061 |
RA60,63..RHD |
1 | ||
| 71620-14180 |
RA63..RHD W/SPORTS SEAT |
1 | ||
| 71620-14181 |
RA63..RHD W/SPORTS SEAT |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-14131 |
MA61,RA63..RHD SPORTS SEAT |
1 | ||
| 71630-14120 |
RA6#..RHD..(GT,XT) |
1 | ||
| 71630-14130 |
RA63..RHD SPORTS SEAT |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-14130 |
RA63..RHD SPORTS SEAT |
1 | ||
| 71640-14110 |
RA6#..RHD |
1 | ||
| 71640-14131 |
MA61,RA63..RHD SPORTS SEAT |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1407001 |
AA63,MA61,RA6#..RHD..(GT,SPR,XT) BLACK,BLACK,TRIM2# |
1 | ||
| 71811-1407006 |
AA63,RA6#..RHD..(GT,XT) DARK BROWN,BROWN,TRIM4# |
1 | ||
| 71811-1407004 |
AA63,MA61,RA6#..RHD..(GT,SPR,XT) BLUE,BLUE,TRIM8# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1407006 |
AA63,RA6#,SA63..RHD DARK BROWN,BEIGE,TRIM4# |
1 | ||
| 71812-1407004 |
AA63,MA61,RA6#,SA63..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 71812-1407001 |
AA63,MA61,RA6#,SA63..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1442004 |
MA61,RA63 SPORTS SEAT,BLUE,BLUE,TRIM8# |
2 | ||
| 71910-1442001 |
MA61,RA63 SPORTS SEAT,BLACK,BLACK,TRIM2# |
2 | ||
| 71910-2236014 |
RA60,63..GT BLUE,BLUE,TRIM8# |
2 | ||
| 71910-1442006 |
MA61,RA63..EUR,GEN SPORTS SEAT,DARK BROWN,BROWN,TRIM4# |
2 | ||
| 71910-2236001 |
RA60,63..GT BLACK,BLACK,TRIM2# |
2 | ||
| 71910-1437001 |
RA60,63..GT BLACK,BLACK,TRIM2# |
2 | ||
| 71910-1437006 |
RA60,63..GT DARK BROWN,BROWN,TRIM4# |
2 | ||
| 71910-1437004 |
RA60,63..GT BLUE,BLUE,TRIM8# |
2 | ||
| 71910-2236006 |
RA60,63..GT DARK BROWN,BROWN,TRIM4# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006001 |
AA63,RA6#,SA63,TA60 W(LOCK),W/LOCK,BLACK,BLACK,TRIM2# |
1 | ||
| 71930-1408006 |
AA63,RA63..GT W(LOCK),W/LOCK,*SPS,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71930-1006016 |
AA63,RA6#,SA63,TA60 W(LOCK),W/LOCK,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71930-1006004 |
AA63,RA6#,SA63,TA60 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001001 |
AA63,RA6#,SA63,TA60 W/O(LOCK),W/O LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001016 |
AA63,RA6#,SA63,TA60 W/O(LOCK),W/O LOCK,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1401004 |
AA63,MA61,RA63..GT,SPR W/O(LOCK),W/O LOCK,*SPS,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001004 |
AA63,RA6#,SA63,TA60 W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1408001 |
AA63,MA61,RA63..GT,SPR W(LOCK),W/LOCK,*SPS,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1401001 |
AA63,MA61,RA63..GT,SPR W/O(LOCK),W/O LOCK,*SPS,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1401006 |
AA63,RA63..GT W/O(LOCK),W/O LOCK,*SPS,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71930-1408004 |
AA63,MA61,RA63..GT,SPR W(LOCK),W/LOCK,*SPS,BLUE,BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006001 |
AA63,RA6#,SA63,TA60 W(LOCK),W/LOCK,BLACK,BLACK,TRIM2# |
1 | ||
| 71930-1408006 |
AA63,RA63..GT W(LOCK),W/LOCK,*SPS,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71930-1006016 |
AA63,RA6#,SA63,TA60 W(LOCK),W/LOCK,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71930-1006004 |
AA63,RA6#,SA63,TA60 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001001 |
AA63,RA6#,SA63,TA60 W/O(LOCK),W/O LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001016 |
AA63,RA6#,SA63,TA60 W/O(LOCK),W/O LOCK,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1401004 |
AA63,MA61,RA63..GT,SPR W/O(LOCK),W/O LOCK,*SPS,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001004 |
AA63,RA6#,SA63,TA60 W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1408001 |
AA63,MA61,RA63..GT,SPR W(LOCK),W/LOCK,*SPS,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1401001 |
AA63,MA61,RA63..GT,SPR W/O(LOCK),W/O LOCK,*SPS,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1401006 |
AA63,RA63..GT W/O(LOCK),W/O LOCK,*SPS,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71930-1408004 |
AA63,MA61,RA63..GT,SPR W(LOCK),W/LOCK,*SPS,BLUE,BLUE,TRIM8# |
2 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-14210 |
RA61,63..RHD;RA60..RHD..(GT,XT) W/ADJUSTER |
1 | ||
| 72010-14240 |
MA61,RA63..RHD W/SPORTS SEAT |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-14210 |
RA61,63..RHD;RA60..RHD..(GT,XT) W/ADJUSTER |
1 | ||
| 72010-14240 |
MA61,RA63..RHD W/SPORTS SEAT |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
AA63,MA61,RA6#,SA63,TA60 |
2 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
AA63,MA61,RA6#,SA63,TA60 |
2 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-14260 |
MA61,RA63..RHD W/SPORTS SEAT |
1 | ||
| 72020-14230 |
RA6#..RHD |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-14260 |
MA61,RA63..RHD W/SPORTS SEAT |
1 | ||
| 72020-14230 |
RA6#..RHD |
1 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-14100 |
AA63,MA61,RA6#,SA63..RHD |
1 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72457-1403001 |
MA61,RA6#,TA60 BLACK,D=58,BLACK,TRIM2# |
4 | ||
| 72457-1403006 |
MA61,RA6#,TA60 DARK BROWN,D=58,BROWN,TRIM4# |
4 | ||
| 72457-1403004 |
MA61,RA6#,TA60 BLUE,D=58,BLUE,TRIM8# |
4 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401016 |
AA63,RA6#,SA63,TA60 RH,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 72526-1401001 |
AA63,MA61,RA6#,SA63,TA60 LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-1401014 |
AA63,MA61,RA6#,SA63,TA60 RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1401014 |
AA63,MA61,RA6#,SA63,TA60 LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-1401001 |
AA63,MA61,RA6#,SA63,TA60 RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72526-1401016 |
AA63,RA6#,SA63,TA60 LH,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401016 |
AA63,RA6#,SA63,TA60 RH,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 72526-1401001 |
AA63,MA61,RA6#,SA63,TA60 LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-1401014 |
AA63,MA61,RA6#,SA63,TA60 RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1401014 |
AA63,MA61,RA6#,SA63,TA60 LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-1401001 |
AA63,MA61,RA6#,SA63,TA60 RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72526-1401016 |
AA63,RA6#,SA63,TA60 LH,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 72553 - COVER, RECLINING PEDAL | ||||
| 72553-12030 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 72760 - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-14040 |
MA61,RA63..RHD SPORTS SEAT |
1 | ||
| 72750-14050 |
AA63,RA6#,SA63..RHD..(GT,XT) |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-2202006 |
AA63,RA6#,SA63..GT,XT DARK BROWN,BROWN,TRIM4# |
1 | ||
| 72791-2202001 |
AA63,RA6#,SA63..GT,XT BLACK,BLACK,TRIM2# |
1 | ||
| 72791-2202004 |
AA63,RA6#,SA63..GT,XT BLUE,BLUE,TRIM8# |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-2202006 |
AA63,RA6#,SA63..GT,XT DARK BROWN,BROWN,TRIM4# |
1 | ||
| 72791-2202001 |
AA63,RA6#,SA63..GT,XT BLACK,BLACK,TRIM2# |
1 | ||
| 72791-2202004 |
AA63,RA6#,SA63..GT,XT BLUE,BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10037 | ||||
| 90119-10048 | ||||
| 90154-80002 | ||||
| 90168-40011 | ||||
| 90179-08073 | ||||
| 90386-12018 | ||||
| 90468-04010 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 93385-16016 | ||||
| 93560-55014 | ||||
(8108- )AA63,MA61,RA63..GT,SPR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71061S - COVER SUB-ASSY, FRONT SEAT BACK, UPPER RH | ||||
| 71061-1401004 |
MA61,RA63 SPORTS SEAT,BLUE,BLUE,TRIM8# |
2 | ||
| 71061-1401006 |
MA61,RA63..EUR,GEN SPORTS SEAT,DARK BROWN,BROWN,TRIM4# |
2 | ||
| 71061-1401001 |
MA61,RA63 SPORTS SEAT,BLACK,BLACK,TRIM2# |
2 | ||
| 71061S - COVER SUB-ASSY, FRONT SEAT BACK, UPPER RH | ||||
| 71061-1401004 |
MA61,RA63 SPORTS SEAT,BLUE,BLUE,TRIM8# |
2 | ||
| 71061-1401006 |
MA61,RA63..EUR,GEN SPORTS SEAT,DARK BROWN,BROWN,TRIM4# |
2 | ||
| 71061-1401001 |
MA61,RA63 SPORTS SEAT,BLACK,BLACK,TRIM2# |
2 | ||
| 71062S - COVER SUB-ASSY, FRONT SEAT BACK, UPPER LH | ||||
| 71062-1401004 |
MA61,RA63 SPORTS SEAT,BLUE,BLUE,TRIM8# |
2 | ||
| 71062-1401006 |
MA61,RA63..EUR,GEN SPORTS SEAT,DARK BROWN,BROWN,TRIM4# |
2 | ||
| 71062-1401001 |
MA61,RA63 SPORTS SEAT,BLACK,BLACK,TRIM2# |
2 | ||
| 71062S - COVER SUB-ASSY, FRONT SEAT BACK, UPPER LH | ||||
| 71062-1401004 |
MA61,RA63 SPORTS SEAT,BLUE,BLUE,TRIM8# |
2 | ||
| 71062-1401006 |
MA61,RA63..EUR,GEN SPORTS SEAT,DARK BROWN,BROWN,TRIM4# |
2 | ||
| 71062-1401001 |
MA61,RA63 SPORTS SEAT,BLACK,BLACK,TRIM2# |
2 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1B56004 |
RA60,63..RHD..GT FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1B56005 |
RA60,63..RHD..GT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-1B56003 |
RA60,63..RHD..GT FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71071-1B41004 |
MA61,RA63..RHD SPORTS SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1B41001 |
MA61,RA63..RHD SPORTS SEAT,BLACK,BLACK,TRIM2# |
1 | ||
| 71071-1B41006 |
MA61,RA63..RHD SPORTS SEAT,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1B56105 |
RA60,63..RHD..GT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-1B56103 |
RA60,63..RHD..GT FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71071-1B56104 |
RA60,63..RHD..GT FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071W - WIRE, FRONT SEAT CUSHION COVER | ||||
| 90580-20007 |
AA63,MA61,RA6#,SA63,TA60 L=1200 |
2 | ||
| 90580-20041 |
AA63,MA61,RA6#,SA63,TA60 L=220 |
2 | ||
| 71071W - WIRE, FRONT SEAT CUSHION COVER | ||||
| 90580-20007 |
AA63,MA61,RA6#,SA63,TA60 L=1200 |
2 | ||
| 90580-20041 |
AA63,MA61,RA6#,SA63,TA60 L=220 |
2 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-1B54004 |
RA60,63..RHD..GT FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-1B54003 |
RA60,63..RHD..GT FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71072-1B75001 |
MA61,RA63..RHD SPORTS SEAT,BLACK,BLACK,TRIM2# |
1 | ||
| 71072-1B75004 |
MA61,RA63..RHD SPORTS SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-1B54005 |
RA60,63..RHD..GT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71072-1B75006 |
MA61,RA63..RHD SPORTS SEAT,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 71072-1B54104 |
RA60,63..RHD..GT FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-1B54103 |
RA60,63..RHD..GT FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71072-1B54105 |
RA60,63..RHD..GT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1B26004 |
RA60,63..GT FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1B18001 |
MA61,RA63 SPORTS SEAT,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1B26003 |
RA60,63..GT FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71073-1B18004 |
MA61,RA63 SPORTS SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1B26005 |
RA60,63..GT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-1B18006 |
MA61,RA63..EUR,GEN SPORTS SEAT,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1B26105 |
RA60,63..GT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-1B26103 |
RA60,63..GT FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71073-1B26104 |
RA60,63..GT FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20020 |
AA63,RA6#,SA63,TA60 L=420 |
4 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20020 |
AA63,RA6#,SA63,TA60 L=420 |
4 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1437005 |
RA60,63..GT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71074-1437003 |
RA60,63..GT FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71074-1437004 |
RA60,63..GT FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1B18004 |
MA61,RA63 SPORTS SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1B18001 |
MA61,RA63 SPORTS SEAT,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1B18006 |
MA61,RA63..EUR,GEN SPORTS SEAT,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 71074-1437103 |
RA60,63..GT FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71074-1437105 |
RA60,63..GT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71074-1437104 |
RA60,63..GT FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71081S - COVER SUB-ASSY, FRONT SEAT BACK SIDE, RH | ||||
| 71081-1401001 |
MA61,RA63 SPORTS SEAT,BLACK,BLACK,TRIM2# |
2 | ||
| 71081-1401004 |
MA61,RA63 SPORTS SEAT,BLUE,BLUE,TRIM8# |
2 | ||
| 71081-1401006 |
MA61,RA63..EUR,GEN SPORTS SEAT,DARK BROWN,BROWN,TRIM4# |
2 | ||
| 71081S - COVER SUB-ASSY, FRONT SEAT BACK SIDE, RH | ||||
| 71081-1401001 |
MA61,RA63 SPORTS SEAT,BLACK,BLACK,TRIM2# |
2 | ||
| 71081-1401004 |
MA61,RA63 SPORTS SEAT,BLUE,BLUE,TRIM8# |
2 | ||
| 71081-1401006 |
MA61,RA63..EUR,GEN SPORTS SEAT,DARK BROWN,BROWN,TRIM4# |
2 | ||
| 71082S - COVER SUB-ASSY, FRONT SEAT BACK SIDE, LH | ||||
| 71082-1401004 |
MA61,RA63 SPORTS SEAT,BLUE,BLUE,TRIM8# |
2 | ||
| 71082-1401006 |
MA61,RA63..EUR,GEN SPORTS SEAT,DARK BROWN,BROWN,TRIM4# |
2 | ||
| 71082-1401001 |
MA61,RA63 SPORTS SEAT,BLACK,BLACK,TRIM2# |
2 | ||
| 71082S - COVER SUB-ASSY, FRONT SEAT BACK SIDE, LH | ||||
| 71082-1401004 |
MA61,RA63 SPORTS SEAT,BLUE,BLUE,TRIM8# |
2 | ||
| 71082-1401006 |
MA61,RA63..EUR,GEN SPORTS SEAT,DARK BROWN,BROWN,TRIM4# |
2 | ||
| 71082-1401001 |
MA61,RA63 SPORTS SEAT,BLACK,BLACK,TRIM2# |
2 | ||
| 71158S - FRAME, FRONT SEAT BACK, UPPER RH | ||||
| 71158-14030 |
MA61,RA63 SPORTS SEAT |
2 | ||
| 71158S - FRAME, FRONT SEAT BACK, UPPER RH | ||||
| 71158-14030 |
MA61,RA63 SPORTS SEAT |
2 | ||
| 71159S - FRAME, FRONT SEAT BACK, UPPER LH | ||||
| 71159-14020 |
MA61,RA63 SPORTS SEAT |
2 | ||
| 71159S - FRAME, FRONT SEAT BACK, UPPER LH | ||||
| 71159-14020 |
MA61,RA63 SPORTS SEAT |
2 | ||
| 71311B - BUSH (FOR FRONT SEAT HINGE PIN) | ||||
| 90386-12018 |
AA63,MA61,RA6#,SA63,TA60 |
2 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1B61004 |
RA60,63..RHD..GT FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-1B61005 |
RA60,63..RHD..GT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71410-1B45006 |
MA61,RA63..RHD SPORTS SEAT,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1B61003 |
RA60,63..RHD..GT FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71410-1B45001 |
MA61,RA63..RHD SPORTS SEAT,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1B45004 |
MA61,RA63..RHD SPORTS SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-1B61105 |
RA60,63..RHD..GT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71410-1B61104 |
RA60,63..RHD..GT FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-1B61103 |
RA60,63..RHD..GT FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1B60005 |
RA60,63..RHD..GT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71420-1B60003 |
RA60,63..RHD..GT FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71420-1B60004 |
RA60,63..RHD..GT FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-1B85001 |
RA63..RHD SPORTS SEAT,BLACK,BLACK,TRIM2# |
1 | ||
| 71420-1B85004 |
RA63..RHD SPORTS SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-1B60104 |
RA60,63..RHD..GT FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-1B60105 |
RA60,63..RHD..GT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71420-1B60103 |
RA60,63..RHD..GT FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1B50004 |
RA60,63..RHD..GT FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-1B50003 |
RA60,63..RHD..GT FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71430-1B50005 |
RA60,63..RHD..GT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430-1B36006 |
MA61,RA63..RHD SPORTS SEAT,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 71430-1B36001 |
MA61,RA63..RHD SPORTS SEAT,BLACK,BLACK,TRIM2# |
1 | ||
| 71430-1B36004 |
MA61,RA63..RHD SPORTS SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-1B50103 |
RA60,63..RHD..GT FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71430-1B50105 |
RA60,63..RHD..GT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430-1B50104 |
RA60,63..RHD..GT FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1B33001 |
MA61,RA63..RHD SPORTS SEAT,BLACK,BLACK,TRIM2# |
1 | ||
| 71440-1B33004 |
MA61,RA63..RHD SPORTS SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-1B45003 |
RA60,63..RHD..GT FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71440-1B45004 |
RA60,63..RHD..GT FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-1B45005 |
RA60,63..RHD..GT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71440-1B33006 |
MA61,RA63..RHD SPORTS SEAT,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 71440-1B45104 |
RA60,63..RHD..GT FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-1B45105 |
RA60,63..RHD..GT FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71440-1B45103 |
RA60,63..RHD..GT FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-14160 |
AA63,MA61,RA63..GT,SPR SPORTS SEAT |
1 | ||
| 71511-14140 |
AA63,RA6#,SA63,TA60 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-14140 |
AA63,RA6#,SA63,TA60 |
1 | ||
| 71511-14160 |
AA63,MA61,RA63..GT,SPR SPORTS SEAT |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-14140 |
AA63,RA6#,SA63,TA60 |
1 | ||
| 71551-14150 |
MA61,RA63 SPORTS SEAT |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-14140 |
AA63,RA6#,SA63,TA60 |
1 | ||
| 71552-14010 |
MA61,RA63 SPORTS SEAT |
1 | ||
| 71563 - PAD, FRONT SEAT BACK, UPPER | ||||
| 71561-14200 |
AA63,MA61,RA63..GT,SPR RH,SPORTS SEAT |
2 | ||
| 71562-14040 |
AA63,MA61,RA63..GT,SPR LH,SPORTS SEAT |
2 | ||
| 71563 - PAD, FRONT SEAT BACK, UPPER | ||||
| 71561-14200 |
AA63,MA61,RA63..GT,SPR RH,SPORTS SEAT |
2 | ||
| 71562-14040 |
AA63,MA61,RA63..GT,SPR LH,SPORTS SEAT |
2 | ||
| 71563 - PAD, FRONT SEAT BACK, UPPER | ||||
| 71561-14200 |
AA63,MA61,RA63..GT,SPR RH,SPORTS SEAT |
2 | ||
| 71562-14040 |
AA63,MA61,RA63..GT,SPR LH,SPORTS SEAT |
2 | ||
| 71563 - PAD, FRONT SEAT BACK, UPPER | ||||
| 71561-14200 |
AA63,MA61,RA63..GT,SPR RH,SPORTS SEAT |
2 | ||
| 71562-14040 |
AA63,MA61,RA63..GT,SPR LH,SPORTS SEAT |
2 | ||
| 71564 - PAD, FRONT SEAT BACK, SIDE | ||||
| 71564-14030 |
AA63,RA6#,SA63,TA60 LH |
2 | ||
| 71563-14060 |
AA63,MA61,RA63..GT,SPR RH,SPORTS SEAT |
2 | ||
| 71564-14050 |
AA63,MA61,RA63..GT,SPR LH,SPORTS SEAT |
2 | ||
| 71563-14040 |
AA63,RA6#,SA63,TA60 RH |
2 | ||
| 71564 - PAD, FRONT SEAT BACK, SIDE | ||||
| 71564-14030 |
AA63,RA6#,SA63,TA60 LH |
2 | ||
| 71563-14060 |
AA63,MA61,RA63..GT,SPR RH,SPORTS SEAT |
2 | ||
| 71564-14050 |
AA63,MA61,RA63..GT,SPR LH,SPORTS SEAT |
2 | ||
| 71563-14040 |
AA63,RA6#,SA63,TA60 RH |
2 | ||
| 71564 - PAD, FRONT SEAT BACK, SIDE | ||||
| 71564-14030 |
AA63,RA6#,SA63,TA60 LH |
2 | ||
| 71563-14060 |
AA63,MA61,RA63..GT,SPR RH,SPORTS SEAT |
2 | ||
| 71564-14050 |
AA63,MA61,RA63..GT,SPR LH,SPORTS SEAT |
2 | ||
| 71563-14040 |
AA63,RA6#,SA63,TA60 RH |
2 | ||
| 71564 - PAD, FRONT SEAT BACK, SIDE | ||||
| 71564-14030 |
AA63,RA6#,SA63,TA60 LH |
2 | ||
| 71563-14060 |
AA63,MA61,RA63..GT,SPR RH,SPORTS SEAT |
2 | ||
| 71564-14050 |
AA63,MA61,RA63..GT,SPR LH,SPORTS SEAT |
2 | ||
| 71563-14040 |
AA63,RA6#,SA63,TA60 RH |
2 | ||
| 71579A - WASHER, FRONT SEAT BACK BOARD SETTING | ||||
| 71788-2201024 |
RA63 SPORTS SEAT,BLUE,BLUE,TRIM8# |
8 | ||
| 71788-2201001 |
RA63 SPORTS SEAT,BLACK,BLACK,TRIM2# |
8 | ||
| 71788-2201006 |
RA63 SPORTS SEAT,DARK BROWN,BROWN,TRIM4# |
8 | ||
| 71579A - WASHER, FRONT SEAT BACK BOARD SETTING | ||||
| 71788-2201024 |
RA63 SPORTS SEAT,BLUE,BLUE,TRIM8# |
8 | ||
| 71788-2201001 |
RA63 SPORTS SEAT,BLACK,BLACK,TRIM2# |
8 | ||
| 71788-2201006 |
RA63 SPORTS SEAT,DARK BROWN,BROWN,TRIM4# |
8 | ||
| 71579C - SCREW, FRONT SEAT BACK BOARD SETTING | ||||
| 93520-14020 |
RA63 *SPS |
8 | ||
| 71579C - SCREW, FRONT SEAT BACK BOARD SETTING | ||||
| 93520-14020 |
RA63 *SPS |
8 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-14150 |
MA61,RA63..RHD W/SPORTS SEAT |
1 | ||
| 71610-14130 |
RA6#..RHD..(GT,XT) |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-14060 |
RA60,63..RHD |
1 | ||
| 71620-14061 |
RA60,63..RHD |
1 | ||
| 71620-14180 |
RA63..RHD W/SPORTS SEAT |
1 | ||
| 71620-14181 |
RA63..RHD W/SPORTS SEAT |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-14131 |
MA61,RA63..RHD SPORTS SEAT |
1 | ||
| 71630-14120 |
RA6#..RHD..(GT,XT) |
1 | ||
| 71630-14130 |
RA63..RHD SPORTS SEAT |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-14130 |
RA63..RHD SPORTS SEAT |
1 | ||
| 71640-14110 |
RA6#..RHD |
1 | ||
| 71640-14131 |
MA61,RA63..RHD SPORTS SEAT |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-1401001 |
RA63..RHD SPORTS SEAT,BLACK,BLACK,TRIM2# |
1 | ||
| 71705-1401004 |
RA63..RHD SPORTS SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71705-1401006 |
RA63..RHD SPORTS SEAT,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 71705-1401106 |
RA63..RHD SPORTS SEAT,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 71705-1401101 |
MA61,RA63..RHD SPORTS SEAT,BLACK,BLACK,TRIM2# |
1 | ||
| 71705-1401104 |
MA61,RA63..RHD SPORTS SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71706-1401004 |
RA63..RHD SPORTS SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71706-1401001 |
RA63..RHD SPORTS SEAT,BLACK,BLACK,TRIM2# |
1 | ||
| 71706-1401106 |
RA63..RHD SPORTS SEAT,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 71706-1401101 |
MA61,RA63..RHD SPORTS SEAT,BLACK,BLACK,TRIM2# |
1 | ||
| 71706-1401006 |
RA63..RHD SPORTS SEAT,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 71706-1401104 |
MA61,RA63..RHD SPORTS SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1407001 |
AA63,MA61,RA6#..RHD..(GT,SPR,XT) BLACK,BLACK,TRIM2# |
1 | ||
| 71811-1407006 |
AA63,RA6#..RHD..(GT,XT) DARK BROWN,BROWN,TRIM4# |
1 | ||
| 71811-1407004 |
AA63,MA61,RA6#..RHD..(GT,SPR,XT) BLUE,BLUE,TRIM8# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1407006 |
AA63,RA6#,SA63..RHD DARK BROWN,BEIGE,TRIM4# |
1 | ||
| 71812-1407004 |
AA63,MA61,RA6#,SA63..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 71812-1407001 |
AA63,MA61,RA6#,SA63..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 71813A - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-1403006 |
AA63,RA63..GT SPORTS SEAT,DARK BROWN,BROWN,TRIM4# |
2 | ||
| 71813-1403004 |
AA63,MA61,RA63..GT,SPR SPORTS SEAT,BLUE,BLUE,TRIM8# |
2 | ||
| 71813-1403001 |
AA63,MA61,RA63..GT,SPR SPORTS SEAT,BLACK,BLACK,TRIM2# |
2 | ||
| 71813A - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-1403006 |
AA63,RA63..GT SPORTS SEAT,DARK BROWN,BROWN,TRIM4# |
2 | ||
| 71813-1403004 |
AA63,MA61,RA63..GT,SPR SPORTS SEAT,BLUE,BLUE,TRIM8# |
2 | ||
| 71813-1403001 |
AA63,MA61,RA63..GT,SPR SPORTS SEAT,BLACK,BLACK,TRIM2# |
2 | ||
| 71814A - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-1401006 |
AA63,RA63..GT SPORTS SEAT,DARK BROWN,BROWN,TRIM4# |
2 | ||
| 71814-1401004 |
AA63,MA61,RA63..GT,SPR SPORTS SEAT,BLUE,BLUE,TRIM8# |
2 | ||
| 71814-1401001 |
AA63,MA61,RA63..GT,SPR SPORTS SEAT,BLACK,BLACK,TRIM2# |
2 | ||
| 71814A - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-1401006 |
AA63,RA63..GT SPORTS SEAT,DARK BROWN,BROWN,TRIM4# |
2 | ||
| 71814-1401004 |
AA63,MA61,RA63..GT,SPR SPORTS SEAT,BLUE,BLUE,TRIM8# |
2 | ||
| 71814-1401001 |
AA63,MA61,RA63..GT,SPR SPORTS SEAT,BLACK,BLACK,TRIM2# |
2 | ||
| 71912A - STAY, FRONT SEAT HEADREST, LH | ||||
| 71912-14040 |
MA61,RA63 SPORTS SEAT |
2 | ||
| 71912A - STAY, FRONT SEAT HEADREST, LH | ||||
| 71912-14040 |
MA61,RA63 SPORTS SEAT |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1442004 |
MA61,RA63 SPORTS SEAT,BLUE,BLUE,TRIM8# |
2 | ||
| 71910-1442001 |
MA61,RA63 SPORTS SEAT,BLACK,BLACK,TRIM2# |
2 | ||
| 71910-2236014 |
RA60,63..GT BLUE,BLUE,TRIM8# |
2 | ||
| 71910-1442006 |
MA61,RA63..EUR,GEN SPORTS SEAT,DARK BROWN,BROWN,TRIM4# |
2 | ||
| 71910-2236001 |
RA60,63..GT BLACK,BLACK,TRIM2# |
2 | ||
| 71910-1437001 |
RA60,63..GT BLACK,BLACK,TRIM2# |
2 | ||
| 71910-1437006 |
RA60,63..GT DARK BROWN,BROWN,TRIM4# |
2 | ||
| 71910-1437004 |
RA60,63..GT BLUE,BLUE,TRIM8# |
2 | ||
| 71910-2236006 |
RA60,63..GT DARK BROWN,BROWN,TRIM4# |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1442004 |
MA61,RA63 SPORTS SEAT,BLUE,BLUE,TRIM8# |
2 | ||
| 71910-1442001 |
MA61,RA63 SPORTS SEAT,BLACK,BLACK,TRIM2# |
2 | ||
| 71910-2236014 |
RA60,63..GT BLUE,BLUE,TRIM8# |
2 | ||
| 71910-1442006 |
MA61,RA63..EUR,GEN SPORTS SEAT,DARK BROWN,BROWN,TRIM4# |
2 | ||
| 71910-2236001 |
RA60,63..GT BLACK,BLACK,TRIM2# |
2 | ||
| 71910-1437001 |
RA60,63..GT BLACK,BLACK,TRIM2# |
2 | ||
| 71910-1437006 |
RA60,63..GT DARK BROWN,BROWN,TRIM4# |
2 | ||
| 71910-1437004 |
RA60,63..GT BLUE,BLUE,TRIM8# |
2 | ||
| 71910-2236006 |
RA60,63..GT DARK BROWN,BROWN,TRIM4# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006001 |
AA63,RA6#,SA63,TA60 W(LOCK),W/LOCK,BLACK,BLACK,TRIM2# |
1 | ||
| 71930-1408006 |
AA63,RA63..GT W(LOCK),W/LOCK,*SPS,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71930-1006016 |
AA63,RA6#,SA63,TA60 W(LOCK),W/LOCK,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71930-1006004 |
AA63,RA6#,SA63,TA60 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001001 |
AA63,RA6#,SA63,TA60 W/O(LOCK),W/O LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001016 |
AA63,RA6#,SA63,TA60 W/O(LOCK),W/O LOCK,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1401004 |
AA63,MA61,RA63..GT,SPR W/O(LOCK),W/O LOCK,*SPS,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001004 |
AA63,RA6#,SA63,TA60 W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1408001 |
AA63,MA61,RA63..GT,SPR W(LOCK),W/LOCK,*SPS,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1401001 |
AA63,MA61,RA63..GT,SPR W/O(LOCK),W/O LOCK,*SPS,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1401006 |
AA63,RA63..GT W/O(LOCK),W/O LOCK,*SPS,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71930-1408004 |
AA63,MA61,RA63..GT,SPR W(LOCK),W/LOCK,*SPS,BLUE,BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006001 |
AA63,RA6#,SA63,TA60 W(LOCK),W/LOCK,BLACK,BLACK,TRIM2# |
1 | ||
| 71930-1408006 |
AA63,RA63..GT W(LOCK),W/LOCK,*SPS,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71930-1006016 |
AA63,RA6#,SA63,TA60 W(LOCK),W/LOCK,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71930-1006004 |
AA63,RA6#,SA63,TA60 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001001 |
AA63,RA6#,SA63,TA60 W/O(LOCK),W/O LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001016 |
AA63,RA6#,SA63,TA60 W/O(LOCK),W/O LOCK,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1401004 |
AA63,MA61,RA63..GT,SPR W/O(LOCK),W/O LOCK,*SPS,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001004 |
AA63,RA6#,SA63,TA60 W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1408001 |
AA63,MA61,RA63..GT,SPR W(LOCK),W/LOCK,*SPS,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1401001 |
AA63,MA61,RA63..GT,SPR W/O(LOCK),W/O LOCK,*SPS,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1401006 |
AA63,RA63..GT W/O(LOCK),W/O LOCK,*SPS,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71930-1408004 |
AA63,MA61,RA63..GT,SPR W(LOCK),W/LOCK,*SPS,BLUE,BLUE,TRIM8# |
2 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-14210 |
RA61,63..RHD;RA60..RHD..(GT,XT) W/ADJUSTER |
1 | ||
| 72010-14240 |
MA61,RA63..RHD W/SPORTS SEAT |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-14210 |
RA61,63..RHD;RA60..RHD..(GT,XT) W/ADJUSTER |
1 | ||
| 72010-14240 |
MA61,RA63..RHD W/SPORTS SEAT |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
AA63,MA61,RA6#,SA63,TA60 |
2 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
AA63,MA61,RA6#,SA63,TA60 |
2 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-14260 |
MA61,RA63..RHD W/SPORTS SEAT |
1 | ||
| 72020-14230 |
RA6#..RHD |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-14260 |
MA61,RA63..RHD W/SPORTS SEAT |
1 | ||
| 72020-14230 |
RA6#..RHD |
1 | ||
| 72071 - PUMP SUB-ASSY, LUMBER SUPPORT | ||||
| 72071-1401001 |
MA61,RA63..RHD SPORTS SEAT,BLACK,BLACK,TRIM2# |
1 | ||
| 72071-1401004 |
MA61,RA63..RHD SPORTS SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 72071-1401006 |
MA61,RA63..RHD SPORTS SEAT,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 72071 - PUMP SUB-ASSY, LUMBER SUPPORT | ||||
| 72071-1401001 |
MA61,RA63..RHD SPORTS SEAT,BLACK,BLACK,TRIM2# |
1 | ||
| 72071-1401004 |
MA61,RA63..RHD SPORTS SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 72071-1401006 |
MA61,RA63..RHD SPORTS SEAT,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-14100 |
AA63,MA61,RA6#,SA63..RHD |
1 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72457-1403001 |
MA61,RA6#,TA60 BLACK,D=58,BLACK,TRIM2# |
4 | ||
| 72457-1403006 |
MA61,RA6#,TA60 DARK BROWN,D=58,BROWN,TRIM4# |
4 | ||
| 72457-1403004 |
MA61,RA6#,TA60 BLUE,D=58,BLUE,TRIM8# |
4 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72457-1403001 |
MA61,RA6#,TA60 BLACK,D=58,BLACK,TRIM2# |
4 | ||
| 72457-1403006 |
MA61,RA6#,TA60 DARK BROWN,D=58,BROWN,TRIM4# |
4 | ||
| 72457-1403004 |
MA61,RA6#,TA60 BLUE,D=58,BLUE,TRIM8# |
4 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72457-1403001 |
MA61,RA6#,TA60 BLACK,D=58,BLACK,TRIM2# |
4 | ||
| 72457-1403006 |
MA61,RA6#,TA60 DARK BROWN,D=58,BROWN,TRIM4# |
4 | ||
| 72457-1403004 |
MA61,RA6#,TA60 BLUE,D=58,BLUE,TRIM8# |
4 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72457-1403001 |
MA61,RA6#,TA60 BLACK,D=58,BLACK,TRIM2# |
4 | ||
| 72457-1403006 |
MA61,RA6#,TA60 DARK BROWN,D=58,BROWN,TRIM4# |
4 | ||
| 72457-1403004 |
MA61,RA6#,TA60 BLUE,D=58,BLUE,TRIM8# |
4 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72457-1403001 |
MA61,RA6#,TA60 BLACK,D=58,BLACK,TRIM2# |
4 | ||
| 72457-1403006 |
MA61,RA6#,TA60 DARK BROWN,D=58,BROWN,TRIM4# |
4 | ||
| 72457-1403004 |
MA61,RA6#,TA60 BLUE,D=58,BLUE,TRIM8# |
4 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401016 |
AA63,RA6#,SA63,TA60 RH,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 72526-1401001 |
AA63,MA61,RA6#,SA63,TA60 LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-1401014 |
AA63,MA61,RA6#,SA63,TA60 RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1401014 |
AA63,MA61,RA6#,SA63,TA60 LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-1401001 |
AA63,MA61,RA6#,SA63,TA60 RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72526-1401016 |
AA63,RA6#,SA63,TA60 LH,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1401016 |
AA63,RA6#,SA63,TA60 RH,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 72526-1401001 |
AA63,MA61,RA6#,SA63,TA60 LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-1401014 |
AA63,MA61,RA6#,SA63,TA60 RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1401014 |
AA63,MA61,RA6#,SA63,TA60 LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-1401001 |
AA63,MA61,RA6#,SA63,TA60 RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72526-1401016 |
AA63,RA6#,SA63,TA60 LH,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 72553 - COVER, RECLINING PEDAL | ||||
| 72553-12030 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 72760 - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-14040 |
MA61,RA63..RHD SPORTS SEAT |
1 | ||
| 72750-14050 |
AA63,RA6#,SA63..RHD..(GT,XT) |
1 | ||
| 72798 - COVER, LUMBAR SUPPORT SWITCH | ||||
| 72798-1401004 |
AA63,MA61,RA63..GT,SPR SPORTS SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 72798-1401001 |
AA63,MA61,RA63..GT,SPR SPORTS SEAT,BLACK,BLACK,TRIM2# |
1 | ||
| 72798-1401006 |
AA63,RA63..GT SPORTS SEAT,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 72798 - COVER, LUMBAR SUPPORT SWITCH | ||||
| 72798-1401004 |
AA63,MA61,RA63..GT,SPR SPORTS SEAT,BLUE,BLUE,TRIM8# |
1 | ||
| 72798-1401001 |
AA63,MA61,RA63..GT,SPR SPORTS SEAT,BLACK,BLACK,TRIM2# |
1 | ||
| 72798-1401006 |
AA63,RA63..GT SPORTS SEAT,DARK BROWN,BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10037 | ||||
| 90119-10048 | ||||
| 90154-80002 | ||||
| 90168-40011 | ||||
| 90179-08073 | ||||
| 90179-08123 | ||||
| 90386-12018 | ||||
| 90468-04010 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 91651-40818 | ||||
| 93385-16016 | ||||
| 93560-14012 | ||||
| 93560-55014 | ||||
| 96160-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
