RA63R-BCMQG (1981)

Toyota Celica

Production Aug 1981 - Aug 1983
Engine 18RG
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )AA63,MA61,RA63,65,SA63

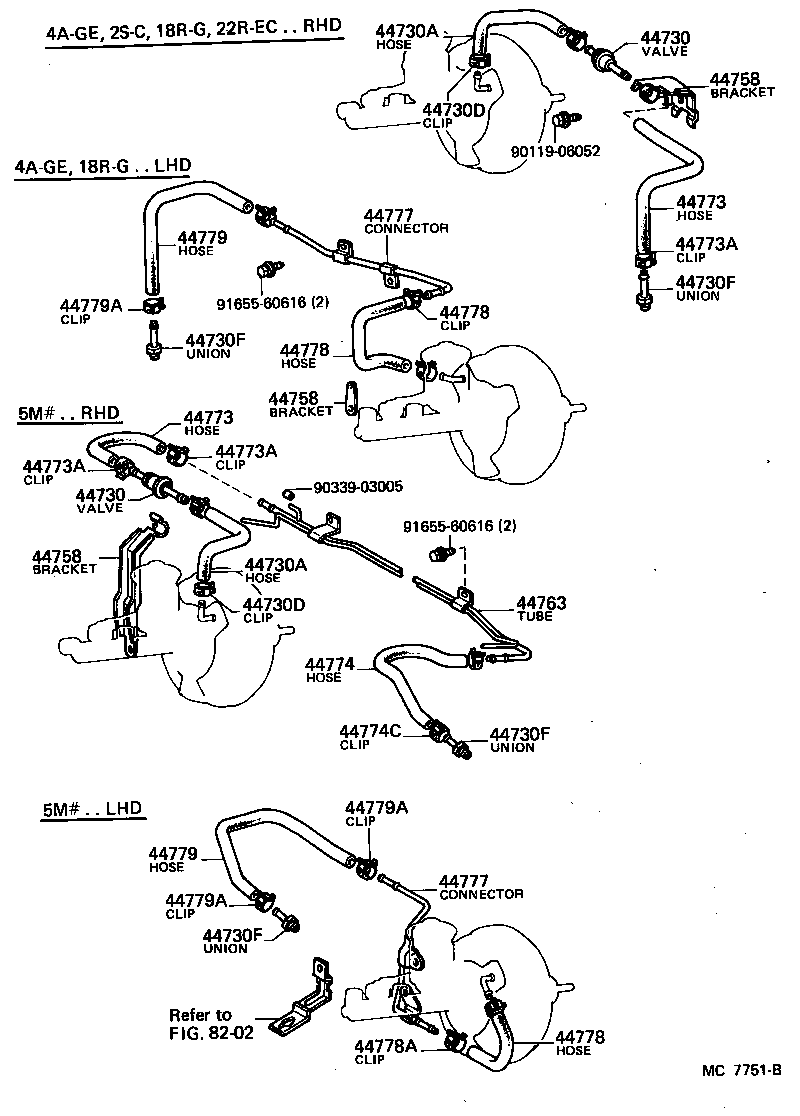

Click highlighted areas on diagram

diagram 44730 44730 44730A 44730A 44730D 44730D 44730F 44730F 44730F 44730F 44758 44758 44758 44763 44773 44773 44773A 44773A 44773A 44774 44774C 44777 44777 44778 44778 44778 44778A 44779 44779 44779A 44779A 44779A 8202 9011906052 9033903005 9165560616 9165560616
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

AA63,RA63,65,SA63..RHD

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

AA63,RA63,65,SA63..RHD

 1
44730A - HOSE, VACUUM, NO.1
44772-14120

AA63,RA63,65,SA63..RHD

 1
44730A - HOSE, VACUUM, NO.1
44772-14120

AA63,RA63,65,SA63..RHD

 1
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16002

AA63,MA61,RA63,65,SA63..RHD

 2
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16002

AA63,MA61,RA63,65,SA63..RHD

 2
44758 - BRACKET, VACUUM CHECK VALVE
44758-14100

AA63,RA63,65,SA63..RHD

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-14100

AA63,RA63,65,SA63..RHD

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-14100

AA63,RA63,65,SA63..RHD

 1
44773 - HOSE, VACUUM, NO.2
44773-14320

RA63..RHD

 1
44773 - HOSE, VACUUM, NO.2
44773-14320

RA63..RHD

 1
44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2)
90467-16002

AA63,MA61,RA6#,SA63..RHD

 2
44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2)
90467-16002

AA63,MA61,RA6#,SA63..RHD

 2
44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2)
90467-16002

AA63,MA61,RA6#,SA63..RHD

 2
Common parts
90119-06052
90339-03005
91655-60616
Linked diagrams
8202

(8108-8308)RA63..RHD

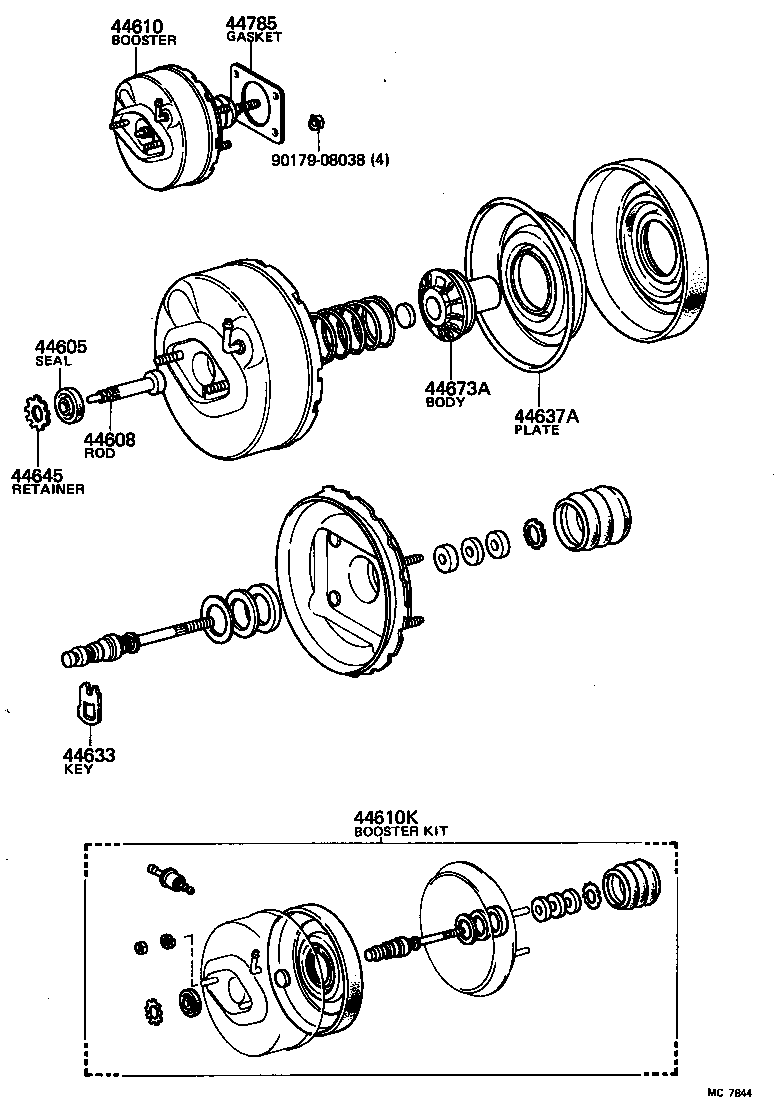

Click highlighted areas on diagram

diagram 44605 44608 44610 44610K 44633 44637A 44645 44673A 44785 9017908038
Part # Description Qty Price
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-28130

RA63..RHD

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-28130

RA63..RHD

 1
44610 - BOOSTER ASSY, BRAKE
44610-14610

RA63..RHD

 1
44610K - BOOSTER KIT, BRAKE
04443-14370

RA63..RHD

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-28130

RA63..RHD

 1
44637A - PLATE, BOOSTER DIAPHRAGM
44637-28130

RA63..RHD

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-22020

AA63,RA6#,SA63..RHD

 1
44673A - BODY, BOOSTER VALVE
44673-14610

RA63..RHD

 1
44785 - GASKET, BRAKE BOOSTER
44785-20030

AA63,MA61,RA6#,SA63,TA60

 1
Common parts
90179-08038
