RA61R-BLPSSW (1981)

Toyota Celica

Production Aug 1981 - Aug 1983
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )RHD

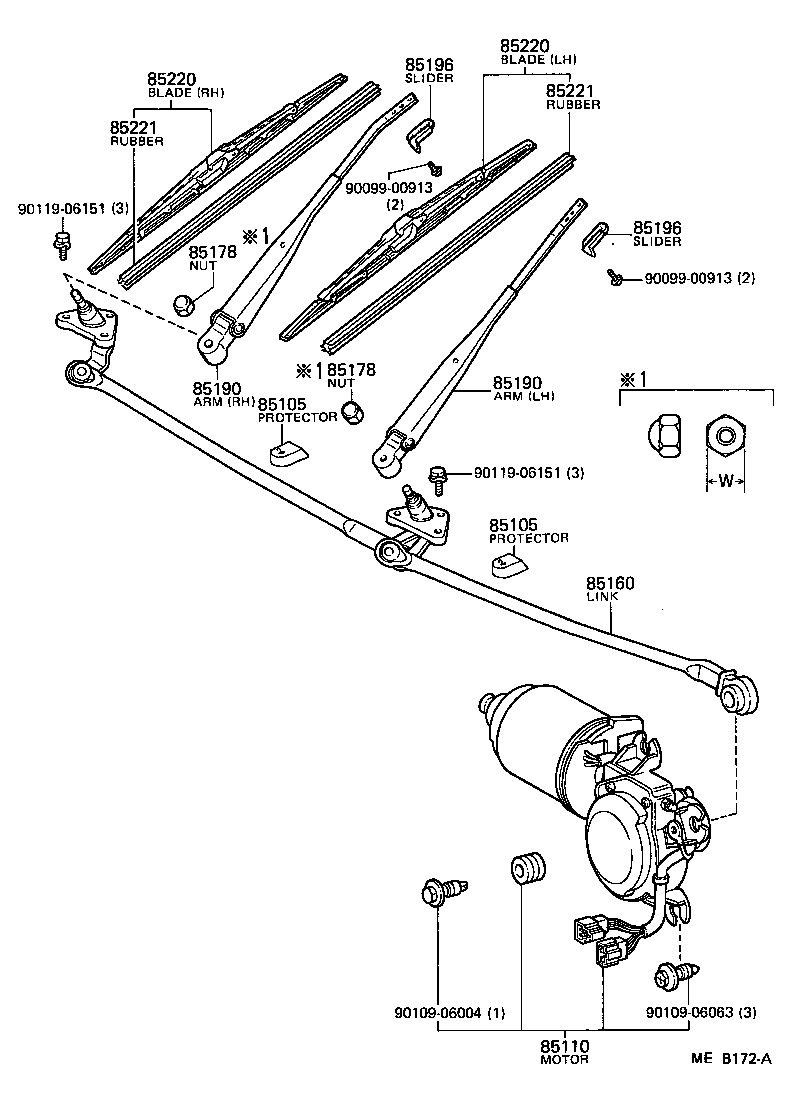

Click highlighted areas on diagram

diagram 85105 85105 85110 85160 85178 85178 85190 85190 85196 85196 85220 85220 85221 85221 9009900913 9009900913 9010906004 9010906063 9011906151 9011906151
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-14190

AA63,RA6#,SA63..RHD

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-14240

MA61,RA6#..RHD

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08013

MA61,RA6#,TA60

W=14

 2
90176-08029

AA63,MA61,RA6#,SA63,TA60

W=12

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08013

MA61,RA6#,TA60

W=14

 2
90176-08029

AA63,MA61,RA6#,SA63,TA60

W=12

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-14360

MA61,RA6#..RHD

RH

 1
85190-14360

MA61,RA61..RHD

RH

 1
85210-14130

RA6#..RHD

LH

 1
85210-14130

RA61..RHD

LH

 1
85190-14470

RA61..RHD

RH

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85190-14360

MA61,RA6#..RHD

RH

 1
85190-14360

MA61,RA61..RHD

RH

 1
85210-14130

RA6#..RHD

LH

 1
85210-14130

RA61..RHD

LH

 1
85190-14470

RA61..RHD

RH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-14310

MA61,RA61..RHD

RH

 1
85220-14310

MA61,RA6#..RHD

RH

 1
85220-14360

MA61,RA61..RHD

LH

 1
85220-14360

MA61,RA6#..RHD

LH

 1
85220-16110

MA61,RA6#..RHD

LH

 1
85220-16100

MA61,RA6#..RHD

RH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-14310

MA61,RA61..RHD

RH

 1
85220-14310

MA61,RA6#..RHD

RH

 1
85220-14360

MA61,RA61..RHD

LH

 1
85220-14360

MA61,RA6#..RHD

LH

 1
85220-16110

MA61,RA6#..RHD

LH

 1
85220-16100

MA61,RA6#..RHD

RH

 1
85221 - BLADE, WINDSHIELD WIPER
85221-30080

MA61,RA6#..RHD

RH,LH

 2
85221 - BLADE, WINDSHIELD WIPER
85221-30080

MA61,RA6#..RHD

RH,LH

 2
Common parts
90099-00913
90109-06004
90109-06063
90119-06151
