RA61R-BLPSSW (1981)

Toyota Celica

Production Aug 1981 - Aug 1983
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )RHD

Click highlighted areas on diagram

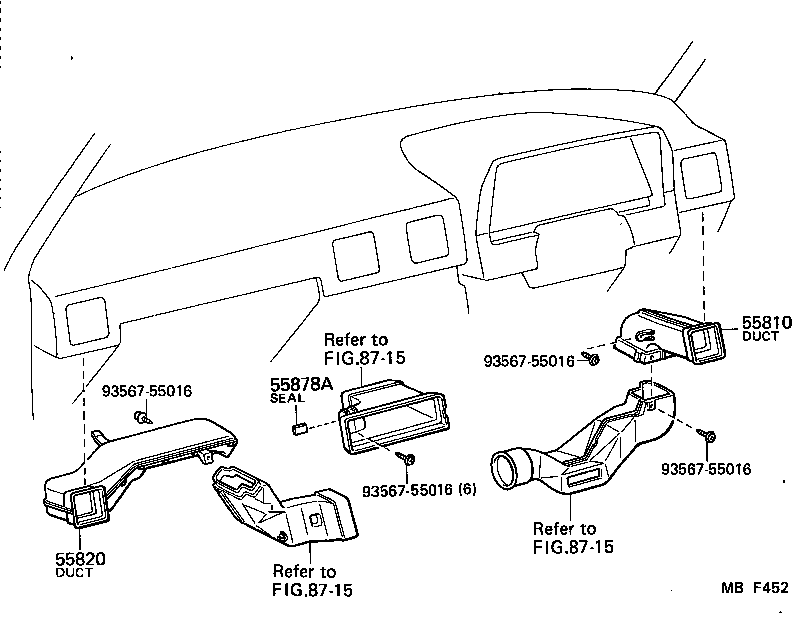

diagram 55810 55820 55878A 8715 8715 8715 9356755016 9356755016 9356755016 9356755016
Part # Description Qty Price
55810 - DUCT ASSY, SIDE VENTILATOR, RH
55084-14090

AA63,MA61,RA6#,SA63..RHD

 1
55820 - DUCT ASSY, SIDE VENTILATOR, LH
55088-14030

AA63,MA61,RA6#,SA63..RHD

 1
55878A - SEAL, AIR DUCT
55878-14020

AA63,MA61,RA6#,SA63..RHD

 1
Common parts
93567-55016
Linked diagrams
8715
