RA61R-BLPSSW (1981)

Toyota Celica

Production Aug 1981 - Aug 1983
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)AA63,RA61,65..RHD

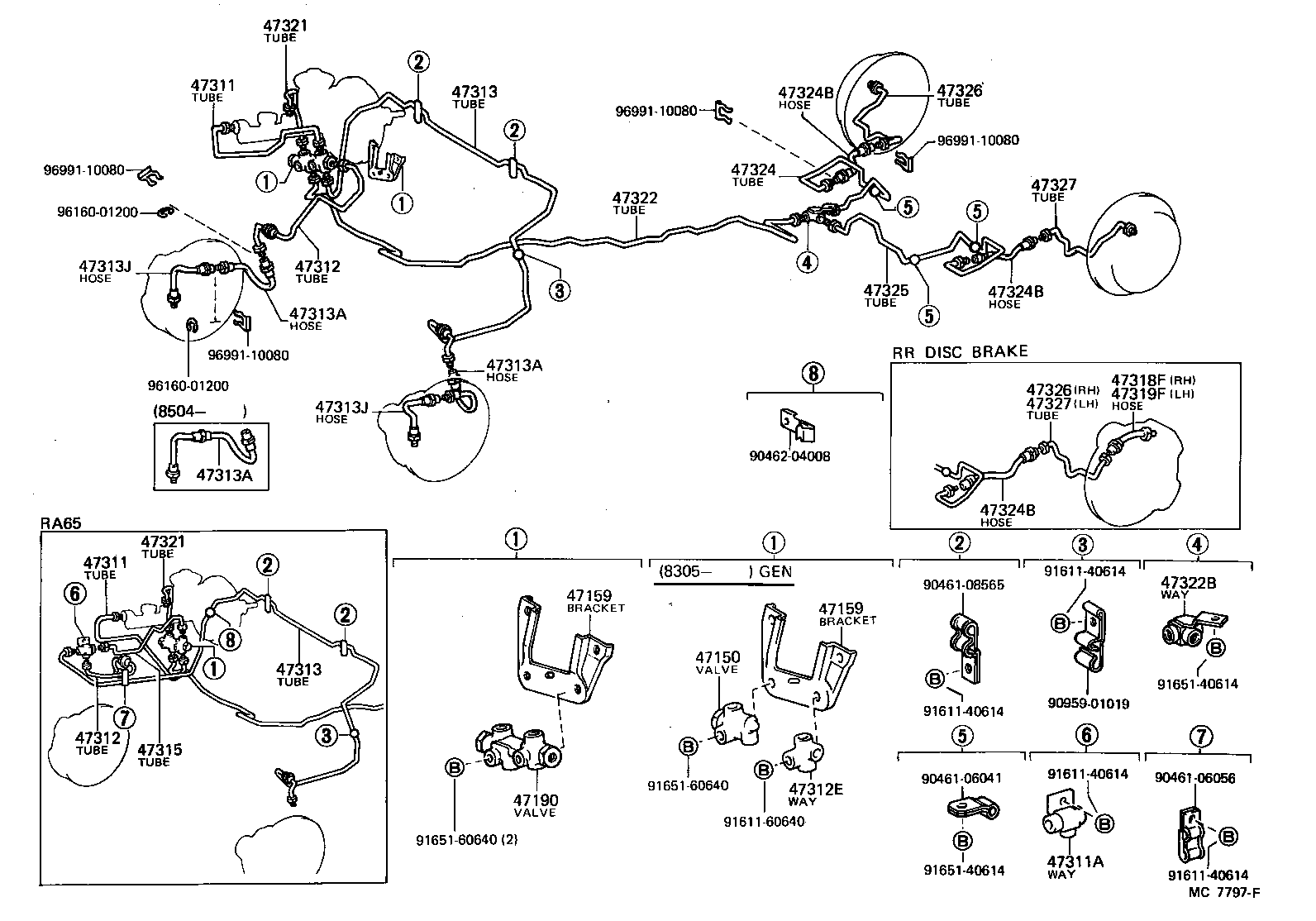

Click highlighted areas on diagram

diagram 47150 47159 47159 47190 47311 47311 47311A 47312 47312 47312E 47313 47313 47313A 47313A 47313A 47313J 47313J 47315 47318F 47319F 47321 47321 47322 47322B 47324 47324B 47324B 47324B 47325 47326 47326 47327 47327 9046106041 9046106056 9046108565 9046204008 9095901019 9161140614 9161140614 9161140614 9161140614 9161160640 9165140614 9165140614 9165160640 9165160640 9616001200 9616001200 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47159 - BRACKET, PROPORTIONING VALVE
47159-14030

RA60,61..RHD

 1
47159 - BRACKET, PROPORTIONING VALVE
47159-14030

RA60,61..RHD

 1
47190 - VALVE ASSY, PROPORTIONING & BY-PASS
47190-22040

RA60,61..RHD

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-14210

RA60,61..RHD

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-14210

RA60,61..RHD

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-14110

AA63,RA60,61,SA63..RHD

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-14110

AA63,RA60,61,SA63..RHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-14110

RA60,61..RHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-14110

RA60,61..RHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02426

AA63,RA6#,SA63,TA60

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02426

AA63,RA6#,SA63,TA60

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02426

AA63,RA6#,SA63,TA60

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
96960-32454

AA63,RA6#,SA63,TA60

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
96960-32454

AA63,RA6#,SA63,TA60

 2
47321 - TUBE, REAR BRAKE, NO.1
47321-14090

RA60,61..RHD

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-14090

RA60,61..RHD

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-14100

RA61..RHD

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10109

AA63,MA61,RA61,63,65,SA63

 1
47324 - TUBE, REAR BRAKE, NO.4
47325-14030

RA61..EUG;MA61,RA63..EUR,GEN

 1
47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)
96950-39955

AA63,MA61,RA61,63,65,SA63

 2
47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)
96950-39955

AA63,MA61,RA61,63,65,SA63

 2
47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)
96950-39955

AA63,MA61,RA61,63,65,SA63

 2
47325 - TUBE, REAR BRAKE, NO.5
47326-14030

RA61..EUG;MA61,RA63..EUR,GEN

 1
47326 - TUBE, REAR BRAKE, NO.6
47327-14020

AA63,RA61,SA63..GTS,ST,XT

 1
47326 - TUBE, REAR BRAKE, NO.6
47327-14020

AA63,RA61,SA63..GTS,ST,XT

 1
47327 - TUBE, REAR BRAKE, NO.7
47328-14020

AA63,RA61,SA63..GTS,ST,XT

 1
47327 - TUBE, REAR BRAKE, NO.7
47328-14020

AA63,RA61,SA63..GTS,ST,XT

 1
Common parts
90461-06041
90461-06056
90461-08565
90462-04008
90959-01019
91611-40614
91611-60640
91651-40614
91651-60640
96160-01200
96991-10080
