RA61R-BLPMS (1983)
Toyota Celica
Production
Aug 1983
-
Jul 1985
Engine
21R
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

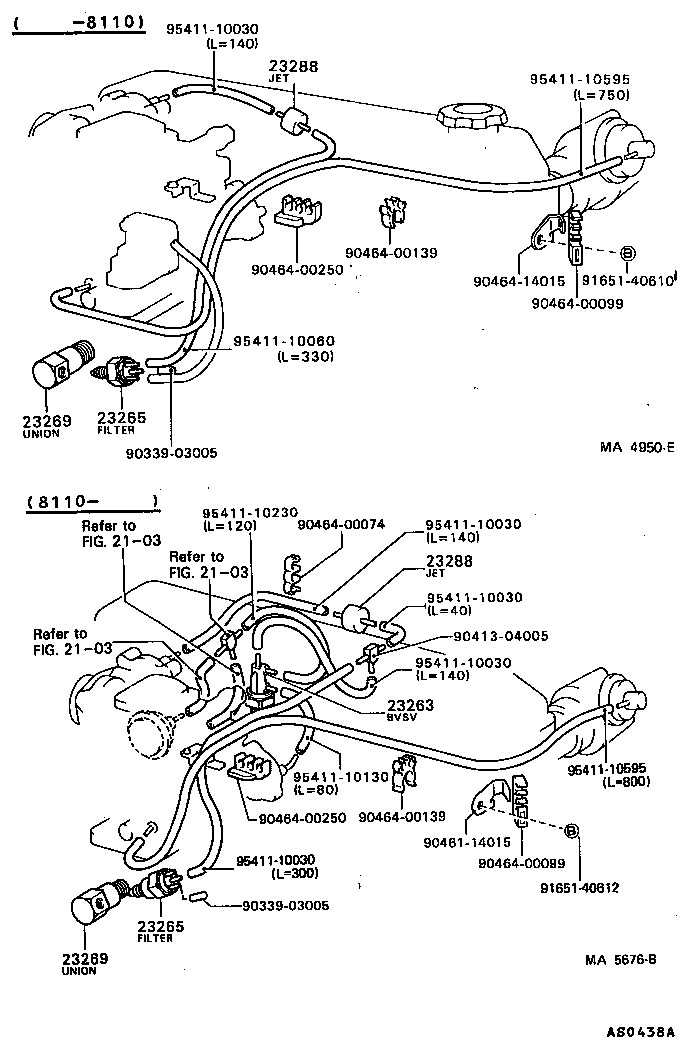

(8108-8408)21R..GEN
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
21R#,22REC..RA60,61,65 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
21R#,22REC..RA60,61,65 |
1 | ||
| 23269 - UNION(FOR GAS FILTER) | ||||
| 90404-54016 |
21R..RA61 |
1 | ||
| 90404-54016 |
21R#..RA60,61 |
1 | ||
| 23269 - UNION(FOR GAS FILTER) | ||||
| 90404-54016 |
21R..RA61 |
1 | ||
| 90404-54016 |
21R#..RA60,61 |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04005 |
21R#..RA60,61 |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04005 |
21R#..RA60,61 |
1 | ||
| Common parts | ||||
| 90339-03005 | ||||
| 90413-04005 | ||||
| 90461-14015 | ||||
| 90464-00074 | ||||
| 90464-00099 | ||||
| 90464-00139 | ||||
| 90464-00250 | ||||
| 90464-14015 | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||
| 95411-10030 | ||||
| 95411-10060 | ||||
| 95411-10130 | ||||
| 95411-10230 | ||||
| 95411-10595 | ||||
| Linked diagrams | ||||
| 2103 | ||||

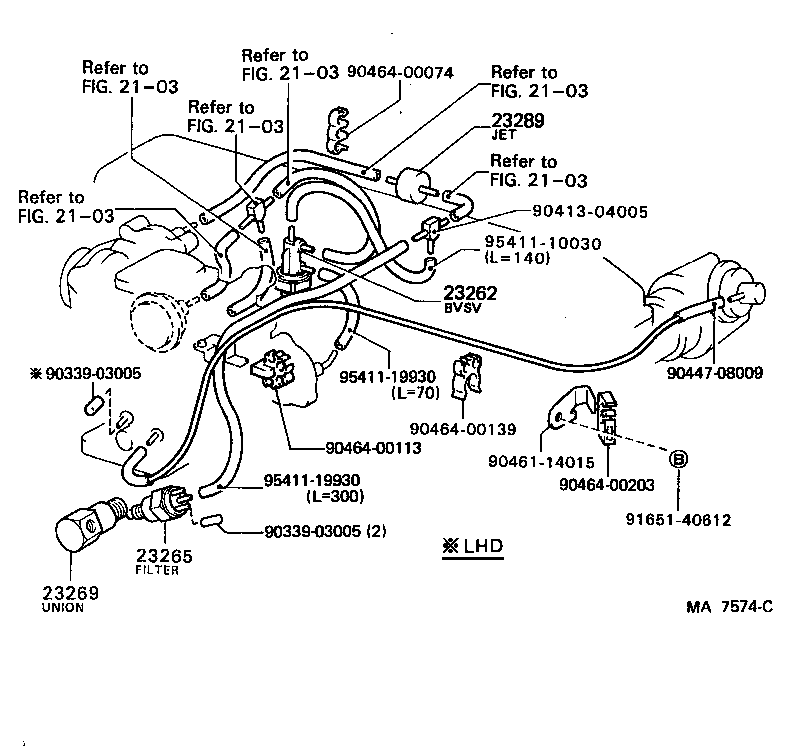

(8408-8507)21R..GEN
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 25810-27010 |
21R#..RA61 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
21R#,22REC..RA60,61,65 |
1 | ||
| 23269 - UNION(FOR GAS FILTER) | ||||
| 90404-54016 |
21R..RA61 |
1 | ||
| 90404-54016 |
21R#..RA60,61 |
1 | ||
| 23289 - JET, NO.2 | ||||
| 90925-04006 |
21R#..RA61 |
1 | ||
| Common parts | ||||
| 90339-03005 | ||||
| 90413-04005 | ||||
| 90447-08009 | ||||
| 90461-14015 | ||||
| 90464-00074 | ||||
| 90464-00113 | ||||
| 90464-00139 | ||||
| 90464-00203 | ||||
| 91651-40612 | ||||
| 95411-10030 | ||||
| 95411-19930 | ||||
| Linked diagrams | ||||
| 2103 | ||||
