RA61R-BCPSSW (1981)

Toyota Celica

Production Aug 1981 - Aug 1983
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

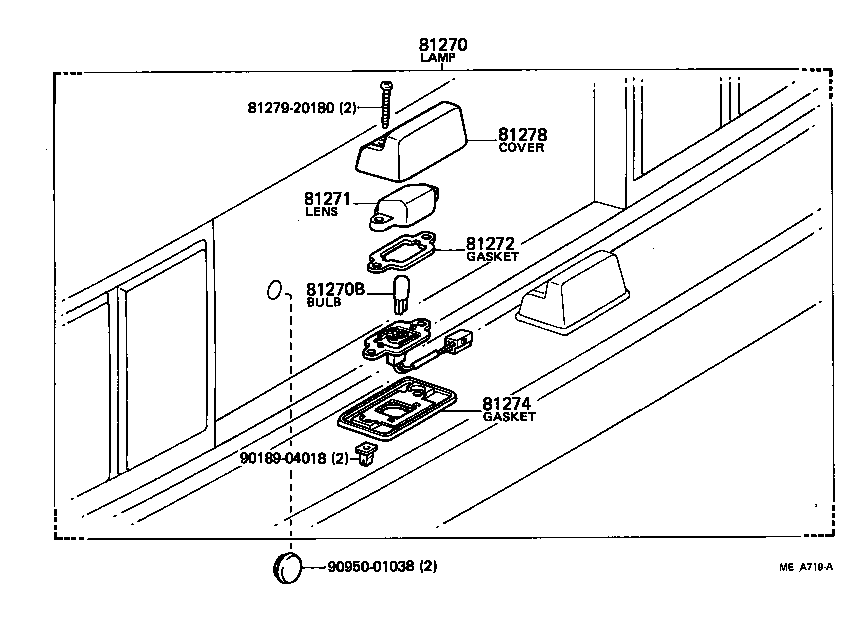

Click highlighted areas on diagram

diagram 81270 81270B 81271 81272 81274 81278 8127920180 9018904018 9095001038
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-80006

MA61,RA6#,TA60

BUMPER

 2
81270-29545

MA61,RA6#,TA60

BUMPER

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

MA61..5F..SAA;AA63,MA61,RA6#,SA63,TA60..ARL,EUR,GEN,ME,SA

12V 5W,12V 5W,BUMPER

 2
81271 - LENS, LICENSE PLATE LAMP
81271-22110

MA61..5F..SAA;AA63,MA61,RA6#,SA63,TA60..ARL,EUR,GEN,ME,SA

BUMPER

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-22110

MA61..5F..SAA;AA63,MA61,RA6#,SA63,TA60..ARL,EUR,GEN,ME,SA

BUMPER

 2
81274 - GASKET, LICENSE PLATE LAMP BODY
81274-22110

MA61..5F..SAA;AA63,MA61,RA6#,SA63,TA60..ARL,EUR,GEN,ME,SA

BUMPER

 2
81278 - COVER, LICENSE PLATE LAMP
81276-10101

MA61..5F..SAA;AA63,MA61,RA6#,SA63,TA60..ARL,EUR,GEN,ME,SA

BUMPER

 2
Common parts
81279-20180
90189-04018
90950-01038
