RA61R-BCPSSW (1981)

Toyota Celica

Production Aug 1981 - Aug 1983
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

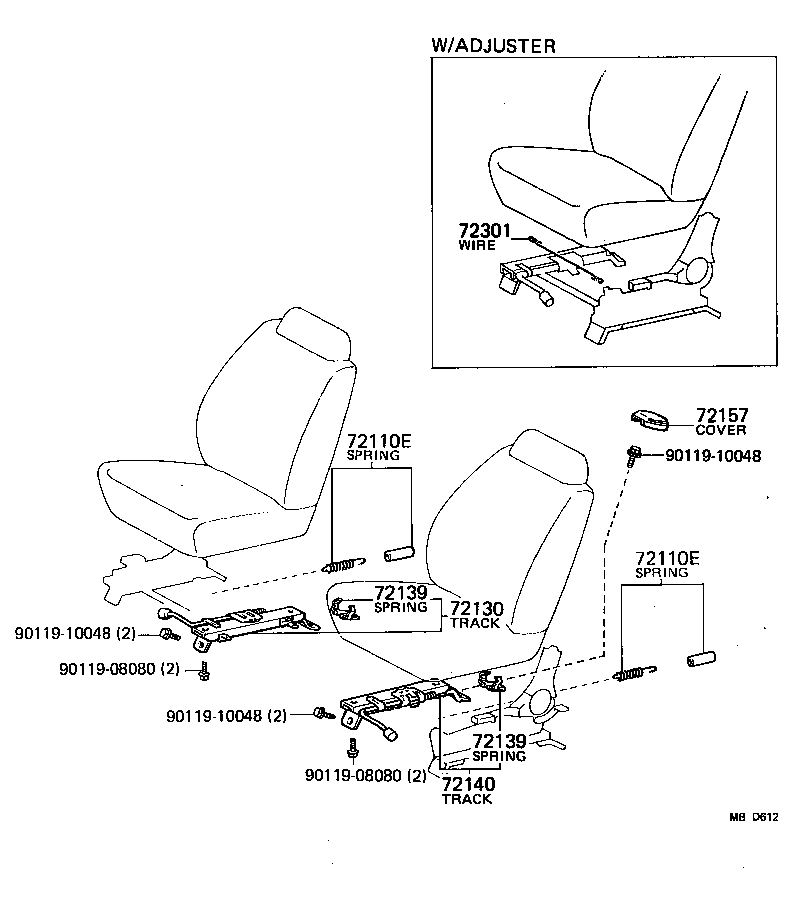

Click highlighted areas on diagram

diagram 72110E 72110E 72130 72139 72139 72140 72157 72301 9011908080 9011908080 9011910048 9011910048 9011910048
Part # Description Qty Price
72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK)
90507-18002

AA63,MA61,RA6#,SA63,TA60

 2
72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK)
90507-18002

AA63,MA61,RA6#,SA63,TA60

 2
72130 - TRACK ASSY, RH SEAT, INNER
72130-14240

RA60,61,65,SA63..RHD..ST

 1
72130-14250

MA61,RA61,63..RHD;RA60..RHD..(GT,XT)

W/ADJUSTER

 1
72139 - SPRING, SEAT TRACK COVER
72139-14010

AA63,MA61,RA6#,SA63,TA60

 2
72139 - SPRING, SEAT TRACK COVER
72139-14010

AA63,MA61,RA6#,SA63,TA60

 2
72140 - TRACK ASSY, LH SEAT, INNER
72140-14300

AA63,MA61,RA6#,SA63..RHD

 1
72157 - COVER, SEAT TRACK BRACKET, INNER
72157-14010

AA63,MA61,RA6#,SA63,TA60

 2
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72301-14050

AA63,RA61,TA60..(GTS,LT,ST)..EUR

W/ADJUSTER

 1
Common parts
90119-08080
90119-10048
