RA61L-BLPSSW (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)RA60,61,65

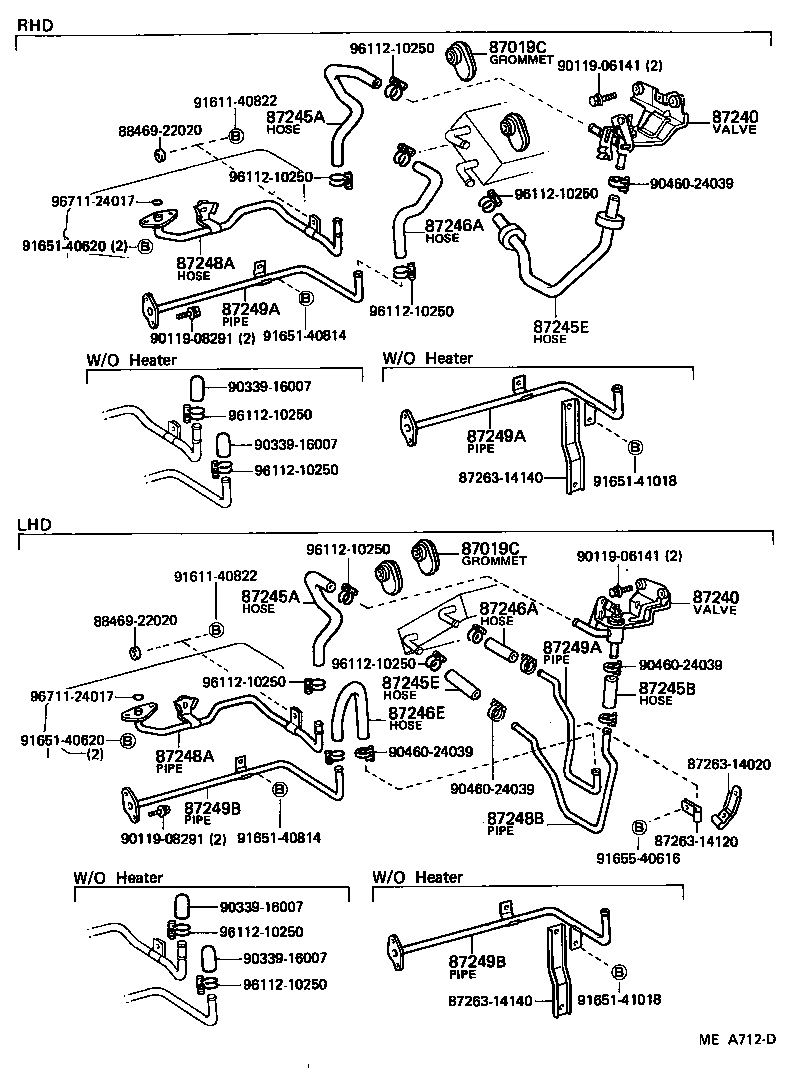

Click highlighted areas on diagram

diagram 87019C 87019C 87240 87240 87245A 87245A 87245B 87245E 87245E 87246A 87246A 87246E 87248A 87248A 87248B 87249A 87249A 87249A 87249B 87249B 8726314020 8726314120 8726314140 8726314140 8846922020 8846922020 9011906141 9011906141 9011908291 9011908291 9033916007 9033916007 9033916007 9033916007 9046024039 9046024039 9046024039 9046024039 9161140822 9161140822 9165140620 9165140620 9165140814 9165140814 9165141018 9165141018 9165540616 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9671124017 9671124017
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01015

AA63,MA61,RA6#,SA63,TA60

 2
87019C - GROMMET, HEATER HOSE
90480-01015

AA63,MA61,RA6#,SA63,TA60

 2
87240 - VALVE ASSY, HEATER WATER
87240-14120

AA63,RA60,61,63,TA60..LHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-14120

AA63,RA60,61,63,TA60..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-14890

RA60,61..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-14890

RA60,61..LHD

 1
87245B - HOSE, HEATER WATER, INLET B
99552-30100

RA6#,TA60..LHD

*H,L=55

 1
87245E - HOSE, HEATER WATER, INLET E
99552-30100

RA60,61..LHD

*H,L=55

 1
87245E - HOSE, HEATER WATER, INLET E
99552-30100

RA60,61..LHD

*H,L=55

 1
87246A - HOSE, HEATER WATER, OUTLET A
99552-30100

RA6#,TA60..LHD

*H,L=55

 1
87246A - HOSE, HEATER WATER, OUTLET A
99552-30100

RA6#,TA60..LHD

*H,L=55

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-14880

RA60,61..LHD

 1
87248A - PIPE, HEATER WATER INLET, A
87208-14160

RA60,61

 1
87248A - PIPE, HEATER WATER INLET, A
87208-14160

RA60,61

 1
87248B - PIPE, HEATER WATER INLET, B
87248-14210

RA60,61..LHD

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-14200

RA60,61..LHD

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-14200

RA60,61..LHD

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-14200

RA60,61..LHD

 1
87249B - PIPE, HEATER WATER OUTLET, B
87208-20062

RA60,61..LHD

 1
87249B - PIPE, HEATER WATER OUTLET, B
87208-20062

RA60,61..LHD

 1
Common parts
87263-14020
87263-14120
87263-14140
88469-22020
90119-06141
90119-08291
90339-16007
90460-24039
91611-40822
91651-40620
91651-40814
91651-41018
91655-40616
96112-10250
96711-24017
