RA61L-BLPSSW (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

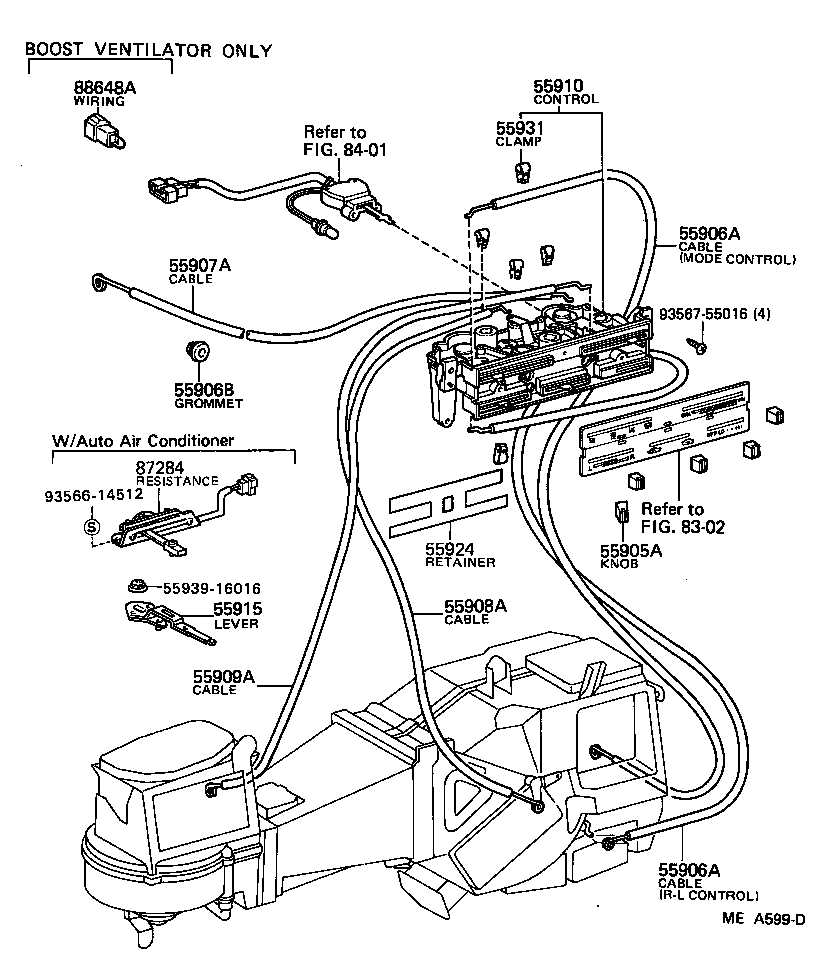

Click highlighted areas on diagram

diagram 55905A 55906A 55906A 55906B 55907A 55908A 55909A 55910 55915 55924 55931 5593916016 8302 8401 87284 88648A 9356614512 9356755016
Part # Description Qty Price
55905A - KNOB, HEATER CONTROL
55905-12080

MA61..TWC..(EUR,SA);AA63,RA61,63,TA60..EUG

*IPM

 5
55905-12060

AA63,MA61,RA6#,SA63,TA60..ARL,EUR,GEN,ME,SAA

 5
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-14170

AA63,MA61,RA60,61,63,TA60..LHD

L=585

 1
55906-14140

AA63,MA61,RA60,61,63,TA60..LHD

L=470

 1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-14170

AA63,MA61,RA60,61,63,TA60..LHD

L=585

 1
55906-14140

AA63,MA61,RA60,61,63,TA60..LHD

L=470

 1
55906B - GROMMET(FOR HEATER CONTROL CABLE)
90480-13009

AA63,RA60,61,63,TA60..LHD

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-14230

AA63,RA60,61,63,TA60..LHD

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-14110

AA63,MA61,RA60,61,63,TA60..LHD

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-14060

AA63,MA61,RA60,61,63,TA60..LHD

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-14320

AA63,MA61,RA60,61,63,TA60..LHD

 1
55931 - CLAMP, HEATER CONTROL WIRE
55933-24010

AA63,MA61,RA60,61,63,TA60..LHD

 5
Common parts
55939-16016
93566-14512
93567-55016
Linked diagrams
8302
8401

(8108- )LHD

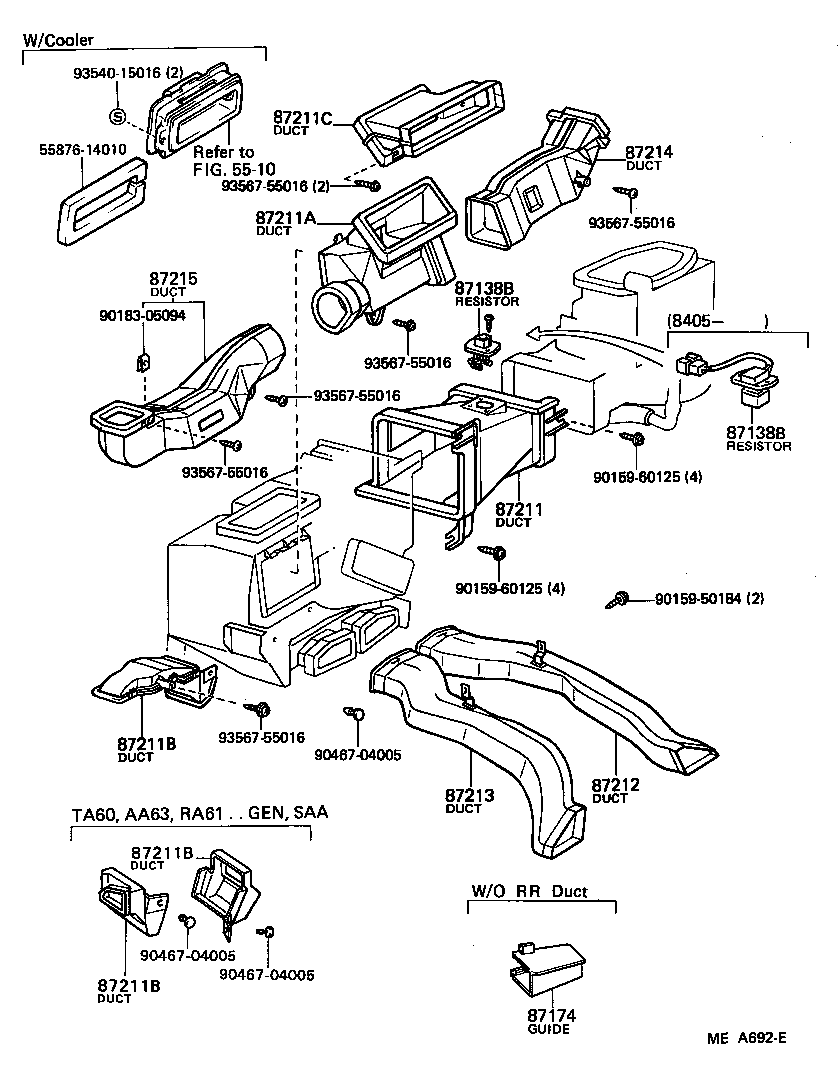

Click highlighted areas on diagram

diagram 5510 5587614010 87138B 87138B 87174 87211 87211A 87211B 87211B 87211B 87211C 87212 87213 87214 87215 9015950184 9015960125 9015960125 9018305094 9046704005 9046704005 9046704005 9354015016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016
Part # Description Qty Price
87138B - RESISTOR, HEATER BLOWER
87138-14060

AA63,MA61,RA6#,TA60..LHD

 1
87138B - RESISTOR, HEATER BLOWER
87138-14060

AA63,MA61,RA6#,TA60..LHD

 1
87174 - GUIDE, AIR DUCT
87174-14040

RA61..EUG;MA61,RA60,63,TA60

 1
87211 - DUCT, AIR, NO.1
87201-14150

MA61,RA6#,TA60..LHD

 1
87211A - DUCT, AIR, NO.2
87201-14130

AA63,MA61,RA60,61,63,TA60..LHD

 1
87211B - DUCT, AIR, NO.3
87201-14140

MA61,RA6#,TA60..LHD

 1
87211B - DUCT, AIR, NO.3
87201-14140

MA61,RA6#,TA60..LHD

 1
87211B - DUCT, AIR, NO.3
87201-14140

MA61,RA6#,TA60..LHD

 1
87211C - DUCT, AIR, NO.4
55086-14100

AA63,MA61,RA60,61,63,TA60..LHD

 1
87212 - DUCT, AIR, REAR NO.1
87212-24010

MA61,RA6#,TA60..EUR,ME

 1
87213 - DUCT, AIR, REAR NO.2
87213-24010

MA61,RA6#,TA60..EUR,ME

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55087-14100

MA61,RA6#,TA60..LHD..(EUR,GEN,ME)

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55085-14090

MA61,RA6#,TA60..LHD..(EUR,GEN,ME)

 1
Common parts
55876-14010
90159-50184
90159-60125
90183-05094
90467-04005
93540-15016
93567-55016
Linked diagrams
5510
