RA61L-BLPSSW (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)RA61..RHD ; (8108-8507)RA61..LHD..4FC; (8108-8507)RA61..LHD..5F..EUG ;

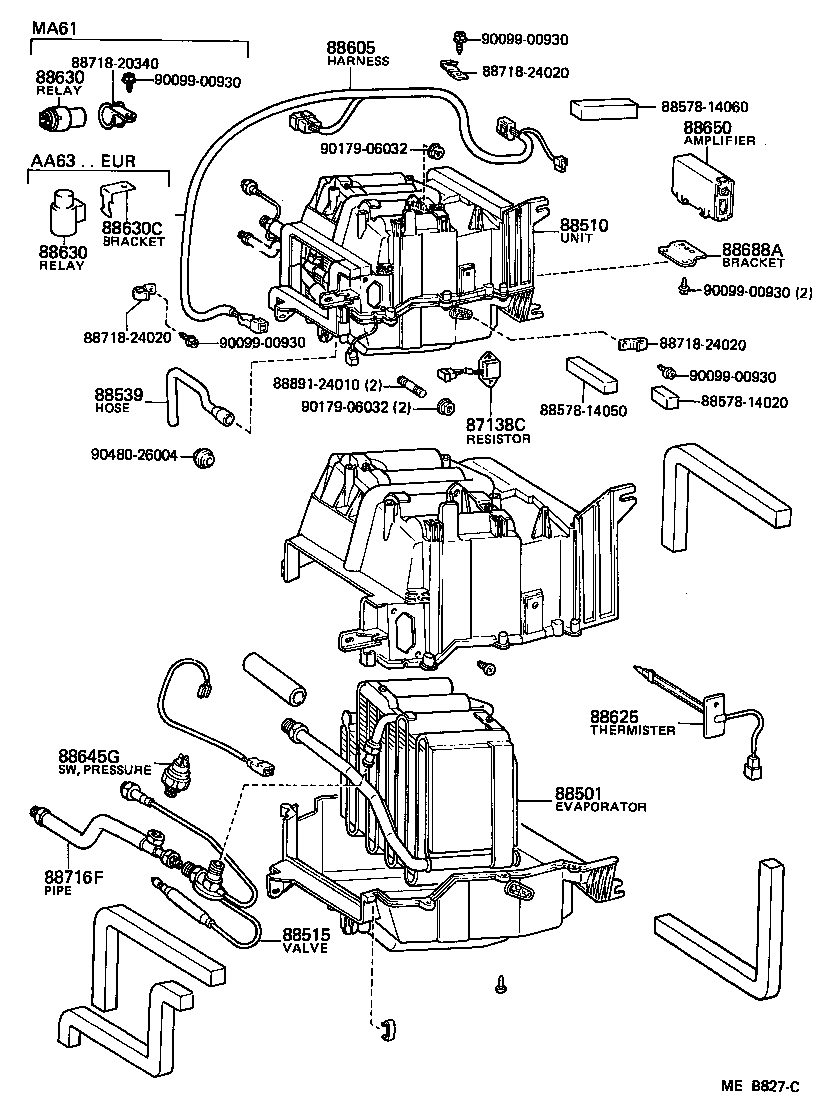

Click highlighted areas on diagram

diagram 87138C 88501 88510 88515 88539 8857814020 8857814050 8857814060 88605 88625 88630 88630 88630C 88645G 88650 88688A 88716F 8871820340 8871824020 8871824020 8871824020 8889124010 9009900930 9009900930 9009900930 9009900930 9009900930 9017906032 9017906032 9048026004
Part # Description Qty Price
87138C - RESISTOR, BLOWER
87138-14060

RA61..LHD..4FC;RA61..LHD..5F..EUG;AA63,RA60,63,TA60..LHD;RA61..5F..XT..(GEN,SAA)

 1
87138-14060

RA61..LHD..4FC;RA61..LHD..5F..EUG;AA63,RA60,63,TA60..LHD;RA61..5F..XT..(GEN,SAA)

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-14190

RA61..LHD..EUG;MA61,RA60,63,TA60..LHD

 1
88501-14190

RA61..LHD..EUG;MA61,RA60,63,TA60..LHD

 1
88510 - UNIT ASSY, COOLER
88510-14330

RA61..LHD..EUG;MA61,RA60,63,TA60..LHD

 1
88510-14330

RA61..LHD..EUG;MA61,RA60,63,TA60..LHD

 1
88515 - VALVE, COOLER EXPANSION
88515-20040

RA61..EUG;MA61,RA60,63,TA60

 1
88515-20040

RA61..EUG;MA61,RA60,63,TA60

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-14060

RA61..LHD..EUG;MA61,RA60,63..LHD

 1
88539-14060

RA61..LHD..EUG;MA61,RA60,63..LHD

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-14330

RA61..RHD;RA61..LHD..4FC;AA63,RA60,63,TA60;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA)

 1
88605-14330

RA61..RHD;RA61..LHD..4FC;AA63,RA60,63,TA60;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA)

 1
88625 - THERMISTOR, COOLER, NO.1
88625-90A00

RA61..EUG;MA61,RA60,63,TA60

 1
88625-90A00

RA61..EUG;MA61,RA60,63,TA60

 1
88645G - SWITCH, PRESSURE
88645-30250

RA61..EUG;MA61,RA60,63,TA60

 1
88645-30250

RA61..EUG;MA61,RA60,63,TA60

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-14150

RA61..EUG;RA60,63,TA60

 1
88650-14150

RA61..EUG;RA60,63,TA60

 1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-14480

RA61..LHD..EUG;MA61,RA60,63,TA60..LHD

 1
88688-14480

RA61..LHD..EUG;MA61,RA60,63,TA60..LHD

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-14820

MA61..LHD..TWC;RA61..LHD..4FC;RA61..LHD..5F..EUG;AA63,RA60,63,TA60..LHD;RA61..5F..XT..(GEN,SAA)

 1
88716-14820

MA61..LHD..TWC;RA61..LHD..4FC;RA61..LHD..5F..EUG;AA63,RA60,63,TA60..LHD;RA61..5F..XT..(GEN,SAA)

 1
Common parts
88578-14020
88578-14050
88578-14060
88718-20340
88718-24020
88891-24010
90099-00930
90179-06032
90480-26004
