RA61L-BLPSSW (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

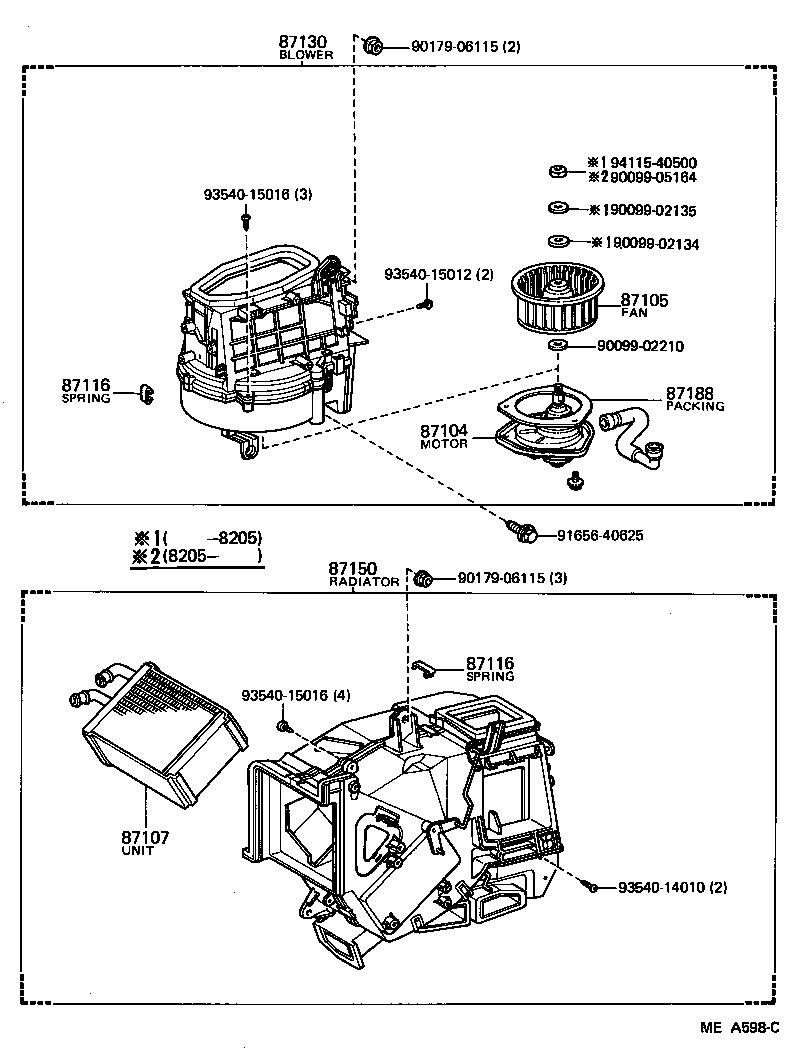

Click highlighted areas on diagram

diagram 87104 87105 87107 87116 87116 87130 87150 87188 9009902134 9009902135 9009902210 9009905164 9017906115 9017906115 9165640625 9354014010 9354015012 9354015016 9354015016 9411540500
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-14100

AA63,MA61,RA60,61,63,TA60..LHD

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-14020

AA63,MA61,RA60,61,63,TA60..LHD

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-14120

RA61..LHD..EUG;RA60,63,TA60..LHD

 1
87116 - SPRING, HEATER CASE FASTENING
87116-14010

AA63,MA61,RA6#,SA63,TA60

 10
87116 - SPRING, HEATER CASE FASTENING
87116-14010

AA63,MA61,RA6#,SA63,TA60

 10
87130 - BLOWER ASSY, HEATER, FRONT
87130-14080

MA61,RA6#,TA60..LHD

 1
87150 - RADIATOR ASSY, HEATER
87150-14210

RA61..LHD..EUG;RA60,63,TA60..LHD

 1
87188 - PACKING, HEATER BLOWER MOTOR
87127-14010

AA63,MA61,RA6#,SA63,TA60

 1
Common parts
90099-02134
90099-02135
90099-02210
90099-05164
90179-06115
91656-40625
93540-14010
93540-15012
93540-15016
94115-40500

(8108- )

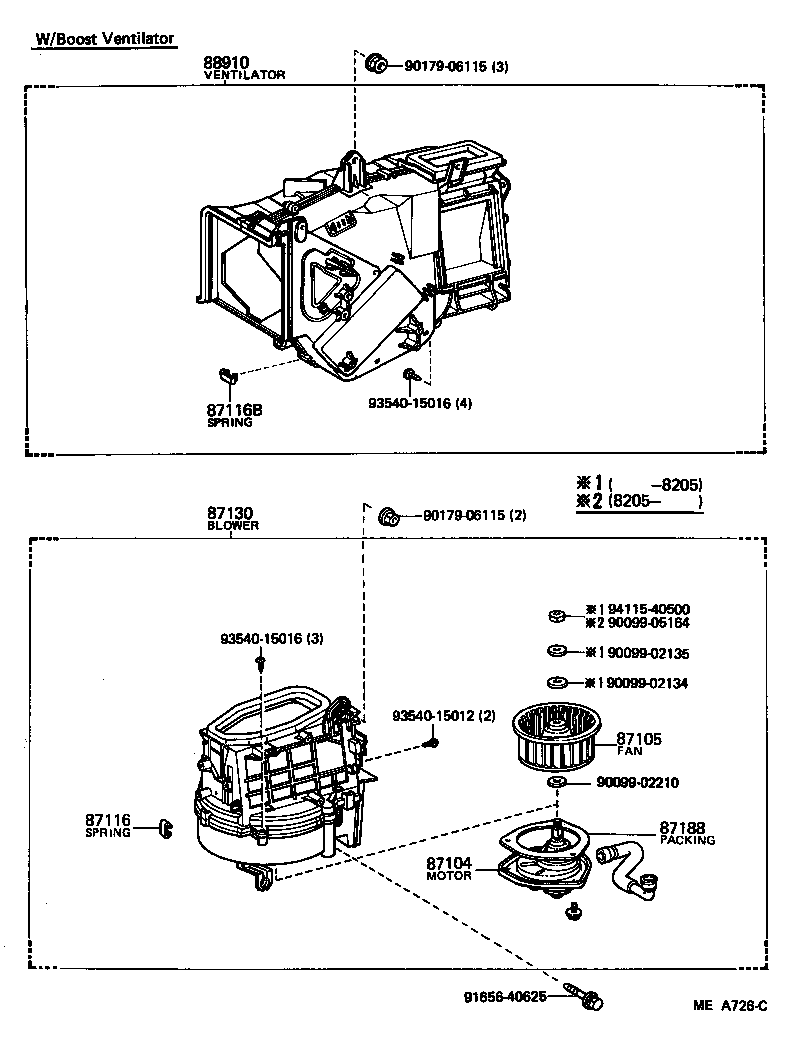

Click highlighted areas on diagram

diagram 87104 87105 87116 87116B 87130 87188 88910 9000902210 9009902134 9009902135 9009905164 9017906115 9017906115 9165640625 9354015012 9354015016 9354015016 9411540500
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-14100

AA63,MA61,RA60,61,63,TA60..LHD

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-14020

AA63,MA61,RA60,61,63,TA60..LHD

 1
87116 - SPRING, HEATER CASE FASTENING
87116-14010

AA63,MA61,RA6#,SA63,TA60

 10
87130 - BLOWER ASSY, HEATER, FRONT
87130-14080

MA61,RA6#,TA60..LHD

 1
87188 - PACKING, HEATER BLOWER MOTOR
87127-14010

AA63,MA61,RA6#,SA63,TA60

 1
Common parts
90009-02210
90099-02134
90099-02135
90099-05164
90179-06115
91656-40625
93540-15012
93540-15016
94115-40500
