RA61L-BLPSSW (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

Click highlighted areas on diagram

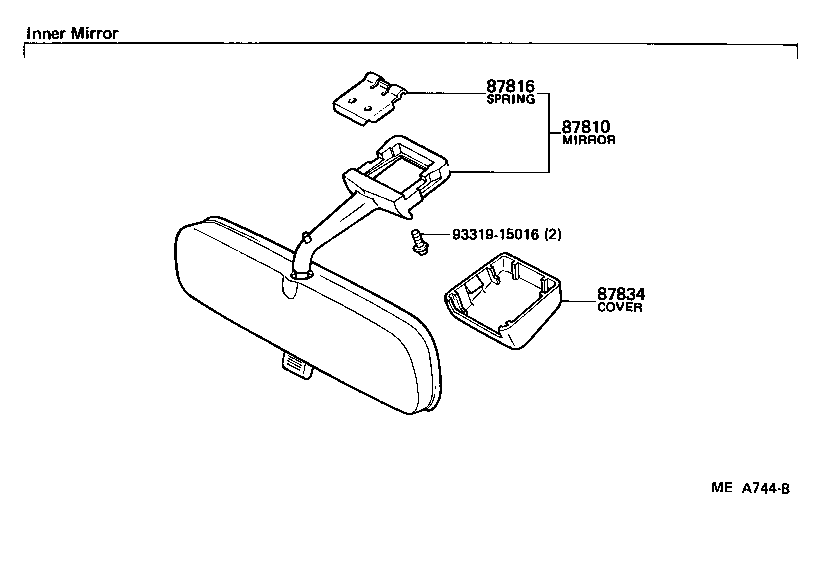

diagram 87810 87816 87834 9331915016
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-1218004

AA63,MA61,RA61,63,TA60..EUR,SA

BLUE,BLUE,TRIM8#

 1
87810-1218006

AA63,MA61,RA61,63,TA60..EUR,SA

DARK BROWN,BROWN,TRIM4#

 1
87810-1218001

AA63,MA61,RA61,63,TA60..EUR,SA

BLACK,BLACK,TRIM2#

 1
87816 - SPRING, INNER REAR VIEW MIRROR
74372-30030

AA63,MA61,RA6#,SA63,TA60

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-2008014

AA63,MA61,RA6#,SA63,TA60

BLUE,BLUE,TRIM8#

 1
87834-2008008

AA63,MA61,RA6#,SA63,TA60

IVORY,IVORY,TRIM2#,3#,4#

 1
Common parts
93319-15016

(8108- )

Click highlighted areas on diagram

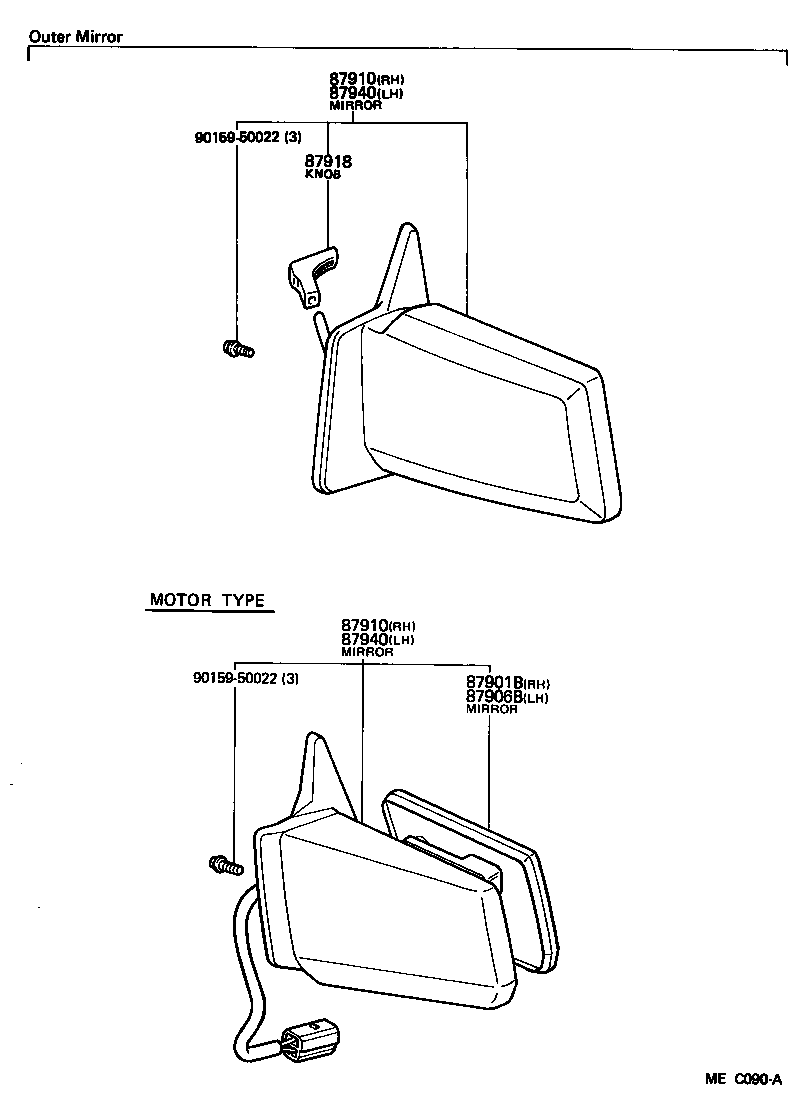

diagram 87901B 87906B 87910 87910 87918 87940 87940 9015950022 9015950022
Part # Description Qty Price
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-14430

AA63,RA60,61,63,TA60..LHD

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-14430

AA63,RA60,61,63,TA60..LHD

 1
87918 - KNOB, CONTROL OUTER MIRROR
87918-14030

MA61,RA6#,TA60..ARL,EUR,GEN,ME

 2
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-14440

AA63,RA60,61,63,TA60..LHD

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-14440

AA63,RA60,61,63,TA60..LHD

 1
Common parts
90159-50022
