RA61L-BLPSSW (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )LB

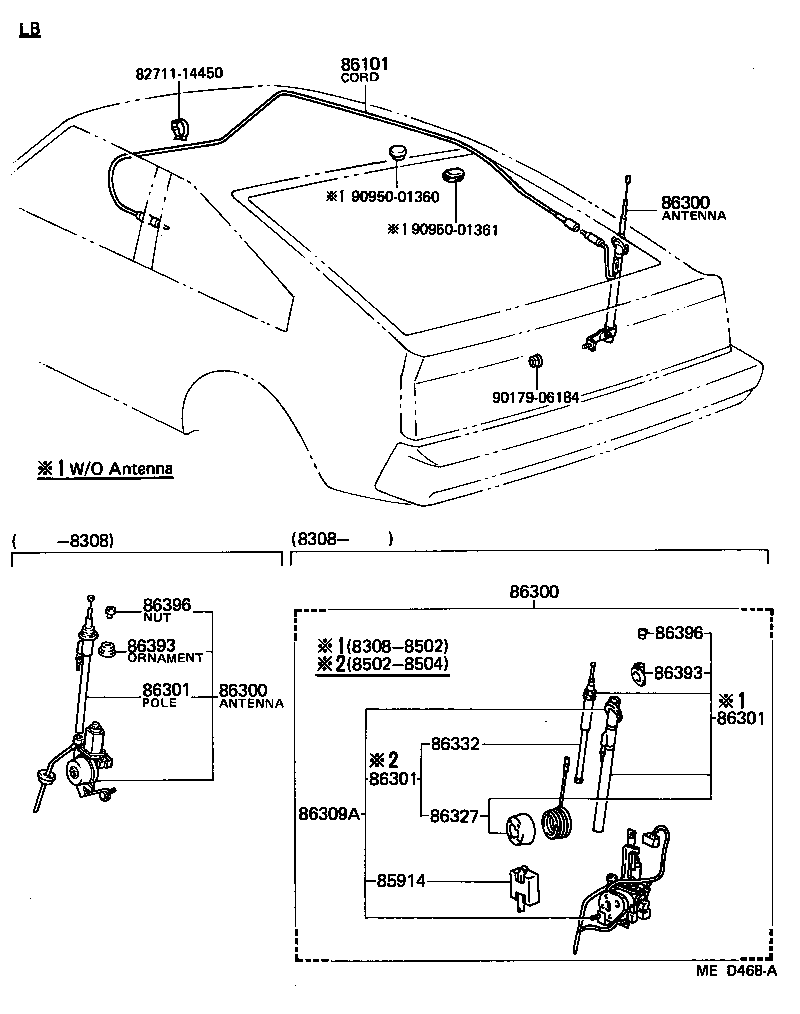

Click highlighted areas on diagram

diagram 8271114450 85914 86101 86300 86300 86300 86301 86301 86301 86309A 86327 86332 86393 86393 86396 86396 9017906184 9095001360 9095001361
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-14330

AA63,MA61,RA6#,SA63,TA60..LB..(ARL,EUR,GEN,ME,SAA)

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-14270

MA61,RA6#,TA60..LB

MOTOR

 1
86300-14240

AA63,RA6#,SA63,TA60..LB

PULL TOP

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-14270

MA61,RA6#,TA60..LB

MOTOR

 1
86300-14240

AA63,RA6#,SA63,TA60..LB

PULL TOP

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-14270

MA61,RA6#,TA60..LB

MOTOR

 1
86300-14240

AA63,RA6#,SA63,TA60..LB

PULL TOP

 1
86301 - POLE SUB-ASSY, ANTENNA
86301-14271

MA61,RA6#,TA60..LB

 1
86301 - POLE SUB-ASSY, ANTENNA
86301-14271

MA61,RA6#,TA60..LB

 1
86301 - POLE SUB-ASSY, ANTENNA
86301-14271

MA61,RA6#,TA60..LB

 1
86393 - ORNAMENT, ANTENNA
86392-14060

AA63,MA61,RA6#,SA63,TA60..LB..(ARL,EUR,GEN,ME,SAA)

 1
86393 - ORNAMENT, ANTENNA
86392-14060

AA63,MA61,RA6#,SA63,TA60..LB..(ARL,EUR,GEN,ME,SAA)

 1
86396 - NUT, ANTENNA
86396-14040

AA63,MA61,RA6#,SA63,TA60..LB..(ARL,EUR,GEN,ME,SAA)

 1
86396 - NUT, ANTENNA
86396-14040

AA63,MA61,RA6#,SA63,TA60..LB..(ARL,EUR,GEN,ME,SAA)

 1
Common parts
82711-14450
90179-06184
90950-01360
90950-01361
