RA61L-BLPSSW (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

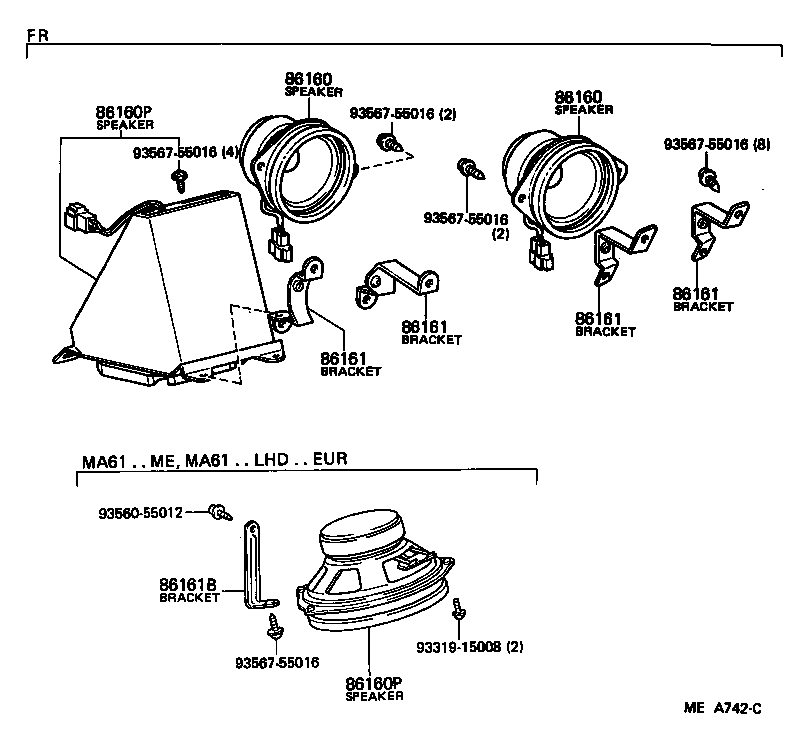

Click highlighted areas on diagram

diagram 86160 86160 86160P 86160P 86161 86161 86161 86161 86161B 9331915008 9356055012 9356755016 9356755016 9356755016 9356755016 9356755016
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-14180

AA63,MA61,RA6#,SA63,TA60..ARL,EUR,GEN,ME,SAA

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-14180

AA63,MA61,RA6#,SA63,TA60..ARL,EUR,GEN,ME,SAA

 2
86160P - SPEAKER ASSY, FRONT NO.2
86160-19315

MA61,RA6#,TA60..LHD

 1
86160P - SPEAKER ASSY, FRONT NO.2
86160-19315

MA61,RA6#,TA60..LHD

 1
86161 - BRACKET, SPEAKER, FRONT NO.1
86219-14080

RA6#,TA60..LHD

ASSIST,INNER

 1
86219-14070

RA6#,TA60..LHD

ASSIST,OUTER

 1
86219-14090

RA6#,TA60..LHD

DRIVER

 2
86161 - BRACKET, SPEAKER, FRONT NO.1
86219-14080

RA6#,TA60..LHD

ASSIST,INNER

 1
86219-14070

RA6#,TA60..LHD

ASSIST,OUTER

 1
86219-14090

RA6#,TA60..LHD

DRIVER

 2
86161 - BRACKET, SPEAKER, FRONT NO.1
86219-14080

RA6#,TA60..LHD

ASSIST,INNER

 1
86219-14070

RA6#,TA60..LHD

ASSIST,OUTER

 1
86219-14090

RA6#,TA60..LHD

DRIVER

 2
86161 - BRACKET, SPEAKER, FRONT NO.1
86219-14080

RA6#,TA60..LHD

ASSIST,INNER

 1
86219-14070

RA6#,TA60..LHD

ASSIST,OUTER

 1
86219-14090

RA6#,TA60..LHD

DRIVER

 2
Common parts
93319-15008
93560-55012
93567-55016

(8108- )

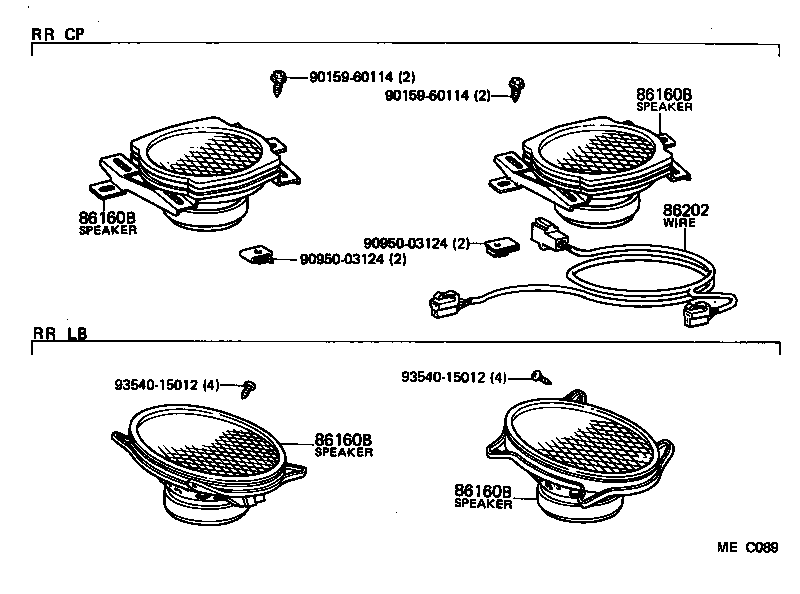

Click highlighted areas on diagram

diagram 86160B 86160B 86160B 86160B 86202 9015960114 9015960114 9095003124 9095003124 9354015012 9354015012
Part # Description Qty Price
86160B - SPEAKER ASSY, REAR
86160-14200

RA61,63,TA60..LB..EUG

 2
86160B - SPEAKER ASSY, REAR
86160-14200

RA61,63,TA60..LB..EUG

 2
86160B - SPEAKER ASSY, REAR
86160-14200

RA61,63,TA60..LB..EUG

 2
86160B - SPEAKER ASSY, REAR
86160-14200

RA61,63,TA60..LB..EUG

 2
Common parts
90159-60114
90950-03124
93540-15012
