RA61L-BLPSSW (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)AA63,RA61,63,TA60

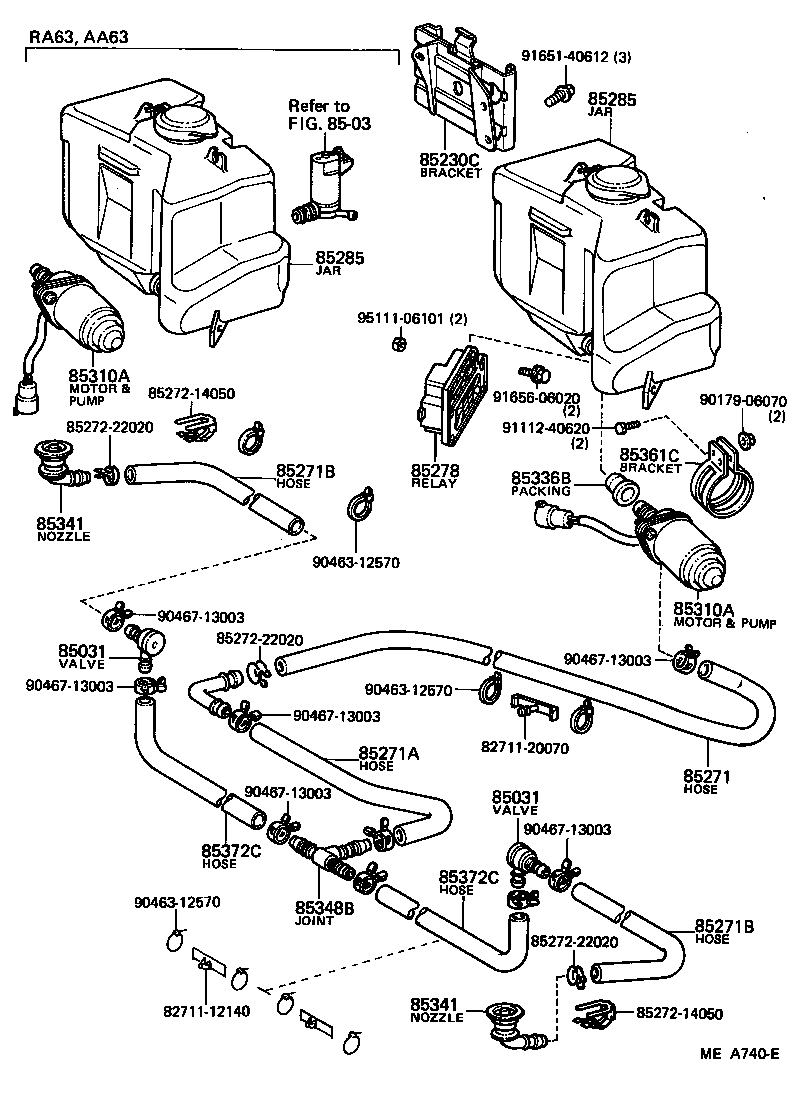

Click highlighted areas on diagram

diagram 8271112140 8271120070 8503 85031 85031 85230C 85271 85271A 85271B 85271B 8527214050 8527214050 8527222020 8527222020 8527222020 85278 85285 85285 85310A 85310A 85336B 85341 85341 85348B 85361C 85372C 85372C 9017906070 9046312570 9046312570 9046312570 9046713003 9046713003 9046713003 9046713003 9046713003 9046713003 9111240620 9165140612 9165606020 9511106101
Part # Description Qty Price
85031 - VALVE, HEADLAMP CLEANER WASHER HOSE
85031-30020

AA63,MA61,RA61,63,TA60..EUR

 2
85031 - VALVE, HEADLAMP CLEANER WASHER HOSE
85031-30020

AA63,MA61,RA61,63,TA60..EUR

 2
85230C - BRACKET ASSY, HEADLAMP CLEANER
85036-14140

AA63,RA61,63,TA60..LHD..EUR

 1
85271 - HOSE, HEADLAMP CLEANER, NO.1
85271-24010

RA61,63,TA60..EUR

 1
85271A - HOSE, HEADLAMP CLEANER, NO.2
85376-14301

AA63,RA61,63,TA60..EUR

L=75

 1
85278 - RELAY ASSY, HEADLAMP CLEANER CONTROL
85276-20020

MA61,RA61,63,TA60..EUR

 1
85285 - JAR, HEADLAMP CLEANER WASHER
85330-14290

RA61,TA60..LHD..EUR

 1
85285 - JAR, HEADLAMP CLEANER WASHER
85330-14290

RA61,TA60..LHD..EUR

 1
85310A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER
85310-22070

AA63,MA61,RA61,63,TA60..EUR

 1
85310A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER
85310-22070

AA63,MA61,RA61,63,TA60..EUR

 1
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85035-14250

RA61,63,TA60..EUR

 2
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85035-14250

RA61,63,TA60..EUR

 2
85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2
85352-12010

AA63,MA61,RA61,63,TA60..EUR

 1
85372C - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO VALVE)
85271-20020

AA63,RA61,63,TA60..EUR

L=500,RHD=LH,LHD=RH

 1
85343-12050

AA63,RA61,63,TA60..EUR

RHD=RH,LHD=LH

 1
85372C - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO VALVE)
85271-20020

AA63,RA61,63,TA60..EUR

L=500,RHD=LH,LHD=RH

 1
85343-12050

AA63,RA61,63,TA60..EUR

RHD=RH,LHD=LH

 1
Common parts
82711-12140
82711-20070
85272-14050
85272-22020
90179-06070
90463-12570
90467-13003
91112-40620
91651-40612
91656-06020
95111-06101
Linked diagrams
8503
