RA61L-BLPSSW (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

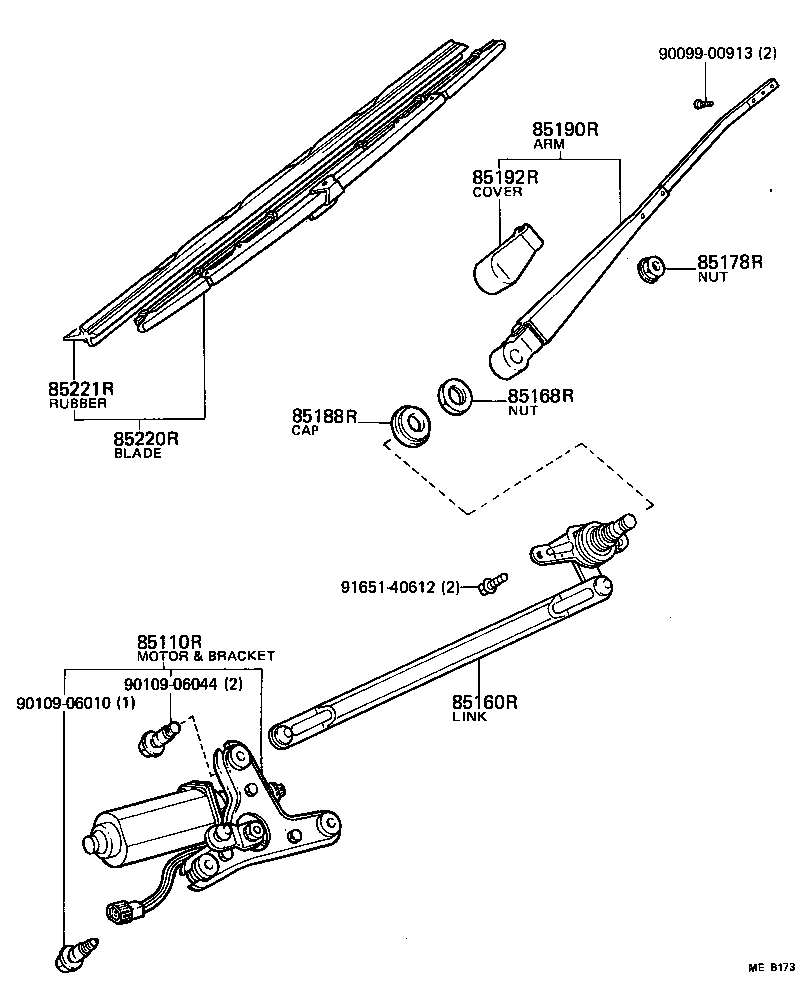

Click highlighted areas on diagram

diagram 85110R 85160R 85168R 85178R 85188R 85190R 85192R 85220R 85221R 9009900913 9010906010 9010906044 9165140612
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85120-14030

AA63,MA61,RA6#,SA63,TA60..LB

 1
85160R - LINK ASSY, REAR WIPER
85160-14290

MA61,RA6#,TA60..LB

 1
85168R - NUT, REAR WIPER LINK PIVOT, NO.1
90099-05157

AA63,MA61,RA6#,SA63,TA60..LB

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90179-06158

AA63,MA61,RA6#,SA63,TA60..LB

 1
85188R - CAP, REAR WIPER PIVOT, NO.1
85179-14220

AA63,MA61,RA6#,SA63,TA60..LB

 1
85190R - ARM ASSY, REAR WIPER
85190-14390

MA61,RA6#,TA60..LB

 1
85192R - COVER, REAR WIPER ARM
85192-14070

MA61,RA6#,TA60..LB

 1
85220R - BLADE ASSY, REAR WIPER
85220-14340

MA61,RA60,61,63,TA60..LB

 1
85221R - BLADE, REAR WIPER
85221-30080

MA61,RA6#,TA60..LB

 1
Common parts
90099-00913
90109-06010
90109-06044
91651-40612
