RA61L-BLPSSW (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

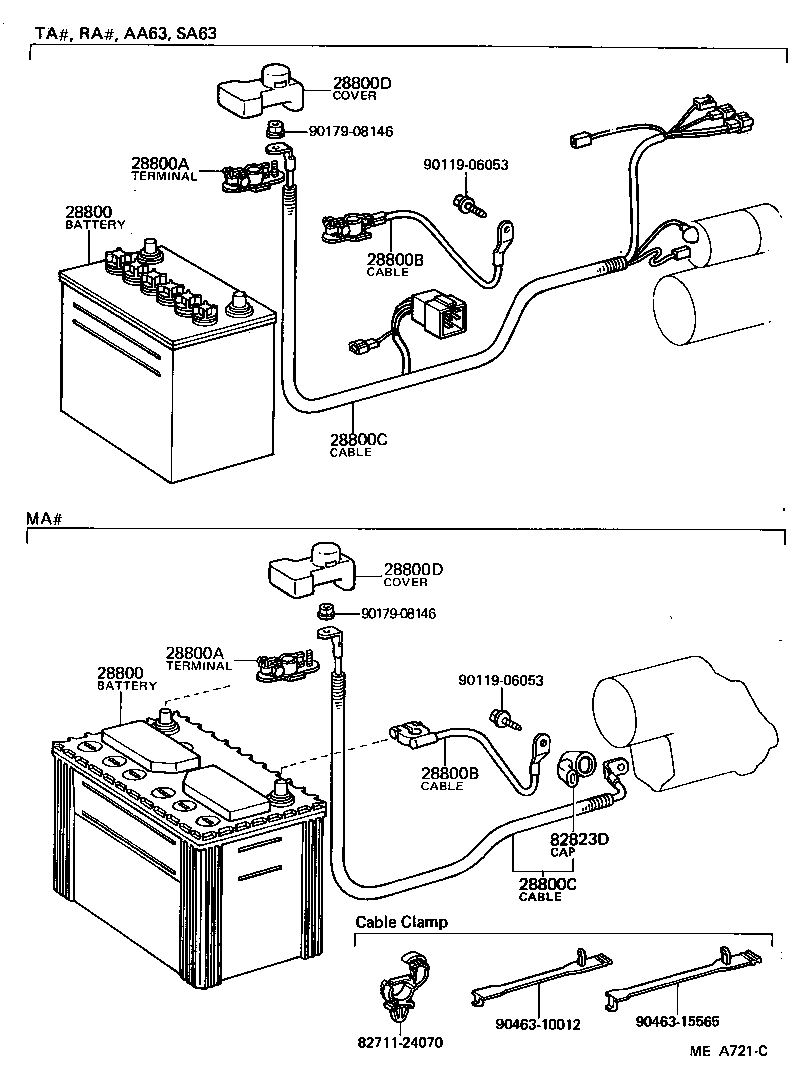

Click highlighted areas on diagram

diagram 28800 28800 28800A 28800A 28800B 28800B 28800C 28800C 28800D 28800D 8271124070 82823D 9011906053 9011906053 9017908146 9017908146 9046310012 9046315565
Part # Description Qty Price
28800 - BATTERY
28800-33071

21R..RA61;21R#..RA60

32C24R,N40(12V 40AH-20HR)

 1
28800-15010

21R#..RA60,61..EUR,GEN

55D23R,55D23R-MF(12V 60AH-20HR)

 1
28800 - BATTERY
28800-33071

21R..RA61;21R#..RA60

32C24R,N40(12V 40AH-20HR)

 1
28800-15010

21R#..RA60,61..EUR,GEN

55D23R,55D23R-MF(12V 60AH-20HR)

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05022

21R#,22REC,18RG,4AGE,2SC,2T#..AA63,RA6#,SA63,TA60

N40,N40L,55D23R-MF,55D23L-MF

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05022

21R#,22REC,18RG,4AGE,2SC,2T#..AA63,RA6#,SA63,TA60

N40,N40L,55D23R-MF,55D23L-MF

 1
28800B - CABLE, BATTERY TO GROUND
90982-02136

21R#,18RG,2T#..RA6#,TA60

N40,N40L,55D23R-MF,55D23L-MF

 1
28800B - CABLE, BATTERY TO GROUND
90982-02136

21R#,18RG,2T#..RA6#,TA60

N40,N40L,55D23R-MF,55D23L-MF

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-14061

21R#..RA60,61

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-14061

21R#..RA60,61

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-24010

21R#,22REC,18RG,4AGE,5MGE,2SC,2T#..AA63,MA61,RA6#,SA63,TA60

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-24010

21R#,22REC,18RG,4AGE,5MGE,2SC,2T#..AA63,MA61,RA6#,SA63,TA60

 1
Common parts
82711-24070
90119-06053
90179-08146
90463-10012
90463-15565
