RA61L-BLPSSW (1981)
Toyota Celica
Production
Aug 1981
-
Aug 1982
Engine
21R
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

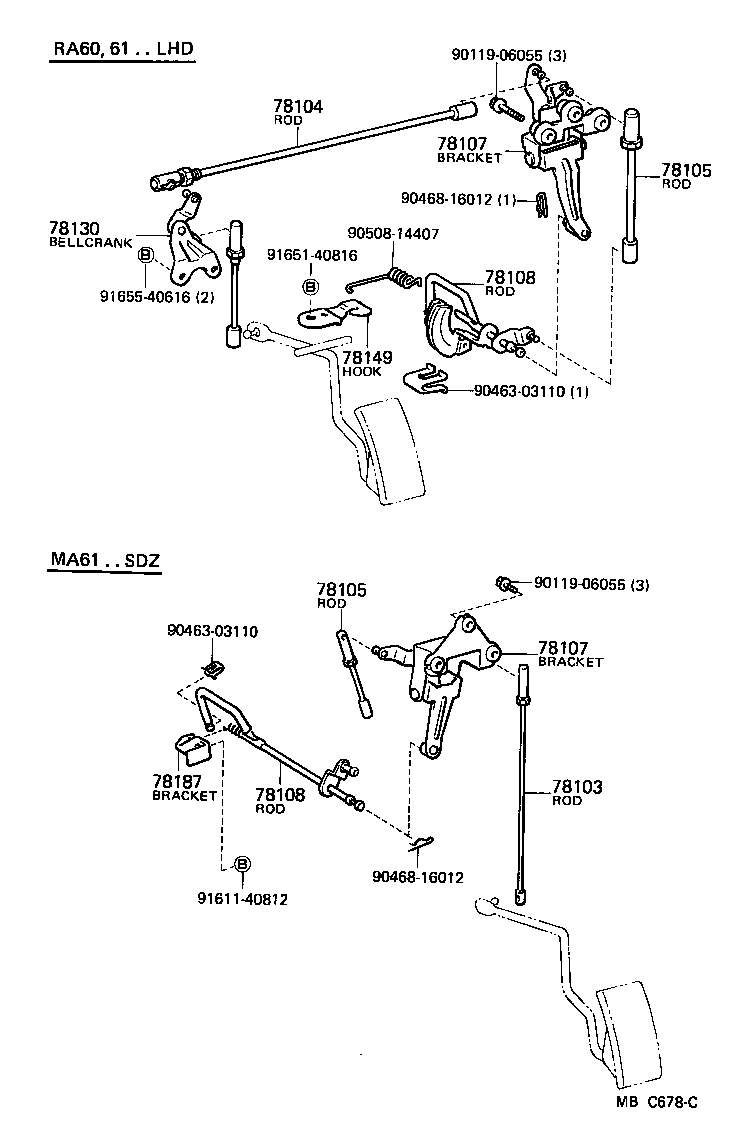

(8108-8507)RA60,61..LHD ; (8308- )MA61..SDZ
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78103 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1 | ||||
| 78103-14170 |
RA60,61..LHD |
1 | ||
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78104-14180 |
RA60,61..LHD |
1 | ||
| 78105 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3 | ||||
| 78105-14280 |
RA60,61..LHD |
1 | ||
| 78105 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3 | ||||
| 78105-14280 |
RA60,61..LHD |
1 | ||
| 78107 - BRACKET SUB-ASSY, ACCELERATOR TORQUE ROD | ||||
| 78170-14160 |
RA60,61..LHD |
1 | ||
| 78107 - BRACKET SUB-ASSY, ACCELERATOR TORQUE ROD | ||||
| 78170-14160 |
RA60,61..LHD |
1 | ||
| 78108 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.4 | ||||
| 78106-14240 |
RA60,61..LHD..4FC |
1 | ||
| 78108 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.4 | ||||
| 78106-14240 |
RA60,61..LHD..4FC |
1 | ||
| 78130 - BELLCRANK ASSY, ACCELERATOR | ||||
| 78015-14100 |
RA60,61..LHD..4FC |
1 | ||
| 78149 - HOOK, ACCELERATOR TORQUE ROD SPRING | ||||
| 78149-20060 |
RA60,61..LHD |
1 | ||
| Common parts | ||||
| 90119-06055 | ||||
| 90463-03110 | ||||
| 90468-16012 | ||||
| 90508-14407 | ||||
| 91611-40812 | ||||
| 91651-40816 | ||||
| 91655-40616 | ||||
(8108- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-14330 |
RA60,61..LHD..4FC |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-14330 |
RA60,61..LHD..4FC |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18024 |
RA60,61..LHD..4FC |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18024 |
RA60,61..LHD..4FC |
1 | ||
| 78110C - BUSH (FOR ACCELERATOR PEDAL ROD) | ||||
| 90386-08021 |
RA60,61..LHD |
2 | ||
| 78110C - BUSH (FOR ACCELERATOR PEDAL ROD) | ||||
| 90386-08021 |
RA60,61..LHD |
2 | ||
| 78110C - BUSH (FOR ACCELERATOR PEDAL ROD) | ||||
| 90386-08021 |
RA60,61..LHD |
2 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-12100 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-12100 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-23003 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-23003 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 78198 - BOOT, ACCELERATOR CONNECTING ROD | ||||
| 78199-14020 |
RA60,61..LHD |
1 | ||
| Common parts | ||||
| 91651-40620 | ||||
| 91655-40616 | ||||
| 93381-16012 | ||||
| 94611-10800 | ||||
| 95381-02015 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
