RA61L-BLPSSW (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

Click highlighted areas on diagram

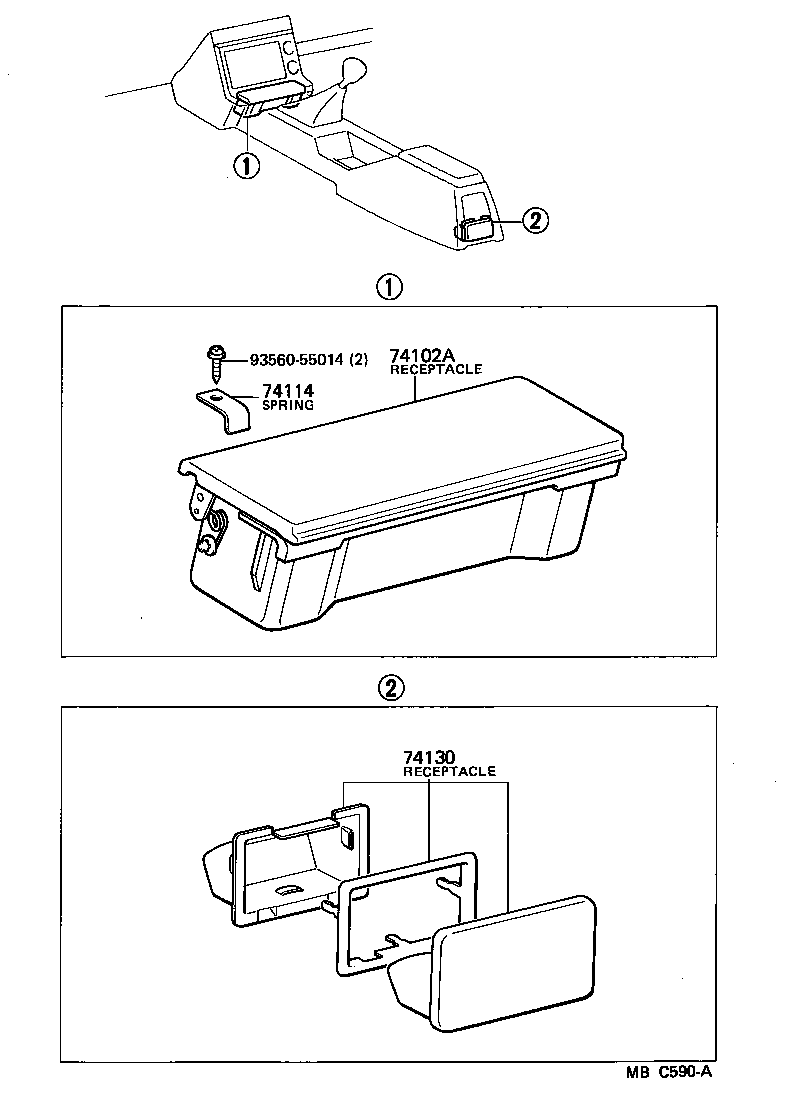

diagram 74102A 74114 74130 9356055014
Part # Description Qty Price
74102A - RECEPTACLE ASSY, FRONT ASH
74102-14110

MA61,RA61,63,TA60..EUR

 1
74102-14090

MA61,RA61,63,TA60..LHD..EUG

SOFT PAD

 1
74102-14091

MA61,RA61,63,TA60..LHD..EUG

SOFT PAD

 1
74114 - SPRING, FRONT ASH RECEPTACLE PROTECTOR
74114-14020

AA63,MA61,RA6#,SA63,TA60

 2
74130 - RECEPTACLE ASSY, REAR ASH
74130-1204006

AA63,RA6#,SA63,TA60

DARK BROWN,BROWN,TRIM4#

 1
74130-1204014

AA63,MA61,RA6#,SA63,TA60

BLUE,BLUE,TRIM8#

 1
74130-1204001

AA63,MA61,RA6#,SA63,TA60

BLACK,BLACK,TRIM2#

 1
Common parts
93560-55014
