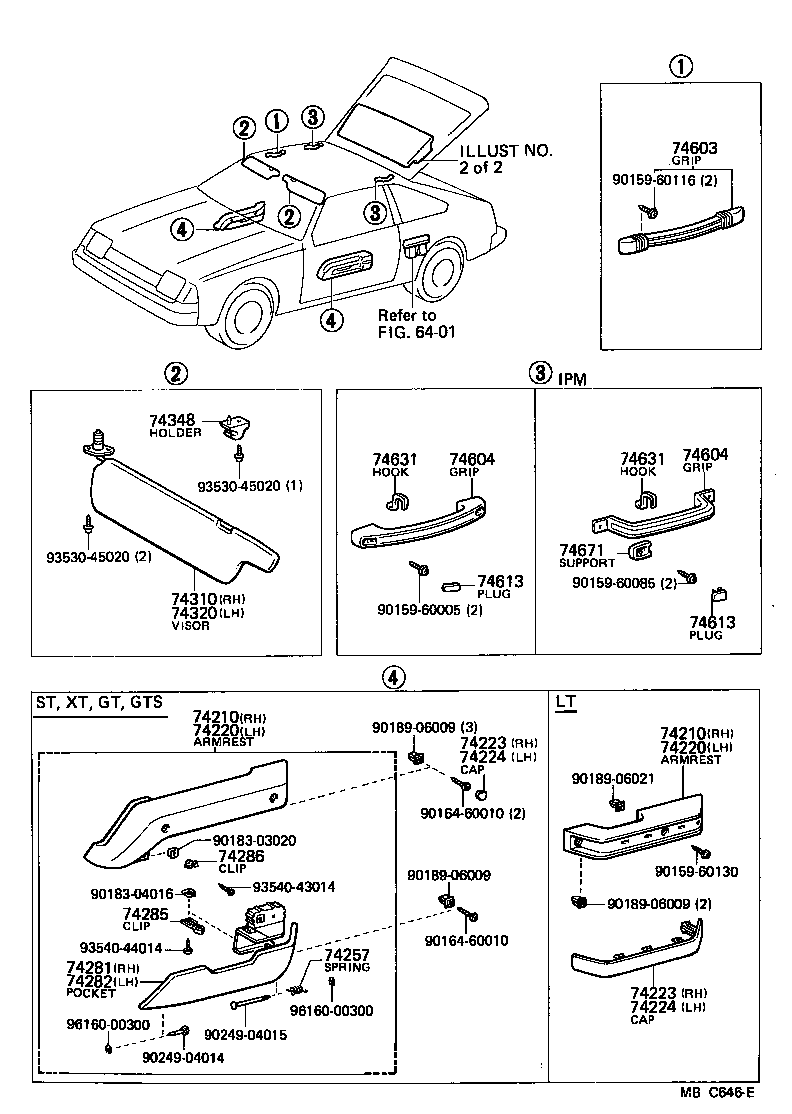

RA61L-BLPSSW (1981)
Toyota Celica
(8108- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-1408004 |
AA63,RA6#,SA63,TA60..GT,GTS,ST,XT BLUE,BLUE,TRIM8# |
1 | ||
| 74210-1408001 |
AA63,RA6#,SA63,TA60..GT,GTS,ST,XT BLACK,BLACK,TRIM2# |
1 | ||
| 74210-1408006 |
AA63,RA6#,SA63,TA60..GT,GTS,ST,XT DARK BROWN,BROWN,TRIM4# |
1 | ||
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-1408004 |
AA63,RA6#,SA63,TA60..GT,GTS,ST,XT BLUE,BLUE,TRIM8# |
1 | ||
| 74210-1408001 |
AA63,RA6#,SA63,TA60..GT,GTS,ST,XT BLACK,BLACK,TRIM2# |
1 | ||
| 74210-1408006 |
AA63,RA6#,SA63,TA60..GT,GTS,ST,XT DARK BROWN,BROWN,TRIM4# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-1408004 |
AA63,RA6#,SA63,TA60..GT,GTS,ST,XT BLUE,BLUE,TRIM8# |
1 | ||
| 74220-1408006 |
AA63,RA6#,SA63,TA60..GT,GTS,ST,XT DARK BROWN,BROWN,TRIM4# |
1 | ||
| 74220-1408001 |
AA63,RA6#,SA63,TA60..GT,GTS,ST,XT BLACK,BLACK,TRIM2# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-1408004 |
AA63,RA6#,SA63,TA60..GT,GTS,ST,XT BLUE,BLUE,TRIM8# |
1 | ||
| 74220-1408006 |
AA63,RA6#,SA63,TA60..GT,GTS,ST,XT DARK BROWN,BROWN,TRIM4# |
1 | ||
| 74220-1408001 |
AA63,RA6#,SA63,TA60..GT,GTS,ST,XT BLACK,BLACK,TRIM2# |
1 | ||
| 74223 - CAP, DOOR ARMREST, RH | ||||
| 74223-1402001 |
AA63,RA6#,SA63,TA60..GT,GTS,ST,XT BLACK,BLACK,TRIM2# |
2 | ||
| 74223-1402004 |
AA63,RA6#,SA63,TA60..GT,GTS,ST,XT BLUE,BLUE,TRIM8# |
2 | ||
| 74223-1402006 |
AA63,RA6#,SA63,TA60..GT,GTS,ST,XT DARK BROWN,BROWN,TRIM4# |
2 | ||
| 74223 - CAP, DOOR ARMREST, RH | ||||
| 74223-1402001 |
AA63,RA6#,SA63,TA60..GT,GTS,ST,XT BLACK,BLACK,TRIM2# |
2 | ||
| 74223-1402004 |
AA63,RA6#,SA63,TA60..GT,GTS,ST,XT BLUE,BLUE,TRIM8# |
2 | ||
| 74223-1402006 |
AA63,RA6#,SA63,TA60..GT,GTS,ST,XT DARK BROWN,BROWN,TRIM4# |
2 | ||
| 74224 - CAP, DOOR ARMREST, LH | ||||
| 74223-1402001 |
AA63,RA6#,SA63,TA60..GT,GTS,ST,XT BLACK,BLACK,TRIM2# |
2 | ||
| 74223-1402004 |
AA63,RA6#,SA63,TA60..GT,GTS,ST,XT BLUE,BLUE,TRIM8# |
2 | ||
| 74223-1402006 |
AA63,RA6#,SA63,TA60..GT,GTS,ST,XT DARK BROWN,BROWN,TRIM4# |
2 | ||
| 74224 - CAP, DOOR ARMREST, LH | ||||
| 74223-1402001 |
AA63,RA6#,SA63,TA60..GT,GTS,ST,XT BLACK,BLACK,TRIM2# |
2 | ||
| 74223-1402004 |
AA63,RA6#,SA63,TA60..GT,GTS,ST,XT BLUE,BLUE,TRIM8# |
2 | ||
| 74223-1402006 |
AA63,RA6#,SA63,TA60..GT,GTS,ST,XT DARK BROWN,BROWN,TRIM4# |
2 | ||
| 74257 - SPRING, ARMREST, NO.1 | ||||
| 74257-14030 |
AA63,RA6#,SA63,TA60..GT,GTS,ST,XT RH |
1 | ||
| 74258-14010 |
AA63,RA6#,SA63,TA60..GT,GTS,ST,XT LH |
1 | ||
| 74281 - POCKET, DOOR ARMREST, RH | ||||
| 74281-1402001 |
AA63,RA6#,SA63,TA60..GT,GTS,ST,XT BLACK,BLACK,TRIM2# |
1 | ||
| 74281-1402004 |
AA63,RA6#,SA63,TA60..GT,GTS,ST,XT BLUE,BLUE,TRIM8# |
1 | ||
| 74281-1402006 |
AA63,RA6#,SA63,TA60..GT,GTS,ST,XT DARK BROWN,BROWN,TRIM4# |
1 | ||
| 74282 - POCKET, DOOR ARMREST, LH | ||||
| 74282-1402001 |
AA63,RA6#,SA63,TA60..GT,GTS,ST,XT BLACK,BLACK,TRIM2# |
1 | ||
| 74282-1402006 |
AA63,RA6#,SA63,TA60..GT,GTS,ST,XT DARK BROWN,BROWN,TRIM4# |
1 | ||
| 74282-1402004 |
AA63,RA6#,SA63,TA60..GT,GTS,ST,XT BLUE,BLUE,TRIM8# |
1 | ||
| 74285 - CLIP, DOOR ARMREST POCKET | ||||
| 74285-1401006 |
AA63,RA6#,SA63,TA60..GT,GTS,ST,XT DARK BROWN,BROWN,TRIM4# |
2 | ||
| 74285-1401004 |
AA63,RA6#,SA63,TA60..GT,GTS,ST,XT BLUE,BLUE,TRIM8# |
2 | ||
| 74285-1401001 |
AA63,RA6#,SA63,TA60..GT,GTS,ST,XT BLACK,BLACK,TRIM2# |
2 | ||
| 74286 - CLIP, DOOR ARMREST POCKET, NO.2 | ||||
| 74286-14010 |
AA63,RA6#,SA63,TA60..GT,GTS,ST,XT |
2 | ||
| 74310 - VISOR ASSY, RH | ||||
| 74310-1419008 |
RA61..LHD..ST..EUG;RA60,63,TA60..LHD..(GT,ST) IVORY,IVORY,TRIM2#,4# |
1 | ||
| 74310-1419004 |
RA61..LHD..ST..EUG;RA60,63,TA60..LHD..(GT,ST) BLUE,BLUE,TRIM8# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74310-1417008 |
RA61..LHD..ST..EUG;RA60,63,TA60..LHD..(GT,LT,ST) W/HOLDER,IVORY,IVORY,TRIM2#,4# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-1201008 |
AA63,RA6#,SA63,TA60 IVORY,IVORY,TRIM2#,4# |
2 | ||
| 74348-1201014 |
AA63,MA61,RA6#,SA63,TA60 BLUE,BLUE,TRIM8# |
2 | ||
| 74603 - GRIP SUB-ASSY, ASSIST, FRONT | ||||
| 74610-1403008 |
AA63,RA6#,SA63,TA60 IVORY,IVORY,TRIM2#,4# |
1 | ||
| 74610-1403004 |
AA63,MA61,RA6#,SA63,TA60 BLUE,BLUE,TRIM8# |
1 | ||
| 74604 - GRIP SUB-ASSY, ASSIST, REAR | ||||
| 74610-2003008 |
AA63,MA61,RA6#,SA63,TA60 IVORY,IVORY,TRIM2#,3#,4# |
2 | ||
| 74603-2202008 |
AA63,MA61,RA61,63,TA60..EUG *IPM,IVORY,IVORY,TRIM2#,3#,4# |
2 | ||
| 74610-2003004 |
AA63,MA61,RA6#,SA63,TA60 BLUE,BLUE,TRIM8# |
2 | ||
| 74603-2202014 |
AA63,MA61,RA61,63,TA60..EUG *IPM,BLUE,BLUE,TRIM8# |
2 | ||
| 74604 - GRIP SUB-ASSY, ASSIST, REAR | ||||
| 74610-2003008 |
AA63,MA61,RA6#,SA63,TA60 IVORY,IVORY,TRIM2#,3#,4# |
2 | ||
| 74603-2202008 |
AA63,MA61,RA61,63,TA60..EUG *IPM,IVORY,IVORY,TRIM2#,3#,4# |
2 | ||
| 74610-2003004 |
AA63,MA61,RA6#,SA63,TA60 BLUE,BLUE,TRIM8# |
2 | ||
| 74603-2202014 |
AA63,MA61,RA61,63,TA60..EUG *IPM,BLUE,BLUE,TRIM8# |
2 | ||
| 74613 - PLUG, ASSIST GRIP | ||||
| 74617-2201008 |
AA63,MA61,RA61,63,TA60..EUG *IPM,IVORY,IVORY,TRIM2#,3#,4# |
6 | ||
| 74617-1401008 |
AA63,RA6#,SA63,TA60 IVORY,IVORY,TRIM2#,4# |
6 | ||
| 74617-2201024 |
AA63,MA61,RA61,63,TA60..EUG *IPM,BLUE,BLUE,TRIM8# |
6 | ||
| 74617-1401014 |
AA63,MA61,RA6#,SA63,TA60 BLUE,BLUE,TRIM8# |
6 | ||
| 74613 - PLUG, ASSIST GRIP | ||||
| 74617-2201008 |
AA63,MA61,RA61,63,TA60..EUG *IPM,IVORY,IVORY,TRIM2#,3#,4# |
6 | ||
| 74617-1401008 |
AA63,RA6#,SA63,TA60 IVORY,IVORY,TRIM2#,4# |
6 | ||
| 74617-2201024 |
AA63,MA61,RA61,63,TA60..EUG *IPM,BLUE,BLUE,TRIM8# |
6 | ||
| 74617-1401014 |
AA63,MA61,RA6#,SA63,TA60 BLUE,BLUE,TRIM8# |
6 | ||
| 74631 - HOOK, COAT, A | ||||
| 74631-1401008 |
AA63,RA6#,SA63,TA60 IVORY,IVORY,TRIM2#,4# |
1 | ||
| 74631-1401014 |
AA63,MA61,RA6#,SA63,TA60 BLUE,BLUE,TRIM8# |
1 | ||
| 74631 - HOOK, COAT, A | ||||
| 74631-1401008 |
AA63,RA6#,SA63,TA60 IVORY,IVORY,TRIM2#,4# |
1 | ||
| 74631-1401014 |
AA63,MA61,RA6#,SA63,TA60 BLUE,BLUE,TRIM8# |
1 | ||
| 74671 - SUPPORT, ASSIST GRIP | ||||
| 74671-2201008 |
AA63,MA61,RA61,63,TA60..EUG *IPM,IVORY,IVORY,TRIM2#,3#,4# |
6 | ||
| 74671-2201024 |
AA63,MA61,RA61,63,TA60..EUG *IPM,BLUE,BLUE,TRIM8# |
6 | ||
| Common parts | ||||
| 90159-60005 | ||||
| 90159-60085 | ||||
| 90159-60116 | ||||
| 90159-60130 | ||||
| 90164-60010 | ||||
| 90183-03020 | ||||
| 90183-04016 | ||||
| 90189-06009 | ||||
| 90189-06021 | ||||
| 90249-04014 | ||||
| 90249-04015 | ||||
| 93530-45020 | ||||
| 93540-43014 | ||||
| 93540-44014 | ||||
| 96160-00300 | ||||
| Linked diagrams | ||||
| 6401 | ||||

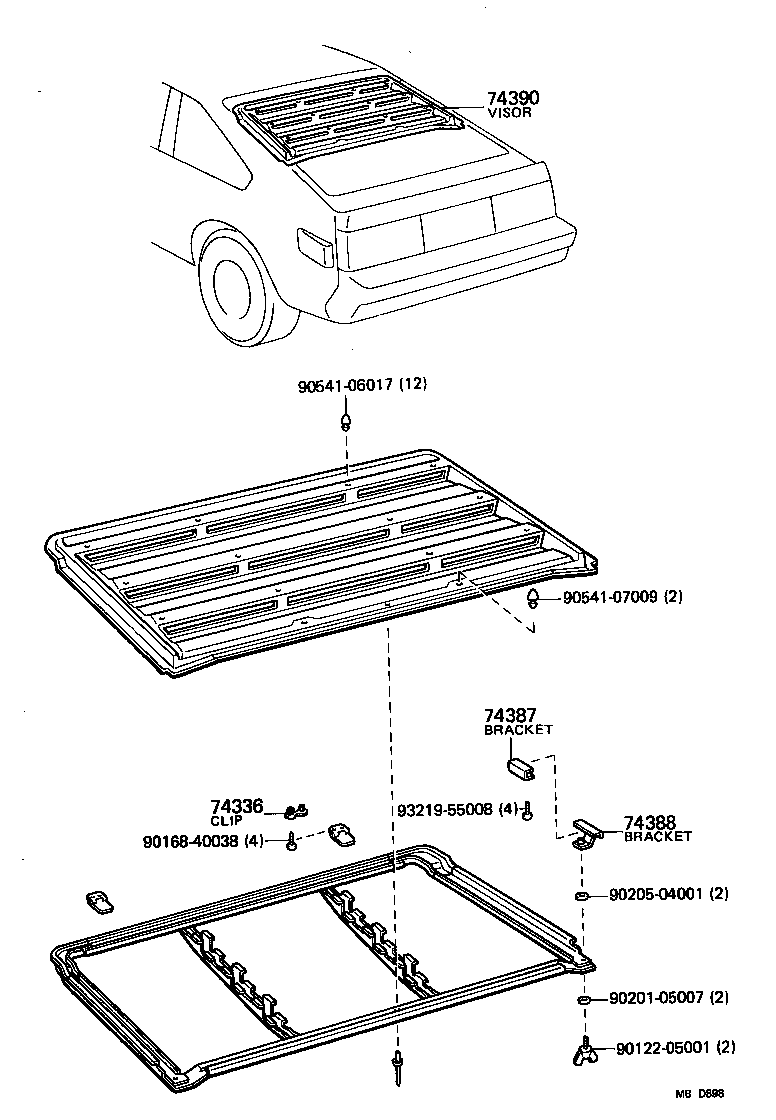

(8108- )LB..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74336 - CLIP, VISOR ARM SET | ||||
| 74336-14020 |
AA63,MA61,RA61,63,TA60..EUR |
2 | ||
| 74387 - BRACKET, REAR VISOR, NO.1 | ||||
| 74387-14010 |
AA63,MA61,RA61,63,TA60..EUR |
2 | ||
| 74388 - BRACKET, REAR VISOR, NO.2 | ||||
| 74388-14010 |
AA63,MA61,RA61,63,TA60..EUR |
2 | ||
| 74390 - VISOR ASSY, REAR, INNER | ||||
| 74390-19025 |
AA63,MA61,RA61,63,TA60..EUR |
1 | ||
| Common parts | ||||
| 90122-05001 | ||||
| 90168-40038 | ||||
| 90201-05007 | ||||
| 90205-04001 | ||||
| 90541-06017 | ||||
| 90541-07009 | ||||
| 93219-55008 | ||||
